New Piston Kit 95Mm Compatible With Yamaha Grizzly 600 1998-2001 Grizzly Hunter 2001 Grizzly Hunting

CROSS REFERENCE PART NUMBERS:
• Yamaha 34K-11631-02-Y0
• Yamaha 34L-11631-02-Y0
• Yamaha 3TB-11631-00-Y0
• Pro-X 01.2601.000

ITEM SPECIFICATIONS:

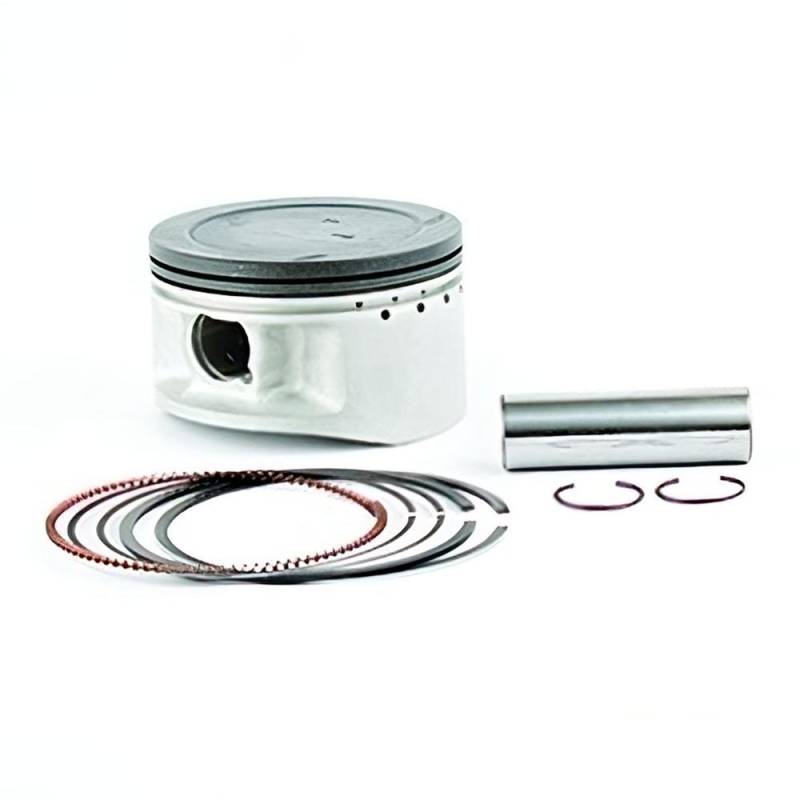

• Component: Piston Kit (Standard Bore)
• Piston Size: 95mm (Standard Bore)
• Bore x Stroke: 95.0mm x 84mm (Standard)
• Displacement: 595cc (Single-Cylinder)
• Compression Ratio: 8.5:1
• Kit Contents: Piston, Rings, Wrist Pin, Circlips
• Material: Forged Aluminum Alloy Piston
• Engine: Air-Cooled 4-Stroke SOHC
• Model Years: 1984-2004 (Yamaha TT/XT 600 and Grizzly 600)

COMPATIBLE MODELS:
Yamaha 595cc Motorcycles:
• TT 600 (1984-2004) / XT 600 / XT 600 Tenere (1984-2003)
Yamaha 595cc ATVs:
• Grizzly 600 (1998-2001) / Grizzly Hunter 600 (2001) / Grizzly Hunting 600 (2000)

PRODUCT DETAILS:
This standard bore piston kit is designed for the Yamaha 595cc air-cooled 4-stroke SOHC single-cylinder engine used across the TT 600, XT 600, and Grizzly 600 model families. The 95mm piston provides factory-specified piston-to-wall clearance for optimal ring seal and compression in standard bore cylinders. Each kit includes forged aluminum alloy piston, precision-fitted piston rings, hardened wrist pin, and retaining circlips for the Yamaha 595cc engine. Manufactured using premium forged aluminum alloy and precision machined on CNC equipment for consistent dimensions and reliable performance in both motorcycle and ATV applications.
