CROSS REFERENCE PART NUMBERS:
• Yamaha 1UY-11636-01-00 (0.5mm Oversize)
• Yamaha 5UH-11636-00-00 (0.5mm Oversize)
• Pro-X 01.2487.050
ITEM SPECIFICATIONS:

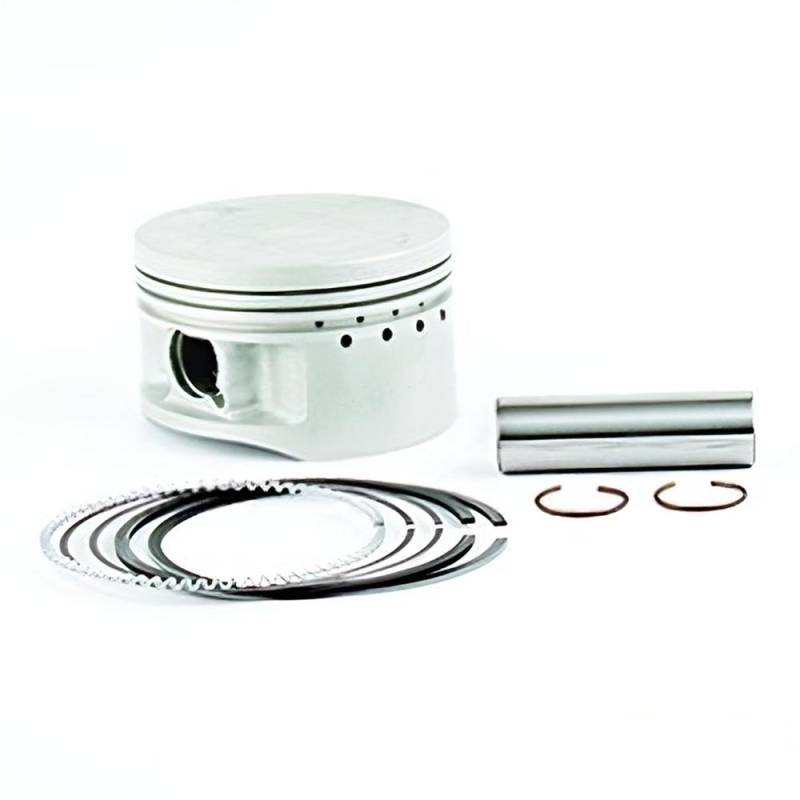

• Component: Piston Kit (0.5mm Oversize)
• Piston Size: 83.5mm (0.5mm Over Standard 83.0mm)
• Standard Bore x Stroke: 83.0mm x 64.5mm
• Displacement: 348cc
• Compression Ratio: 9.2:1
• Kit Contents: Piston, Ring, Wrist Pin, Circlips
• Material: Forged Aluminum Alloy Piston
• Engine: 348cc Air-Cooled 4-Stroke SOHC 2-Valve Single-Cylinder
• Model Years: 1987-2014 (Various Yamaha 350 ATV)
COMPATIBLE MODELS:
Yamaha 350cc ATV Models:
• Warrior 350 YFM350X (1987-2004)
• Raptor 350 YFM350R (2005-2013)
• Bruin 350 YFM350BA (2004-2006)
• Grizzly 350 YFM350G (2007-2014)
• Wolverine 350 YFM350FX (1995-2009)
PRODUCT DETAILS:
This 0.5mm oversize piston kit is designed for the Yamaha Warrior 350, Raptor 350, Grizzly 350, Wolverine 350, and Bruin 350 with the 348cc air-cooled SOHC engine when the standard 83mm bore has been bored to 83.5mm. The 83.5mm oversize piston provides proper piston-to-wall clearance in the bored cylinder for optimal ring seal and compression recovery during top-end rebuilds. Each kit includes forged aluminum alloy piston, precision-fitted piston ring, hardened wrist pin, and retaining circlips for all Yamaha 350 ATV applications listed. Manufactured using premium forged aluminum alloy and precision machined on CNC equipment for consistent dimensions and reliable performance in ATV riding conditions. Requires cylinder bored to 83.5mm for use during top-end rebuilds when the standard bore has exceeded its service limit on Yamaha 350cc ATV models.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
