Piston Kit Compatible With 1984-2015 Yamaha 60Hp 70Hp Outboard 3-Cyl 2-Stroke 849Cc 72Mm Bore Marine

OEM PART NUMBERS:
• Yamaha: 6H3-11631-01-96 / 6H311631-0196 (Piston Standard)
• Yamaha: 6K5-11631-03-95 / 6K511631-0395 (Piston Standard Alt)
• Yamaha: 6K5-11601-02-00 / 6K511601-0200 (Ring Set)
• Yamaha: 6H3-11633-00-00 / 6H311633-0000 (Wrist Pin)
• Yamaha: 688-11634-10-00 / 68811634-1000 (Circlips)

SPECIFICATIONS:
• Product Type: Piston Kit
• Standard Bore: 72mm (2.834")
• Oversize: Standard
• Configuration: 3-Cylinder 2-Stroke
• Displacement: 849cc (51.8ci)
• Stroke: 69.5mm (2.736")

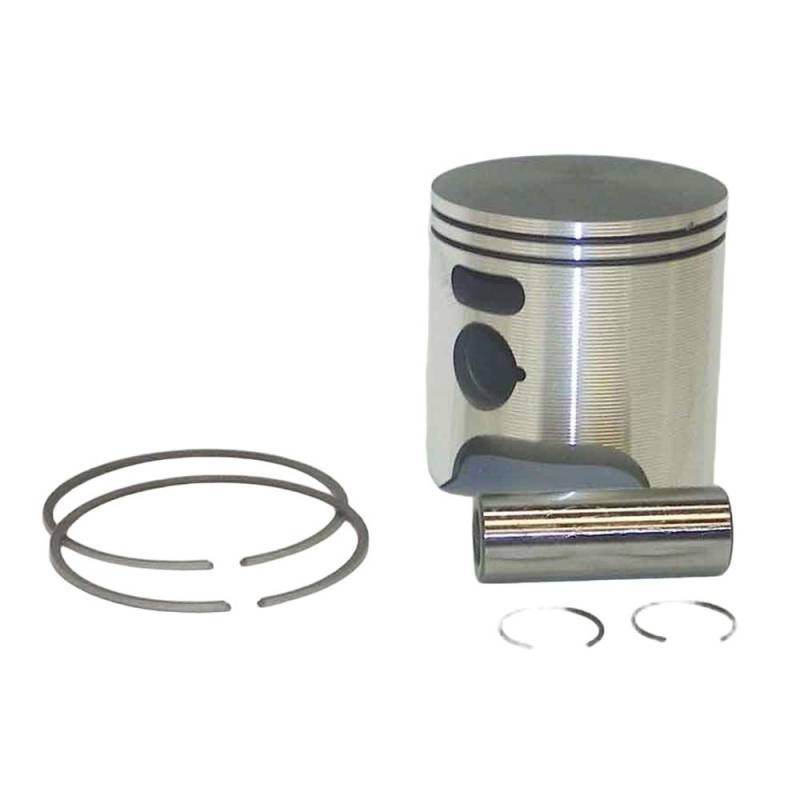

• Kit Contents: Piston, Rings, Wrist Pin, Circlips
• Material: Forged Aluminum
• Condition: New

YAMAHA OUTBOARD APPLICATIONS:
• Yamaha 60HP 849cc 2-Stroke 3-Cyl 72mm Bore (1984-2015)
• Yamaha 70HP 849cc 2-Stroke 3-Cyl 72mm Bore (1984-2015)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
