New Piston Kit 84Mm Compatible With Yamaha Wave Raider 760 1996 Wave Blaster 760 1996-1997 Gp 760

CROSS REFERENCE PART NUMBERS:
• Yamaha 64X-11631-00-91
• Yamaha 65U-11631-00-89
• Yamaha 65U-11631-01-89
• Yamaha 65U-11631-02-90
• Yamaha 65U-11631-01-90
• Yamaha 65U-11631-00-00 (Superseded)
• Pro-X 01.2514.000

ITEM SPECIFICATIONS:
• Component: Piston Kit (Standard Bore)
• Piston Size: 84.0mm (Standard)
• Bore x Stroke: 84.0mm x 68mm
• Displacement: 754cc (2-Cyl) / 1131cc (3-Cyl)
• Compression Ratio: 7.2:1 (760cc) / 6.0:1 (1200cc)

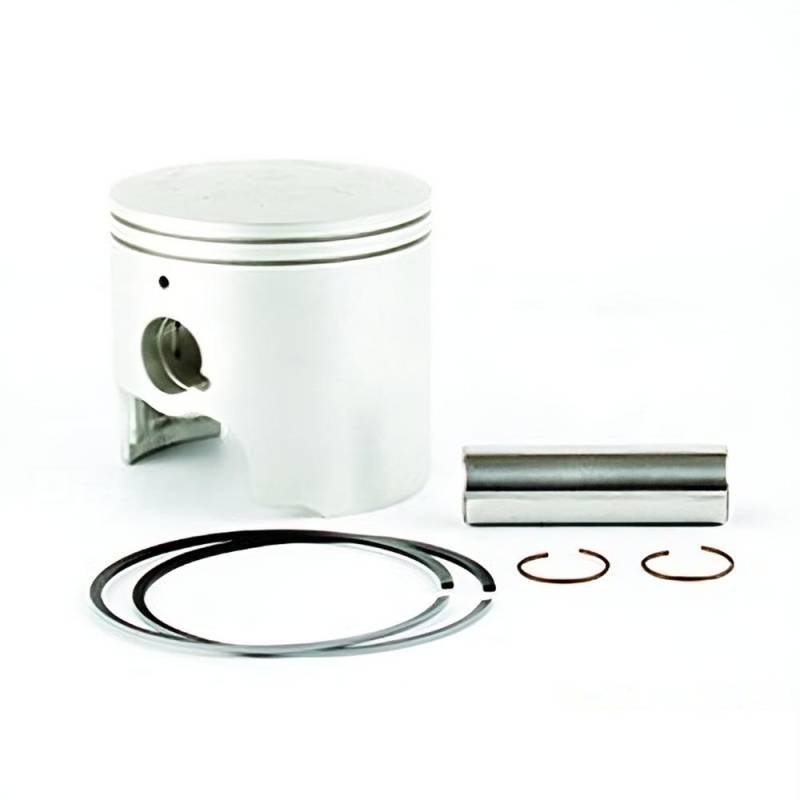

• Kit Contents: Piston, Ring, Wrist Pin, Circlips
• Material: Cast Aluminum Alloy Piston
• Engine: Liquid-Cooled 2-Stroke Watercraft
• Model Years: 1996-2005 (various Yamaha watercraft models)

COMPATIBLE MODELS:
Yamaha 760cc Watercraft:
• GP 760 (1999-2000) / Wave Blaster 760 (1996-1997)
• Wave Raider 760 (1996) / Wave Runner 760 (1997-1998)
• Wave Venture 760 (1997) / XL 760 (1998-1999)
Yamaha 1200cc Watercraft and Jet Boats:
• GP 1200 (1997-1999) / XL 1200 (1998)
• Exciter 135 1200 (1998-1999) / Exciter 270 1200 (1998-1999)
• LS 2000 1200 (1999-2000) / LX 210 1200 (2003-2005) / SUV 1200 (1999-2004)

PRODUCT DETAILS:
High-quality piston kit designed for the Yamaha liquid-cooled 2-stroke engine family powering multiple watercraft models from the GP series to the Wave Venture series. The 84mm standard bore piston restores factory clearance for proper ring seal and compression in the 754cc twin-cylinder and 1131cc triple-cylinder engines. Includes cast aluminum alloy piston, precision-fitted piston ring, hardened wrist pin, and retaining circlips for all Yamaha 760cc and 1200cc 2-stroke watercraft models. CNC precision machined from premium cast aluminum alloy for consistent dimensions, reliable sealing, and dependable performance in watercraft applications.
