CROSS REFERENCE PART NUMBERS:
• Kawasaki 13001-3737
• Pro-X 01.4554.A
ITEM SPECIFICATIONS:
• Component: Piston Kit (Standard Bore A Grade)
• Piston Size: 82.95mm (A Grade)
• Bore x Stroke: 83.0mm x 69.2mm (Standard)
• Displacement: 1498cc (Inline 4-Cylinder)
• Compression Ratio: 10.6:1

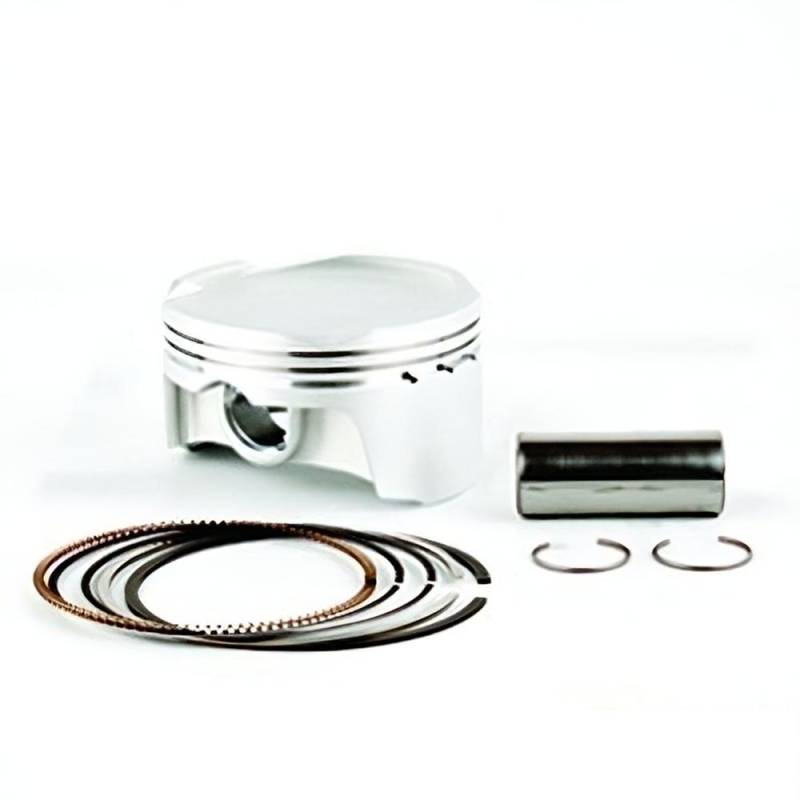

• Kit Contents: Piston, Rings, Wrist Pin, Circlips
• Material: Cast Aluminum Alloy Piston
• Engine: DOHC 4-Stroke Inline 4-Cylinder
• Model Years: 2004-2025 (Kawasaki 1500cc PWC)
COMPATIBLE MODELS:
Kawasaki Personal Watercraft Models:
• STX-15F (2004-2019)
• STX 1500 (2009-2010)
• STX 160 (2020-2023)
• STX 160LX (2020-2024)
• STX 160X (2020-2023)
• SX-R 1500 (2017-2023)
• SX-R 160 (2024)
• ULTRA 160LX (2023-2025)
• ULTRA 160LX-S (2024-2025)
• ULTRA LX (2007-2022)
PRODUCT DETAILS:
This standard bore A grade piston kit is designed for the 1498cc DOHC 4-stroke inline 4-cylinder engine used in Kawasaki personal watercraft including the STX-15F, STX 160 series, SX-R series, and ULTRA LX series from 2004 through 2025. The 82.95mm A grade piston provides precise piston-to-wall clearance for optimal ring seal and compression in factory-spec cylinders for the Kawasaki 1500cc personal watercraft engine. Each kit includes cast aluminum alloy piston, precision-fitted piston rings, hardened wrist pin, and retaining circlips for a top-end rebuild of the 1498cc DOHC 4-stroke 4-cylinder engine. Manufactured using premium cast aluminum alloy and precision machined on CNC equipment for consistent dimensions and reliable performance in marine watercraft applications. The Kawasaki 1500cc personal watercraft feature a DOHC 4-stroke inline 4-cylinder powerplant delivering 83mm bore and 69.2mm stroke with 10.6:1 compression.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
