CROSS REFERENCE PART NUMBERS:
• Kawasaki 13001-3737
• Pro-X 01.4554.A
ITEM SPECIFICATIONS:
• Component: Piston Kit (Standard Bore A Grade)
• Piston Size: 82.95mm (A Grade)
• Bore x Stroke: 83.0mm x 69.2mm (Standard)
• Displacement: 1498cc (Inline 4-Cylinder)
• Compression Ratio: 10.6:1

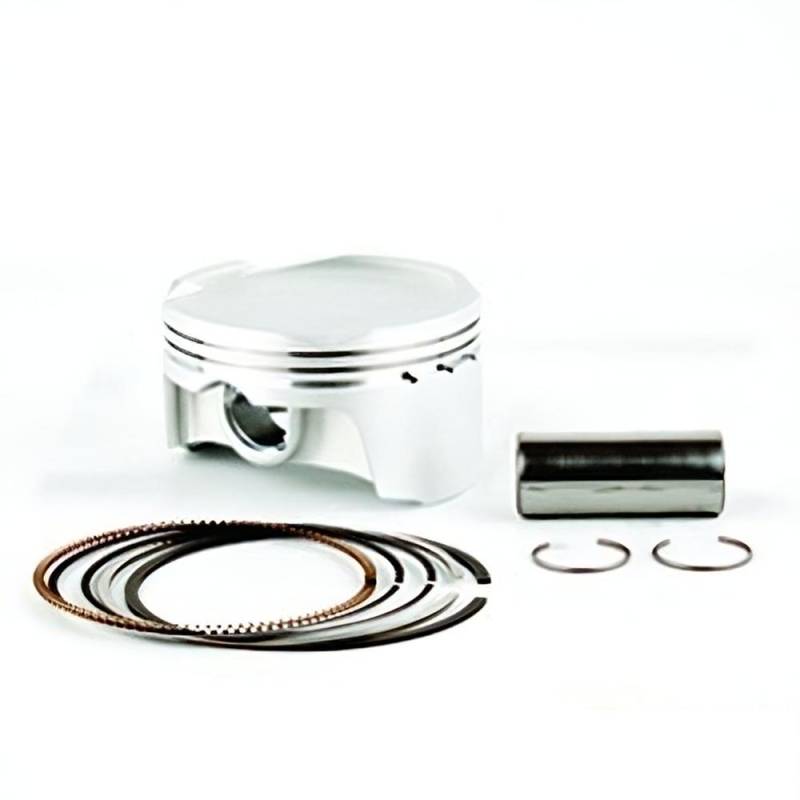

• Kit Contents: Piston, Rings, Wrist Pin, Circlips
• Material: Cast Aluminum Alloy Piston
• Engine: DOHC 4-Stroke Inline 4-Cylinder
• Model Years: 2004-2025 (Kawasaki 1500cc PWC)
COMPATIBLE MODELS:
Kawasaki Personal Watercraft Models:
• STX-15F (2004-2019)
• STX 1500 (2009-2010)
• STX 160 (2020-2023)
• STX 160LX (2020-2024)
• STX 160X (2020-2023)
• SX-R 1500 (2017-2023)
• SX-R 160 (2024)
• ULTRA 160LX (2023-2025)
• ULTRA 160LX-S (2024-2025)
• ULTRA LX (2007-2022)
PRODUCT DETAILS:
Direct replacement piston kit engineered for the Kawasaki 1500cc personal watercraft 1498cc DOHC 4-stroke inline 4-cylinder engine used across multiple models including the STX-15F, SX-R, and ULTRA LX series produced from 2004 through 2025. The 82.95mm A grade piston delivers factory-spec clearance for reliable ring seal and consistent 4-stroke performance in standard bore cylinders for the Kawasaki 1500cc jet ski engine. Kit comes complete with cast aluminum alloy piston, precision-fitted piston rings, hardened wrist pin, and retaining circlips for a comprehensive top-end rebuild of the Kawasaki 1500cc engine. Precision machined on CNC equipment using premium cast aluminum alloy for reliable sealing and consistent power delivery in marine personal watercraft applications. Replaces Kawasaki piston part number 13001-3737 used in the Kawasaki STX-15F, STX 160, SX-R, and ULTRA LX personal watercraft with 1498cc DOHC 4-stroke 4-cylinder engine.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
