New Piston Kit 84Mm Compatible With 1996-2005 Yamaha Gp 760 Wave Blaster 760 Wave Raider Wave Runner

CROSS REFERENCE PART NUMBERS:
• Yamaha 64X-11631-00-91
• Yamaha 65U-11631-00-89
• Yamaha 65U-11631-01-89
• Yamaha 65U-11631-02-90
• Yamaha 65U-11631-01-90
• Yamaha 65U-11631-00-00 (Superseded)
• Pro-X 01.2514.000

ITEM SPECIFICATIONS:
• Component: Piston Kit (Standard Bore)
• Piston Size: 84.0mm (Standard)
• Bore x Stroke: 84.0mm x 68mm
• Displacement: 754cc (2-Cyl) / 1131cc (3-Cyl)
• Compression Ratio: 7.2:1 (760cc) / 6.0:1 (1200cc)

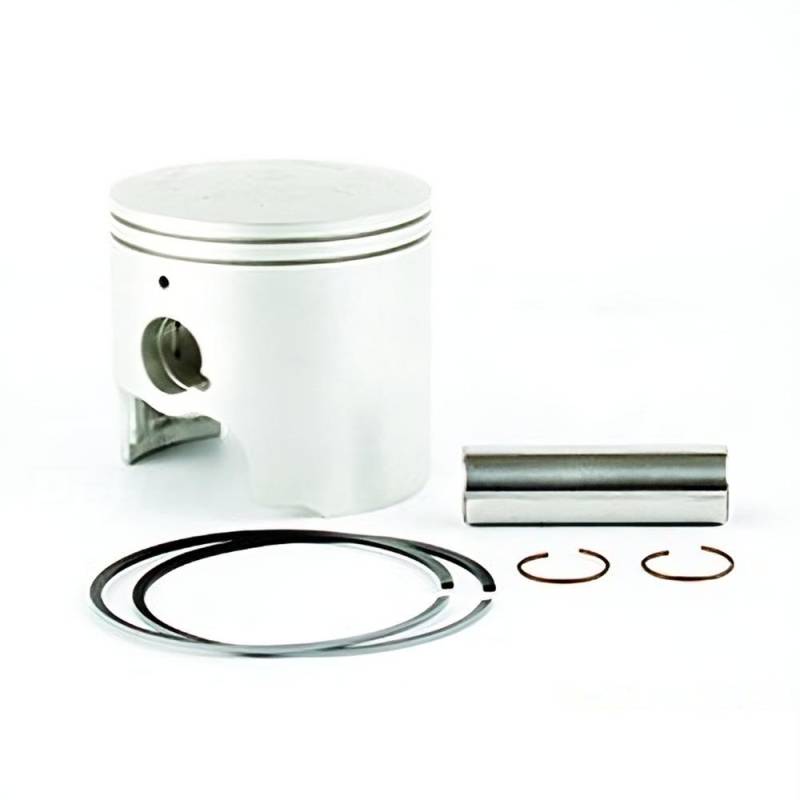

• Kit Contents: Piston, Ring, Wrist Pin, Circlips
• Material: Cast Aluminum Alloy Piston
• Engine: Liquid-Cooled 2-Stroke Watercraft
• Model Years: 1996-2005 (various Yamaha watercraft models)

COMPATIBLE MODELS:
Yamaha 760cc Watercraft:
• GP 760 (1999-2000) / Wave Blaster 760 (1996-1997)
• Wave Raider 760 (1996) / Wave Runner 760 (1997-1998)
• Wave Venture 760 (1997) / XL 760 (1998-1999)
Yamaha 1200cc Watercraft and Jet Boats:
• GP 1200 (1997-1999) / XL 1200 (1998)
• Exciter 135 1200 (1998-1999) / Exciter 270 1200 (1998-1999)
• LS 2000 1200 (1999-2000) / LX 210 1200 (2003-2005) / SUV 1200 (1999-2004)

PRODUCT DETAILS:
This piston kit is a direct replacement for multiple Yamaha watercraft models spanning the 760cc twin-cylinder and 1200cc triple-cylinder 2-stroke engine families. The 84mm standard bore piston provides factory-specified piston-to-wall clearance for optimal ring seal and compression in the liquid-cooled 2-stroke watercraft engine. Each kit includes cast aluminum alloy piston, precision-fitted piston ring, hardened wrist pin, and retaining circlips for Yamaha 760cc and 1200cc watercraft applications. Manufactured using premium cast aluminum alloy and precision machined on CNC equipment for consistent dimensions and reliable performance.
