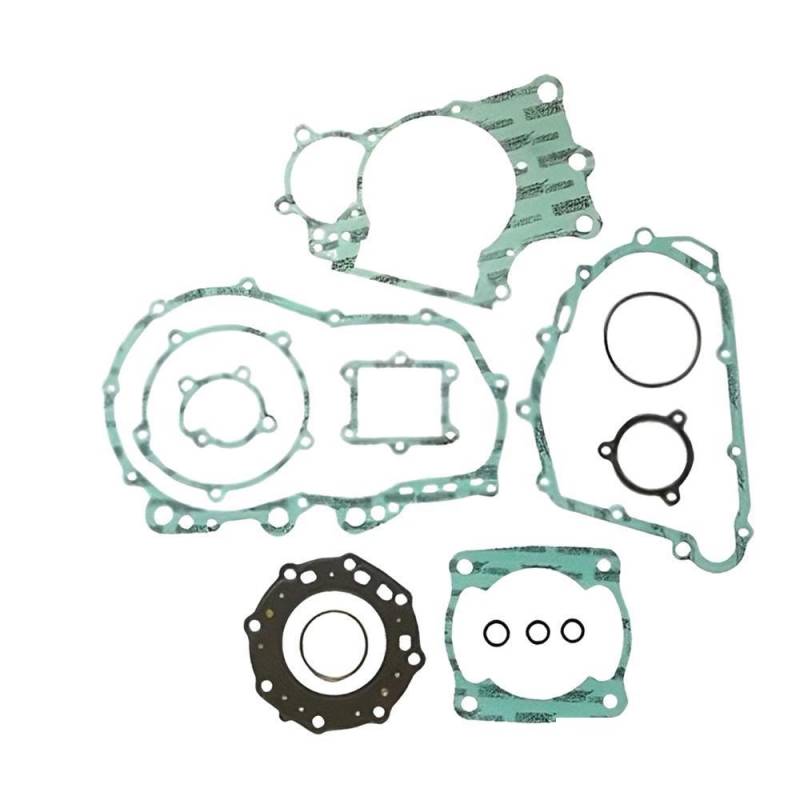

Complete Gasket Set Compatible With 1989 1990 Honda Pilot Fl400r 400Cc 2-Stroke Water Cooled Atv

P400210850402A1
OEM PART NUMBERS:
• P400210850402 - Athena Full Engine Gasket Kit

SPECIFICATIONS:
• Type: Full Engine Gasket Kit
• Engine: 397.1cc Liquid Cooled 2-Stroke Single Cylinder
• Bore: 80mm
• Stroke: 79mm
• Head Gasket Bore: 82mm
• Material: High-Quality Composite Gasket Material
• Includes: Cylinder Head Gasket, Cylinder Base Gasket, Crankcase Gaskets, Clutch Cover Gasket, Right Crankcase Cover Gasket, Water Pump Gasket, Exhaust Gasket, Reed Valve Gasket, O-Rings

FITS HONDA FL400R PILOT 400 ATV:
• Honda FL400R Pilot 400 - 1989 (K Model)
• Honda FL400R Pilot 400 - 1990 (L Model)
• Engine: 397.1cc Liquid Cooled 2-Stroke Single Cylinder
• Bore x Stroke: 80mm x 79mm
• CVT Automatic Transmission

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $178.17
Sale: $101.81
Save: 43%
Save: $76.36
Qty:
Free Shipping!

Description

HONDA FL400R PILOT 400 ATV:

1989 HONDA FL400R PILOT (K MODEL):
• Honda FL400R Pilot 400 - 1989
• Engine: 397.1cc Liquid Cooled 2-Stroke Single Cylinder
• Bore x Stroke: 80mm x 79mm
• Compression Ratio: 6.2:1
• Carburetor: 32mm Piston Valve, Reed Valve
• Ignition: CDI, 17.0 Degrees BTDC at 2,000 RPM
• Spark Plug: NGK BR7ES
• Coolant Capacity: 2.16 Quarts
• Transmission: CVT Automatic with Forward, Neutral, Reverse
• Starting: Electric Start with Pull-Start Backup
• Weight: 593 lbs

1990 HONDA FL400R PILOT (L MODEL):
• Honda FL400R Pilot 400 - 1990
• Engine: 397.1cc Liquid Cooled 2-Stroke Single Cylinder
• Bore x Stroke: 80mm x 79mm
• Compression Ratio: 6.2:1
• Carburetor: 32mm Piston Valve, Reed Valve
• Ignition: CDI, 17.0 Degrees BTDC at 2,000 RPM
• Spark Plug: NGK BR7ES
• Coolant Capacity: 2.16 Quarts
• Transmission: CVT Automatic with Forward, Neutral, Reverse
• Starting: Electric Start with Pull-Start Backup
• Weight: 593 lbs

VEHICLE DETAILS:
• Single-Seat Off-Road ATV/UTV with Roll Cage and Safety Harness
• Independent Front and Rear Suspension
• Front Suspension Travel: 5.9 Inches
• Rear Suspension Travel: 7.1 Inches
• Rear-Mounted Engine, Rear Wheel Drive
• Yoke-Style Steering with Thumb Throttle

NOTES:
• Honda produced the FL400R Pilot for 1989 and 1990 model years only
• This item fits various applications by part number - verify your OEM part number to ensure fitment
• OEM Part Number: P400210850402
