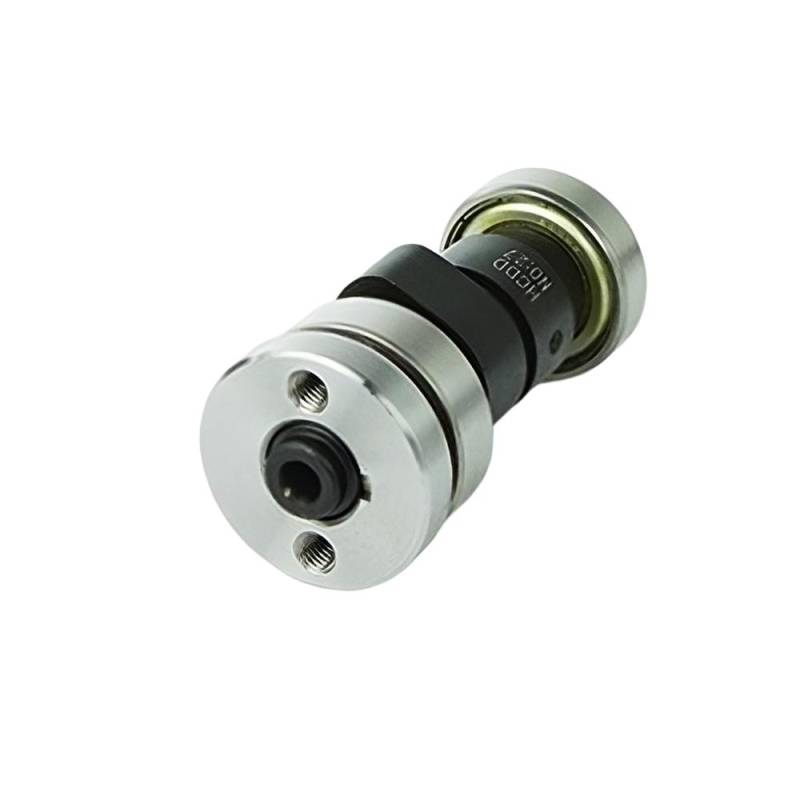

Stage 1 Camshaft Compatible With 2002-2009 Kawasaki Klx110 112Cc 4-Stroke Sohc Mini Bike 2003-2005

OEM PART NUMBERS:
• Kawasaki: 49118-1214
• Kawasaki (K-prefix): K4911-81214
• Hot Cams MPN: 2027-1

SPECIFICATIONS:
• Stage: 1 (Low-End Torque)
• Cam Type: Single Cam (SOHC)
• Engine: Kawasaki KLX110 / Suzuki DR-Z110 — 110-112cc 4-Stroke Air-Cooled SOHC
• Intake Lobe Center: 110° / Intake Lift: 6.220mm / Duration at 1mm: 220.5°
• Exhaust Lobe Center: 98° / Exhaust Lift: 6.050mm / Duration at 1mm: 212°
• Intake Valve Lash: 0.080mm / Exhaust Valve Lash: 0.110mm
• Valve Springs: Stock (no change required)
• Condition: New

APPLICATIONS SUMMARY:
• Kawasaki KLX110 112cc 4-Stroke Mini Bike (2002-2009)
• Suzuki DR-Z110 111cc 4-Stroke Trail Bike (2003-2005)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
