Cylinder Sleeve Compatible With Yamaha Ls 2000 1200Cc 1999-2003 Gp 1200 1997-1999 Xl 1200 1998 84Mm

REPLACES PART NUMBERS:
• 3234FA
• YA-5349

ITEM SPECIFICATIONS:
• Component: Cylinder Sleeve (Press-Fit)
• Bore: 84mm (Undersized)
• Material: Cast Iron
• Engine: Yamaha 1131cc 3-Cylinder 2-Stroke Non-PV
• Application: Yamaha PWC
• Model Years: 1997-2003

COMPATIBLE MODELS:
Yamaha PWC: GP 1200 (1997-1999), LS 2000 (1999-2003), XL 1200 (1998)

PRODUCT DETAILS:

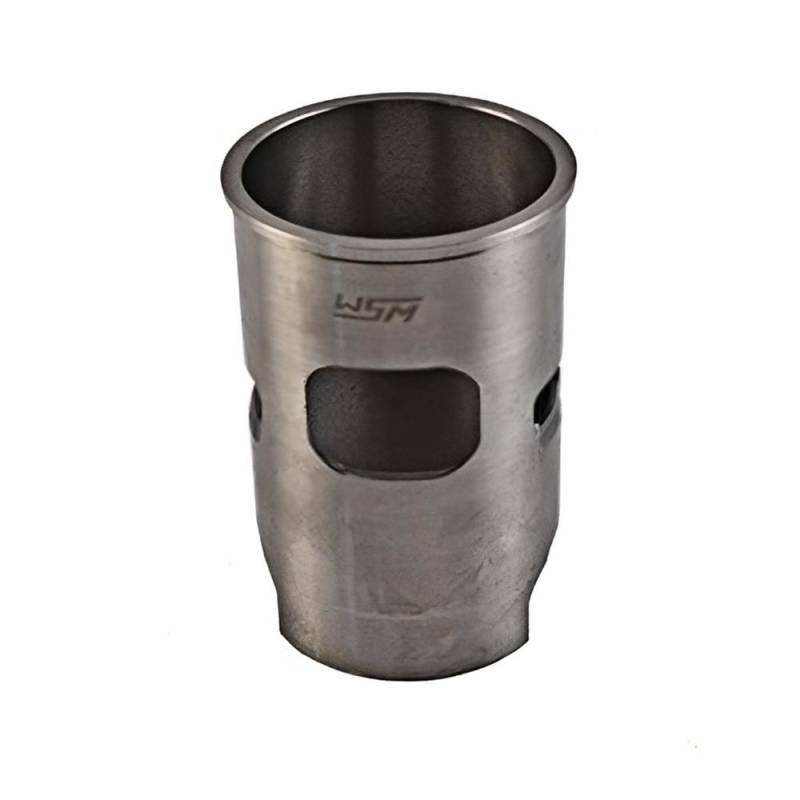

This 84mm bore cylinder sleeve is designed for the Yamaha personal watercraft powered by the 1131cc 3-cylinder 2-stroke non-power valve engine with 84mm bore and 68mm stroke. The cylinder sleeve is a precision-machined cast iron liner that presses into the aluminum cylinder casting to restore the cylinder bore when the original bore has become worn, scored, or damaged. Compatible with the Yamaha GP 1200 from 1997 through 1999, the LS 2000 from 1999 through 2003, and the XL 1200 from 1998 equipped with the non-power valve 3-cylinder 2-stroke engine. The sleeve is supplied undersized and must be bored and honed to final dimensions after installation to achieve the correct piston-to-cylinder wall clearance. Professional machine shop installation is required for pressing the sleeve into the cylinder and boring to final specifications with proper crosshatch surface finish. Verify your engine model and bore size before ordering to ensure correct application.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
