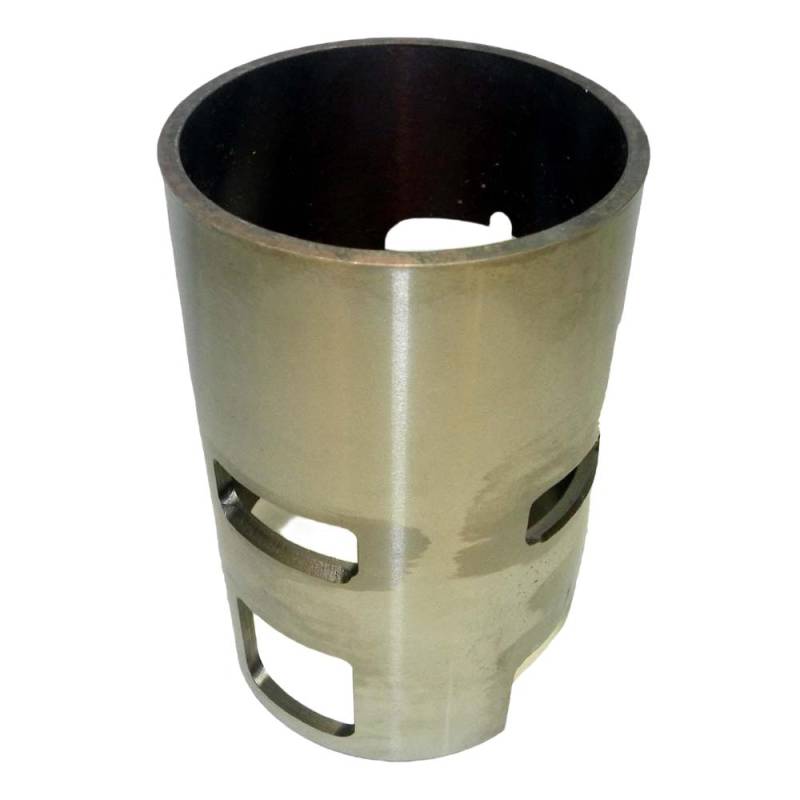

Cylinder Sleeve Compatible With 2004-2010 Yamaha Z300 Vz300 V6 200-300Hp 4.001" Bore Straight Marine

OEM PART NUMBERS:
• MPN: 1192SB

SPECIFICATIONS:
• Type: Cylinder Sleeve — Straight
• Sleeve OD: 4.001"
• Sleeve Length: 6.195"
• Standard Bore Size: 3.660"
• Oversize: .020" Over
• Engine: 3352cc (3.3L) 76° V6 HPDI
• Bore x Stroke: 3.660" x 3.228"
• Condition: New

YAMAHA Z300 / VZ300 HPDI APPLICATIONS:
• Yamaha Z300 HPDI 300HP V6 3.3L 2-Stroke Outboard (2004-2010)
• Yamaha VZ300 VMAX HPDI 300HP V6 3.3L 2-Stroke Outboard (2004-2010)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
