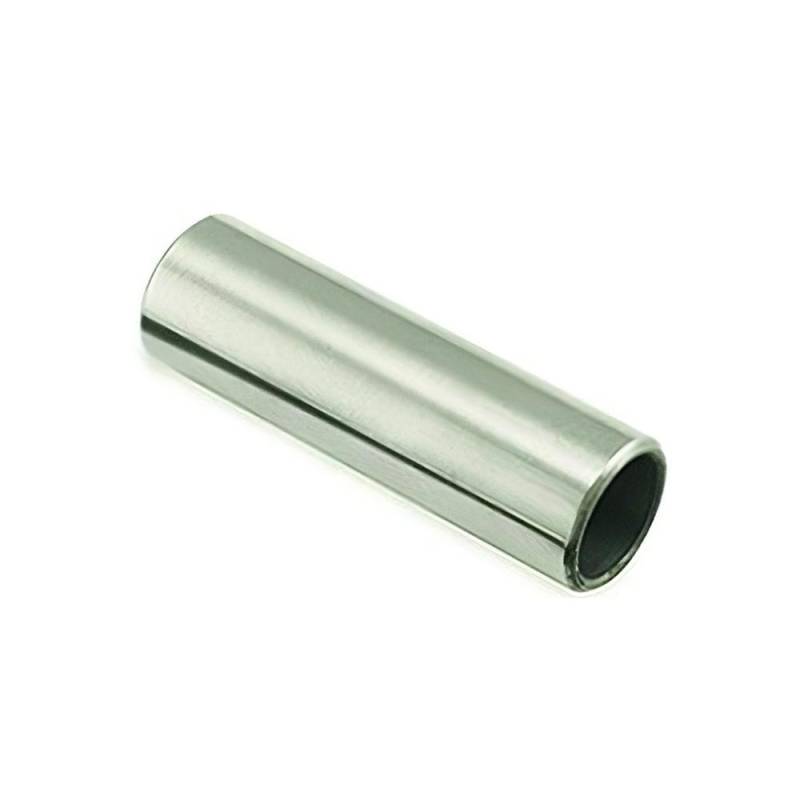

Piston Pin Compatible With 2002-2008 Yamaha Grizzly 660 4-Stroke Atv 22Mm Wrist Pin 3Yf-11633-00-00

Manufacturer Part Number:
04.2270

Cross-Reference OEM Part Numbers:
Yamaha: 3YF-11633-00-00
Yamaha: 3YF-11633-01-00

Pin Specifications:
• Outer Diameter: 22mm
• Material: Case-hardened chrome steel

Engine Specifications:
• 660cc SOHC 4-Valve 4-Stroke Single Cylinder — Liquid/Air Cooled
• Bore × Stroke: 100mm × 84mm
• Compression Ratio: 9.1:1
• Same engine platform across all Grizzly 660, Raptor 660, and Rhino 660 models

Notes:
• One piston pin fits ALL Yamaha 660cc models — Grizzly, Raptor, and Rhino
• Includes all special editions (Ducks Unlimited, Hunter, LE, SE, Wetland, Exploring)
• Replace during top-end rebuild or when pin shows wear
• Always replace circlips when removing pin

Function:
The piston pin (wrist pin) connects the piston to the connecting rod small end, transferring combustion force while allowing the rod to pivot. A worn or scored pin causes knocking, accelerated bore wear, and potential catastrophic failure.

When to Replace:
• During any top-end rebuild (piston, rings, cylinder re-bore/re-plate)
• When pin shows visible wear, scoring, discoloration, or blue heat marks
• When pin has measurable play in the connecting rod small end bearing

Installation Notes:
• Always replace piston pin circlips — never reuse old circlips
• Apply assembly oil to pin before installation
• Ensure circlips are fully seated — improper seating causes engine damage
• Verify connecting rod small end bearing condition before reassembly
• 660cc singles produce high loads — use proper torque values during assembly
