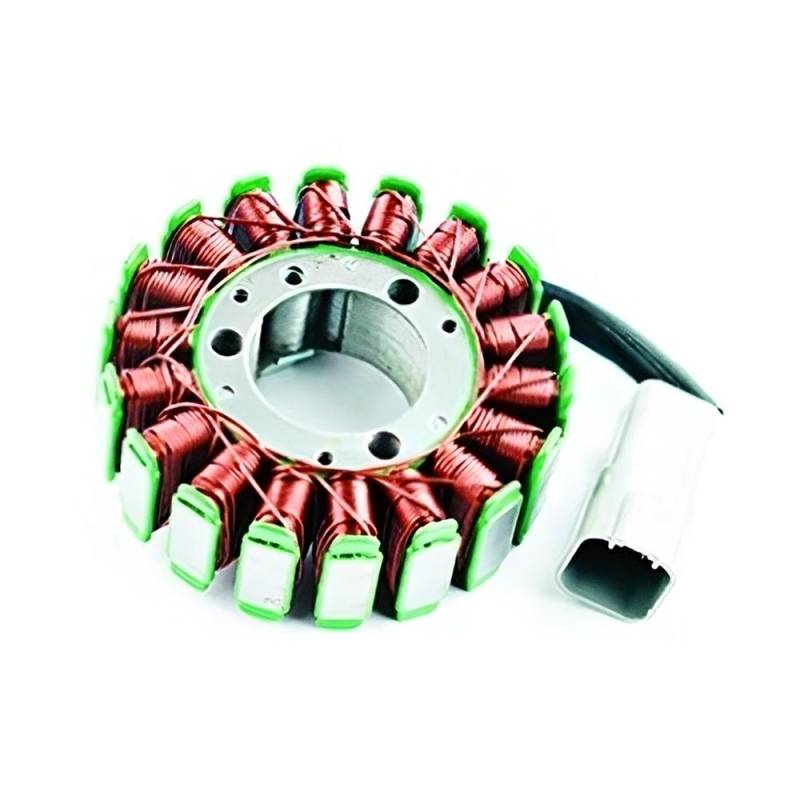

Stator Coil Assembly Compatible With 2000-2003 Sea-Doo Gtx Di 951 Rx Di 951 Lrv Di 951 Xp Di 951

004-201-01A1
Replaces Part Numbers

290888650 / 290888651
290888652 / 420888652


Specifications

Type: Magneto Stator Assembly
Alternator Resistance: 0.6 Ohms
Trigger Coil: 190-300 Ohms
Engine: Rotax 951 DI 2-Stroke Twin
DI (Direct Injection) models only


Applications

GTX DI 951, RX DI 951, LRV DI 951, XP DI 951 (2000-2003)


Replacement Stator for Sea-Doo GTX RX LRV XP DI 951
Direct replacement for Sea-Doo OEM 420888652. The magneto stator is the primary power source for the electrical and ignition system on the Rotax 951 Direct Injection engine. The stator generates AC voltage as the flywheel magnets spin past the coil poles. Over time, stator windings degrade from heat and vibration, causing weak output that results in a dead battery, misfires, and no-start conditions. This replacement fits all 2000-2003 Sea-Doo 951 DI models. Easy installation with standard hand tools.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $157.05
Sale: $89.74
Save: 43%
Save: $67.31
Qty:
Free Shipping!

Description

Applications

Sea-Doo Direct Injection PWC (2000-2003):
GTX DI, RX DI, LRV DI, XP DI
All 951cc Rotax 947 DI 2-Stroke Models

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 1.1 lbs.
  • W4.0000” x H4.0000” x L4.5000”
  • Free Shipping!
