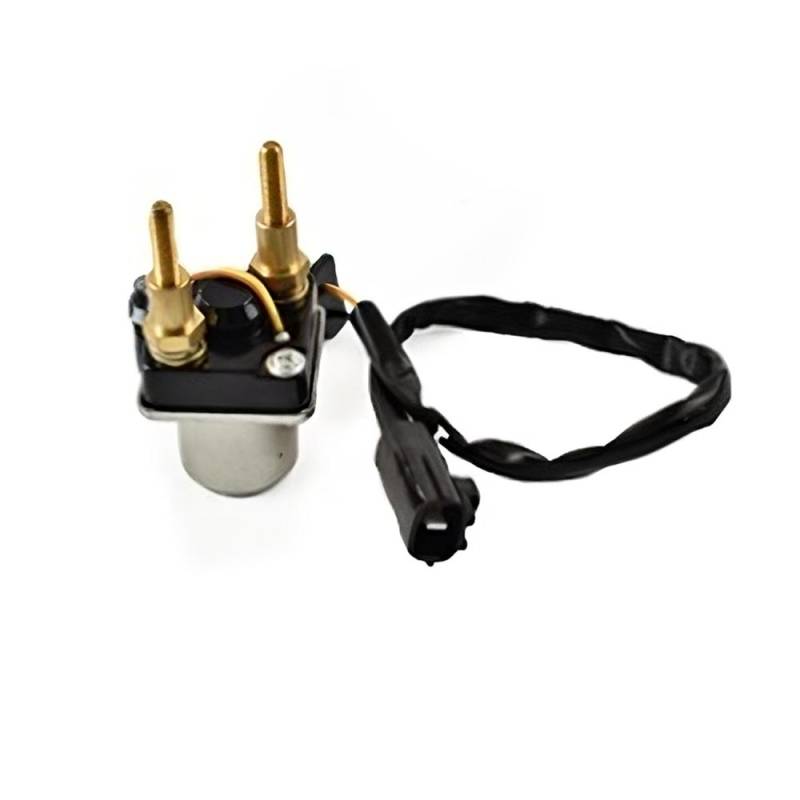

Starter Solenoid Compatible With Kawasaki Sx-R 1500 2017-2023 Sx-R 160 1500 2024 Stx 160 160Lx 160X

OEM PART NUMBERS:
• Kawasaki: 27010-0860 / 270100860 (Latest)
• Kawasaki: 27010-3777 / 270103777 (Superseded by 27010-0860)

SPECIFICATIONS:
• Type: Starter Solenoid Relay Switch
• Voltage: 12V
• Wire Count: 2 Wires
• Terminal Count: 2 Terminals
• Dimensions: 84mm H x 61mm L x 41mm W
• Wire Length: 55mm (relay to grommet) + 280mm (grommet to plug)
• Fits: Kawasaki 1100-1500cc Jet Ski (2002-2024)
• Source: Aftermarket
• Condition: New

COMMON FAILURE SYMPTOM:
• Clicking sound when pressing start button but engine does not crank
• Intermittent starting — works sometimes, fails other times
• No response at all when pressing start button

KAWASAKI APPLICATIONS:
• STX DI/STX-R/STX-12F 1100-1200 (2002-2007)
• STX-15F/STX/STX 160 1500 (2004-2024)
• Ultra 130 DI/250X/260X/260LX/LX (2003-2011)
• SX-R 1500 / SX-R 160 (2017-2024)

PRODUCT NOTICE:
