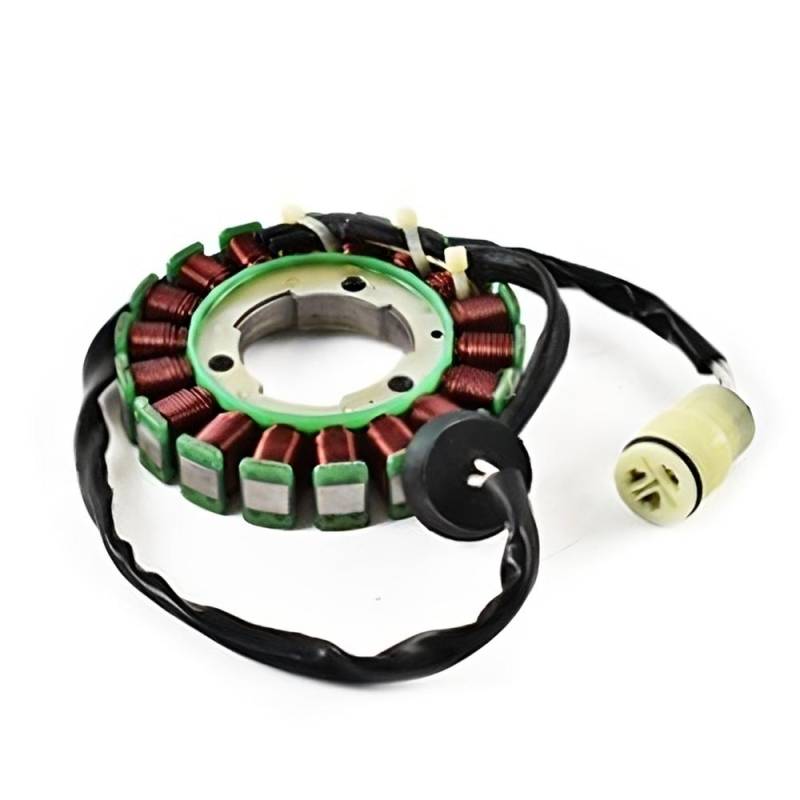

Stator Assembly Compatible With 2003-2025 Kawasaki Ultra 310X Se 310R 300X 300Lx 250X Stx-12F 1200Cc

004-205-12A4
Replaces Part Numbers

Kawasaki: 21003-3747
RM Stator: RM01536


Specifications

Type: Magneto Stator Assembly
Alternator: 1.1 Ohms (White-White)
Configuration: 3-Wire 3-Pin
Engine: Inline 4-Cylinder 4-Stroke DOHC
Displacement: 1199cc / 1498cc


Applications

Ultra 310LX, 310X, 310R, 300LX, 300X, 260LX, 260X, 250X (2007-2024)
Ultra 160LX, 160LX-S (2023-2025)
STX-12F 1200cc (2003)


Replacement Stator for Kawasaki Ultra 310 300 260 250
Direct replacement for Kawasaki OEM 21003-3747. The magneto stator is the primary power source for the electrical and ignition system on the inline 4-cylinder 4-stroke DOHC 16-valve engine. The stator generates AC voltage as the flywheel magnets spin past the coil poles. Over time, stator windings degrade from heat and vibration, causing weak output that results in a dead battery, misfires, and no-start conditions. Alternator resistance: 1.1 ohms between white wires. 3-wire 3-pin configuration. Easy installation.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $162.44
Sale: $92.82
Save: 43%
Save: $69.62
Qty:
Free Shipping!

Description

Applications

Kawasaki Ultra 310 Series (2014-2024):
Ultra 310LX, 310LX-S, 310X, 310X SE, 310R

Kawasaki Ultra 250-300 Series (2007-2013):
Ultra 300LX, 300X, 260LX, 260X, 250X

Kawasaki Ultra 160 Series (2023-2025):
Ultra 160LX, 160LX-S

Kawasaki STX-12F (2003):
STX-12F 1200cc

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 1.9 lbs.
  • W4.0000” x H4.0000” x L6.0000”
  • Free Shipping!
