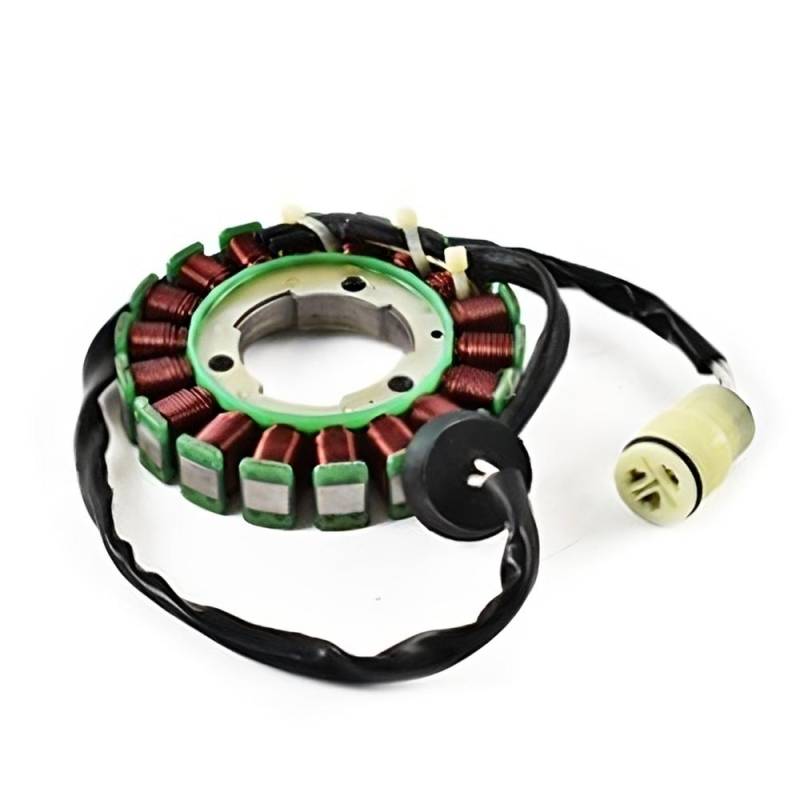

Stator Magneto Compatible With 2003-2025 Kawasaki Ultra 310Lx 310Lx-S 300Lx 260Lx 260X 160Lx-S

004-205-12A3
Replaces Part Numbers

Kawasaki: 21003-3747
RM Stator: RM01536


Specifications

Type: Magneto Stator Assembly
Alternator: 1.1 Ohms (White-White)
Configuration: 3-Wire 3-Pin
Engine: Inline 4-Cylinder 4-Stroke DOHC
Displacement: 1199cc / 1498cc


Applications

Ultra 310LX, 310X, 310R, 300LX, 300X, 260LX, 260X, 250X (2007-2024)
Ultra 160LX, 160LX-S (2023-2025)
STX-12F 1200cc (2003)


Kawasaki Ultra Series Stator Magneto
This stator replaces Kawasaki OEM 21003-3747 and cross-references RM Stator RM01536. The magneto stator generates electrical power for the ignition system and battery charging on the inline 4-cylinder 4-stroke DOHC engine. Fits both the 1199cc STX-12F and all 1498cc supercharged Ultra models including the Ultra 310LX, 310X, 310R, 300X, 260X, and 250X. The Eaton TVS supercharged models produce 250 to 310 HP. Direct plug-in replacement with factory connector.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $155.03
Sale: $88.59
Save: 43%
Save: $66.44
Qty:
Free Shipping!

Description

Applications

Kawasaki 1500cc Supercharged 4-Stroke (2007-2025):
Ultra 310LX, 310LX-S, 310X, 310X SE, 310R
Ultra 300LX, 300X, 260LX, 260X, 250X
Ultra 160LX, 160LX-S

Kawasaki 1200cc 4-Stroke (2003):
STX-12F 1200cc

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 1.9 lbs.
  • W4.0000” x H4.0000” x L6.0000”
  • Free Shipping!
