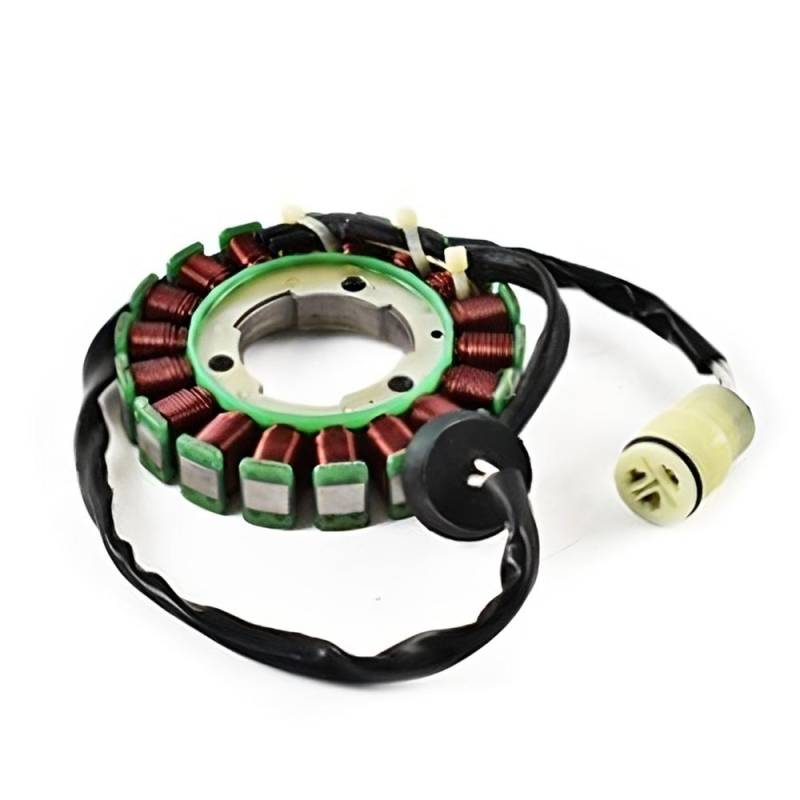

Magneto Stator Compatible With 2007-2025 Kawasaki Ultra 310R 310X 310Lx 300X 300Lx 260X 250X 160Lx

004-205-12A2
Replaces Part Numbers

Kawasaki: 21003-3747
RM Stator: RM01536


Specifications

Type: Magneto Stator Assembly
Alternator: 1.1 Ohms (White-White)
Configuration: 3-Wire 3-Pin
Engine: Inline 4-Cylinder 4-Stroke DOHC
Displacement: 1199cc / 1498cc


Applications

Ultra 310LX, 310X, 310R, 300LX, 300X, 260LX, 260X, 250X (2007-2024)
Ultra 160LX, 160LX-S (2023-2025)
STX-12F 1200cc (2003)


Magneto Stator for Kawasaki Jet Ski Ultra STX-12F
Replacement magneto stator for Kawasaki OEM 21003-3747. The stator is the charging and ignition power source for the inline 4-cylinder 4-stroke engine used across the Kawasaki Ultra personal watercraft lineup from 2003 to 2025. When stator windings short or open, electrical output drops, causing battery drain, weak spark, and eventual no-start. Covers STX-12F through Ultra 310 series. Test with a multimeter — spec is 1.1 ohms between white wires. Plug-in replacement with OEM-matched connector.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $162.44
Sale: $92.82
Save: 43%
Save: $69.62
Qty:
Free Shipping!

Description

Applications

Kawasaki Ultra 310 Series (2014-2024):
Ultra 310LX, 310LX-S, 310X, 310X SE, 310R

Kawasaki Ultra 250-300 Series (2007-2013):
Ultra 300LX, 300X, 260LX, 260X, 250X

Kawasaki Ultra 160 Series (2023-2025):
Ultra 160LX, 160LX-S

Kawasaki STX-12F (2003):
STX-12F 1200cc

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 1.9 lbs.
  • W4.0000” x H4.0000” x L6.0000”
  • Free Shipping!
