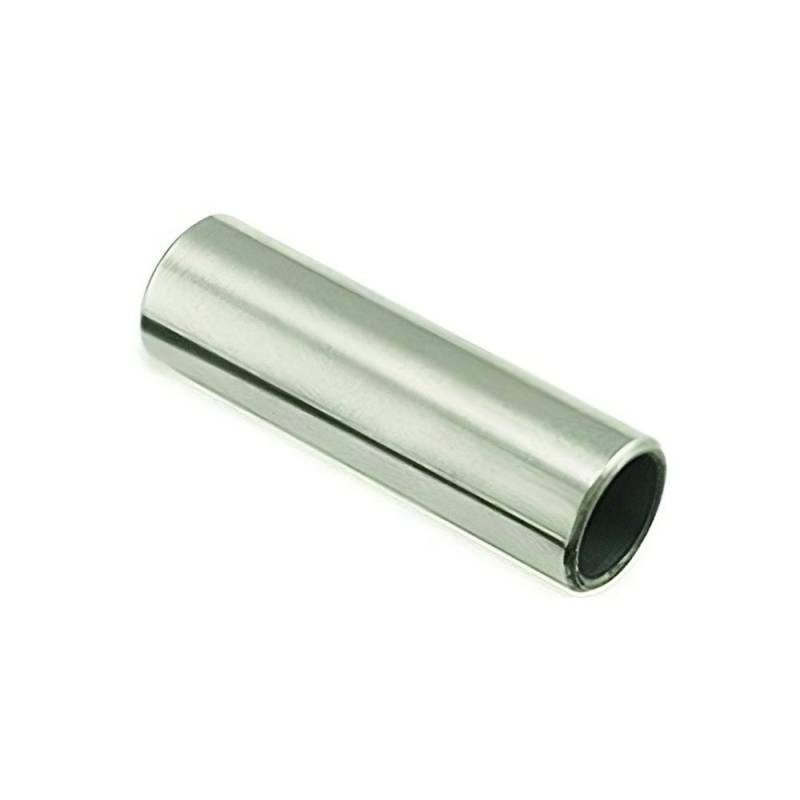

Piston Pin Compatible With 1982-1991 Kawasaki Kx 125Cc 2-Stroke 16Mm Wrist Pin New Outer

Manufacturer Part Number:
04.1646.5

Cross-Reference OEM Part Numbers:
Kawasaki: 13002-1003
Kawasaki: 13002-1066

Pin Specifications:
• Outer Diameter: 16mm
• Material: Case-hardened chrome steel

Engine Specifications:
• 124.6cc 2-Stroke Single Cylinder — Liquid Cooled
• Bore × Stroke: 56mm × 50.6mm (early models), 54mm × 54.5mm (later models)

Notes:
• Piston pin (wrist pin) connects piston to connecting rod small end
• Replace during top-end rebuild or when pin shows wear, scoring, or discoloration
• KX 125 bore/stroke changed during production run — pin remained the same
• Always replace circlips when removing pin — never reuse old circlips

Function:
The piston pin (also called a wrist pin or gudgeon pin) is the hardened steel shaft that connects the piston to the connecting rod small end. It transfers combustion force from the piston to the connecting rod while allowing the rod to pivot as the crankshaft rotates. A worn, scored, or loose piston pin causes knocking noise, accelerated bore wear, and potential catastrophic engine failure.

When to Replace:
• During any top-end rebuild (piston, rings, cylinder re-bore/re-plate)
• When pin shows visible wear, scoring, discoloration, or blue heat marks
• When pin has measurable play in the connecting rod small end bearing
• Recommended every 2nd piston replacement even if pin appears serviceable

Installation Notes:
• Always replace piston pin circlips — never reuse old circlips
• Apply assembly oil or premix to pin before installation
• Ensure circlips are fully seated in their grooves — improper seating causes engine damage
• Verify connecting rod small end bearing condition before reassembly
• 2-stroke engines require more frequent top-end service — inspect pin at every rebuild
