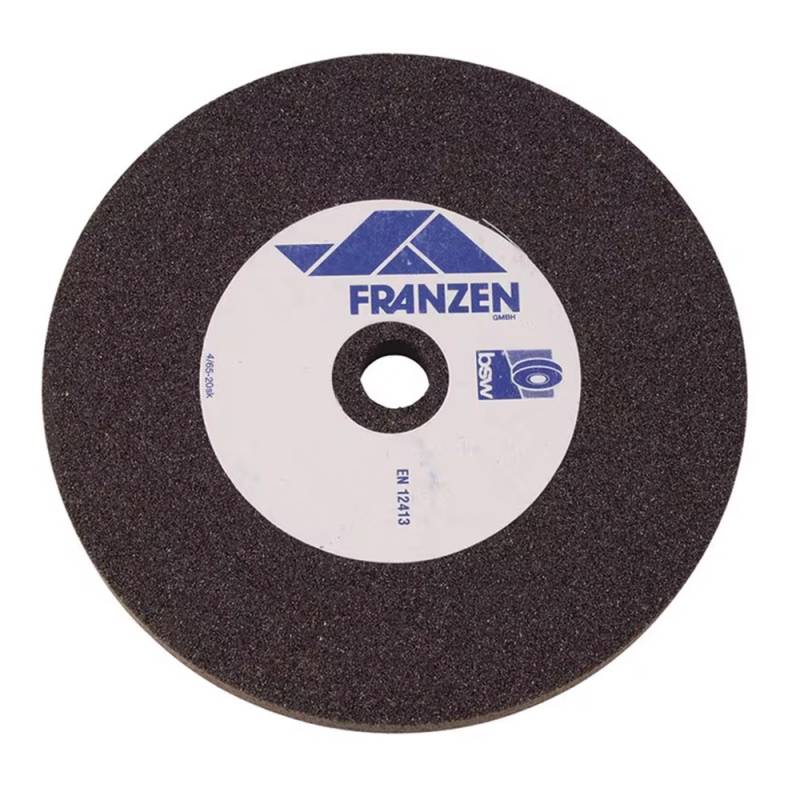

Depth Gauge Grinding Wheel Synthetic Resin 120 X 9.0 X 12Mm 3/4" Harvester Chain Raker Compatible

PART NUMBERS:
• Franzen SA6 Synthetic Resin Depth Gauge Wheel

SPECIFICATIONS:
• Type: Depth Gauge (Raker) Grinding Wheel — Synthetic Resin
• OD (Outside Diameter): 120mm (4.72")
• Thickness (Width): 9.0mm (0.354")
• ID (Arbor Bore): 12mm (0.472")
• Material: Synthetic Resin
• Chain Compatibility: 3/4" Pitch Harvester Chain — Depth Gauges
• Sharpener: Franzen SA6 Automatic Chain Sharpener
• Condition: New

DEPTH GAUGE WHEELS — COMPARISON:
• 052-957 — Standard: 120 x 7.0 x 12mm — All Pitches (1/4" through .404")
• 052-961 — Synthetic Resin: 120 x 9.0 x 12mm — 3/4" Harvester (THIS ITEM)

FRANZEN SA6 COMPLETE WHEEL LINEUP:
• 052-925 — Tooth: 150 x 3.2 x 12mm — 1/4", .325", 3/8" LP Chain
• 052-949 — Tooth: 150 x 3.8 x 12mm — .325", 3/8" Chain
• 052-953 — Tooth: 150 x 4.5 x 12mm — .404" Chain
• 052-957 — Depth Gauge: 120 x 7.0 x 12mm — All Standard Pitches
• 052-961 — Depth Gauge: 120 x 9.0 x 12mm — 3/4" Harvester (THIS ITEM)

APPLICATIONS:
• 3/4" Pitch Harvester Chain Depth Gauge Grinding
• Forestry Harvesters, Processors, Large Chainsaw Mills
