OEM PART NUMBERS:
• Exmark: 116-1626 / 1161626 (current)
• Exmark: 116-1609 / 1161609 (superseded)
• Exmark: 109-7667 / 1097667 (original)
• Warner: 5228-7 / 52287
• Supersession: 109-7667 → 116-1609 → 116-1626
SPECIFICATIONS:

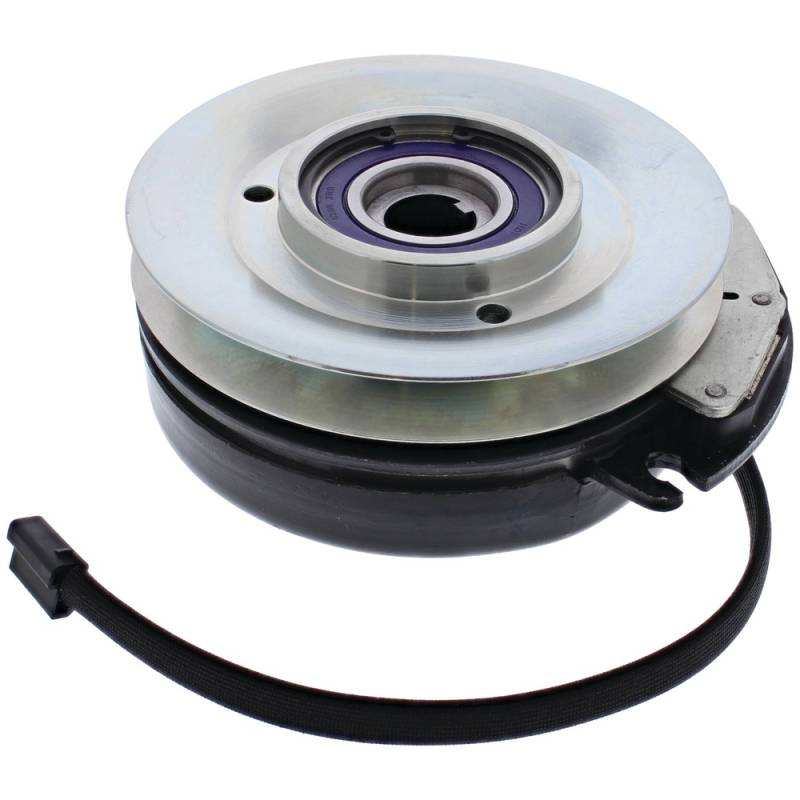

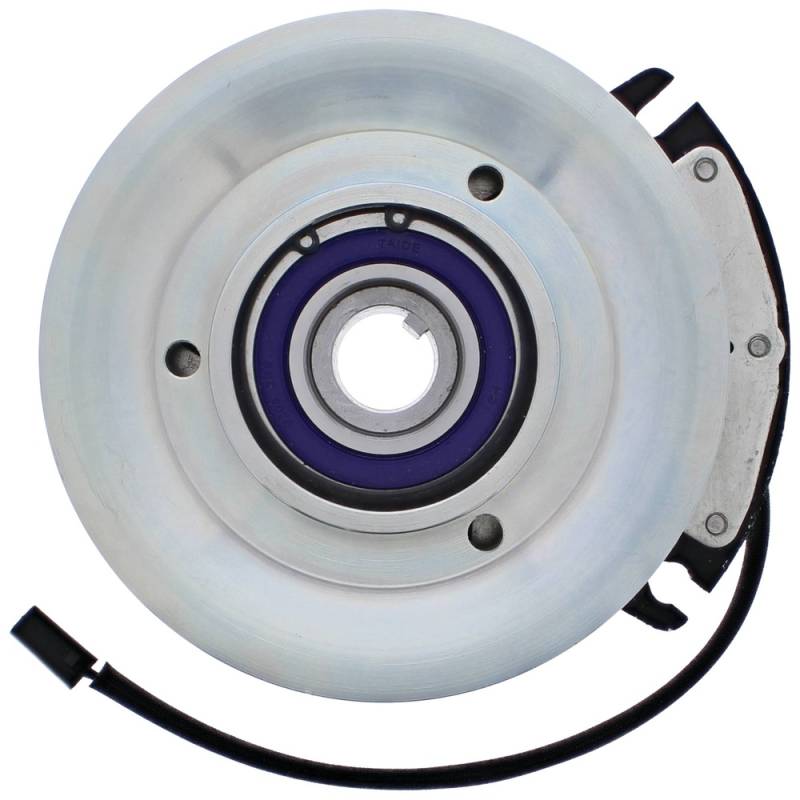

• Type: Electric PTO Clutch (Warner 5228-7)
• Crankshaft ID: 1-1/8 Inch (1.125 Inch)
• Pulley Diameter: 7-1/4 Inch
• Belt Width: 5/8 Inch
• Rotation Direction: Clockwise (CW)
• Torque: 250 Ft-Lbs
• Condition: New
LAZER Z X-SERIES S APPLICATIONS:
• LXS31BV725 (31HP/72") / LXS35BV605 (35HP/60")
• LXS35BV665 (35HP/66") / LXS35BV725 (35HP/72")
LAZER Z APPLICATIONS:
• LZ22LKA523 / LZ22LKA604 / LZ23KC604 / LZ23LKA604
• LZ25KC523 / LZ25KC604 / LZ25KC724 / LZ26KC604 / LZ26KC724
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
