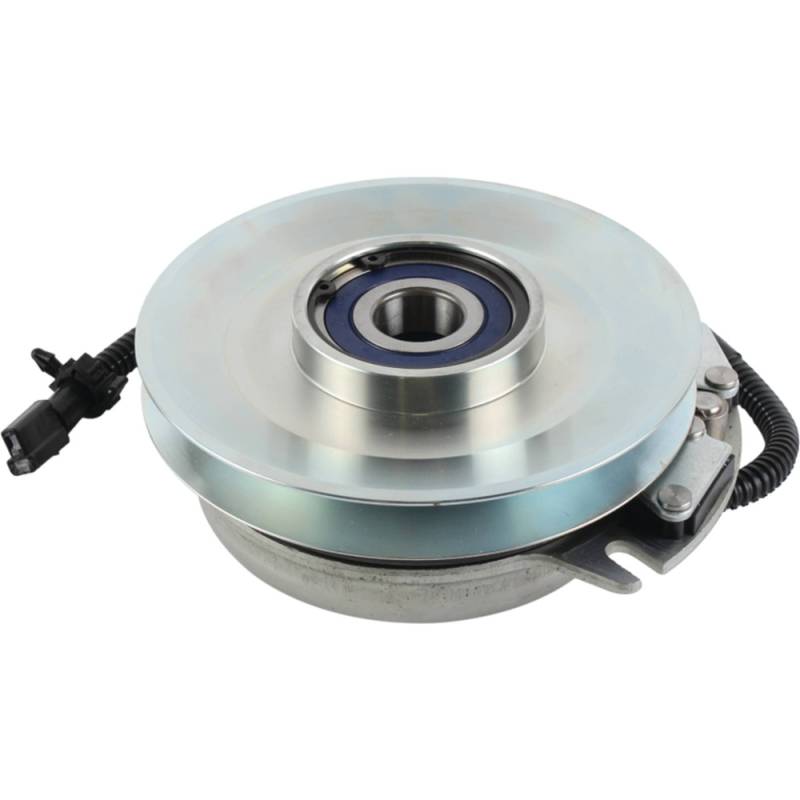

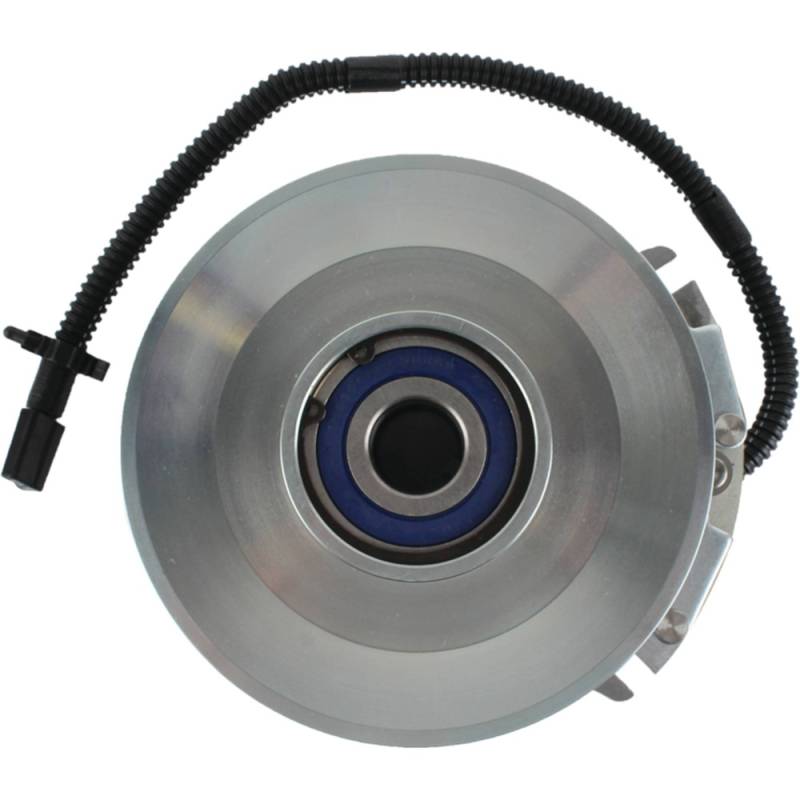

Electric Pto Clutch Blade Brake Compatible With Exmark Lazer Z Xs 29Hp Liquid-Cooled Kawasaki 35Hp

(0) Reviews: Write first review
X0460A3
OEM PART NUMBERS:
• Exmark: 103-2453 / 1032453
• Exmark: 103-3244 / 1033244
• Exmark: 103-6589 / 1036589
• Exmark: 109-7666 / 1097666
• Toro: 103-2453 / 1032453
• Toro: 103-3244 / 1033244
• Toro: 103-6589 / 1036589
• Toro: 109-7666 / 1097666
• Warner: 5218-101 / 5218101
• Warner: 5218-217 / 5218217
• Warner: 5218-163 / 5218163
• Warner: 5218-376 / 5218376
• Stens: 255-488 / 255488
SPECIFICATIONS:
• Type: Commercial MagStop (CMS) Electric PTO Clutch
• Crankshaft ID: 1-1/8 Inch (1.125 Inch)
• Pulley Diameter: 7-1/8 Inch (7.125 Inch)
• Belt Width: 1/2 Inch or 5/8 Inch
• Rotation Direction: Clockwise (CW)
• Height: 3-1/4 Inch
• Torque: 200 Ft-Lbs
• Condition: New
EXMARK APPLICATIONS:
• Lazer Z — 27HP Kohler/Kawasaki, 28HP Kawasaki, 31HP Vanguard — 60"/66.5"/72" Decks
• Lazer Z AS — 28HP Kawasaki V-Twin — 52"/60"/72" Decks
• Lazer Z XS — 29HP Liquid Kawasaki, 31HP/35HP Vanguard, Kawasaki DFI — 60"/66.5"/72" Decks
TORO APPLICATIONS:
• Z Master Z550 — 28HP Kawasaki V-Twin — 52"/60"/72" TURBO FORCE (74271/74272/74273)
• Z Master Z555 — 60" TURBO FORCE (74245)
• Z Master Z558 — 60" TURBO FORCE (74272)
• Z Master Z587L — 60"/72" TURBO FORCE (74250/74251/74252)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $566.41
Sale: $323.66
Save: 43%
Save: $242.75
Qty:
Free Shipping!

Description

EXMARK LAZER Z — Kawasaki / Kohler / Vanguard V-Twin Engines:
• Lazer Z 27HP Kawasaki Liquid-Cooled V-Twin 60" Deck (LZ27LKA604)
• Lazer Z 27HP Kawasaki Liquid-Cooled V-Twin 72" Deck (LZ27LKA724, L27LKA724)
• Lazer Z 27HP Kohler Command V-Twin 60" Deck (LZ27KC605)
• Lazer Z 28HP Kawasaki Air-Cooled V-Twin 60" Deck (LZ28KA605)
• Lazer Z 31HP Briggs & Stratton Vanguard V-Twin 60" Deck (LZ31BV604, LZ31BV605)
• Lazer Z 31HP Briggs & Stratton Vanguard V-Twin 66.5" Deck (LZ31BV665)
• Lazer Z 31HP Briggs & Stratton Vanguard V-Twin 72" Deck (LZ31BV724, LZ31BV725)
• Lazer Z EFI Kawasaki Units SN 370,000 and Up
• Lazer Z Air Cooled EFI SN 720,000 and Up
EXMARK LAZER Z AS — 28HP Kawasaki V-Twin:
• Lazer Z AS 28HP Kawasaki V-Twin 52" Deck (LAS28KA524)
• Lazer Z AS 28HP Kawasaki V-Twin 60" Deck (LAS28KA604)
• Lazer Z AS 28HP Kawasaki V-Twin 72" Deck (LAS28KA724, LAS28KA724N)
• Lazer Z AS SN 510,000 to 719,999 / SN 720,000 to 789,999
• Lazer Z AS EFI SN 510,000 to 789,999
EXMARK LAZER Z XS — Liquid-Cooled Kawasaki / Vanguard / DFI:
• Lazer Z XS 29HP Kawasaki Liquid-Cooled V-Twin 60" Deck (LXS29LKA605, LXSLKA605)
• Lazer Z XS 29HP Kawasaki Liquid-Cooled V-Twin 66.5" Deck (LXS29LKA665, LXSLKA665)
• Lazer Z XS 29HP Kawasaki Liquid-Cooled V-Twin 72" Deck (LXS29LKA725, LXSLKA725)
• Lazer Z XS 31HP Briggs & Stratton Vanguard V-Twin 60" Deck (LXS31BV605)
• Lazer Z XS 31HP Briggs & Stratton Vanguard V-Twin 66.5" Deck (LXS31BV665)
• Lazer Z XS 35HP Briggs & Stratton Vanguard V-Twin 66.5" Deck (LXS35BV665)
• Lazer Z XS 35HP Briggs & Stratton Vanguard V-Twin 72" Deck (LXS35BV725)
• Lazer Z XS Kawasaki DFI 72" Deck (LXSKD725)
• Lazer Z XS Liquid Cooled SN 600,000 and Up / SN 440,000 and Up
TORO Z MASTER Z555 — 60" TURBO FORCE:
• Z555 Z Master 60" TURBO FORCE Side Discharge Model 74245 (2004-2005)
TORO Z MASTER Z550 — 28HP Kawasaki V-Twin:
• Z550 Z Master 28HP Kawasaki V-Twin 52" TURBO FORCE Model 74271 (2008+)
• Z550 Z Master 28HP Kawasaki V-Twin 60" TURBO FORCE Model 74272 (2008+)
• Z550 Z Master 28HP Kawasaki V-Twin 60" TURBO FORCE Model 74272CP (Compliance)
• Z550 Z Master 28HP Kawasaki V-Twin 72" TURBO FORCE Model 74273 (2008+)
• Z550 Z Master 28HP Kawasaki V-Twin 72" TURBO FORCE Model 74273CP (Compliance)
TORO Z MASTER Z558 / Z587L — TURBO FORCE:
• Z558 Z Master 60" TURBO FORCE Side Discharge Model 74272 SN 270000001-270999999 (2007)
• Z587L Z Master 60" TURBO FORCE Side Discharge Model 74250 (2004)
• Z587L Z Master 60" TURBO FORCE Side Discharge Model 74251 (2004-2006)
• Z587L Z Master 72" TURBO FORCE Side Discharge Model 74252 (2004-2006)
TORO Z MASTER — Additional Models:
• Z Master Z500 SN 280000001 to 311999999
• Z Master Z557 SN 240000001 to 260999999
• Z Master Z560 SN 270000001 to 270999999
• Z Master Z588E SN 240000001 to 260999999

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 12.0 lbs.
  • W10.0000” x H10.0000” x L14.0000”
  • Free Shipping!
