Electric Pto Clutch Compatible With 1988-1991 Bolens St140 3114G 3114H 3214G 3214H Suburban Garden

X0497A1
OEM PART NUMBERS:
• Ogura: MA-GT-JD13AL / MAGTJD13AL

SPECIFICATIONS:

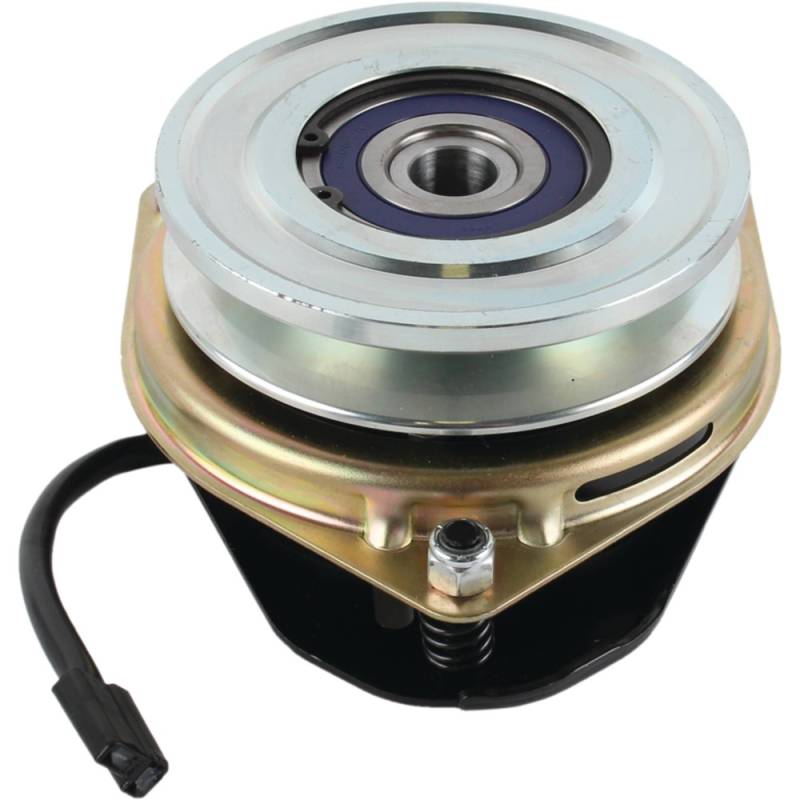

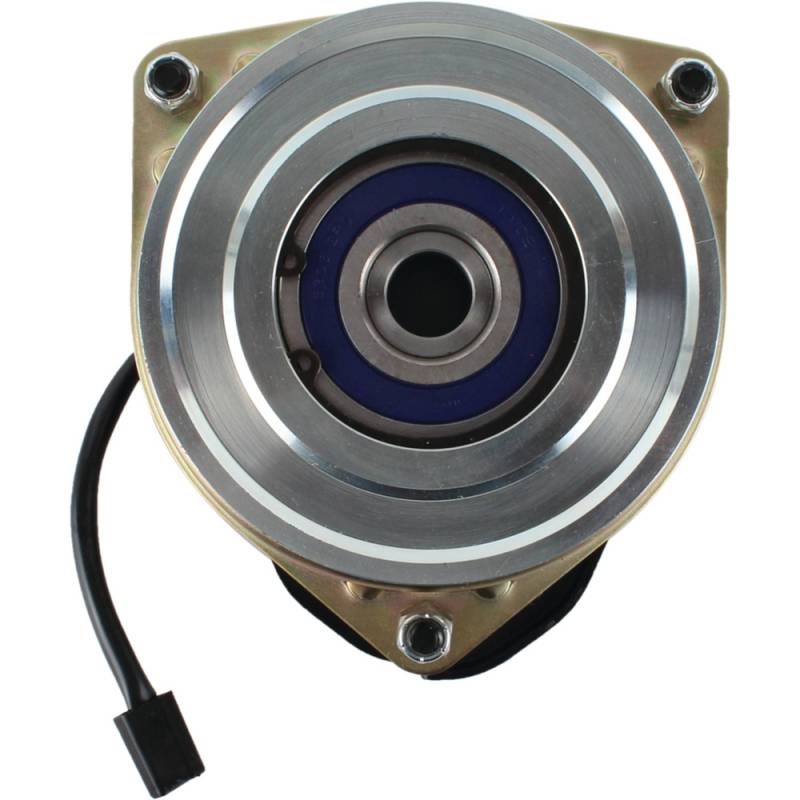

• Type: Electric PTO Clutch (Blade Engagement)
• OE Manufacturer: Ogura
• Shaft ID: 1 inch
• Pulley Diameter: 5-5/16 inch
• Belt Width: 1/2 inch or 5/8 inch
• Rotation: CCW (Counter Clockwise)
• Cool Coil Technology
• High Temperature Bearing Upgrade
• Replaceable Pulley Bearing

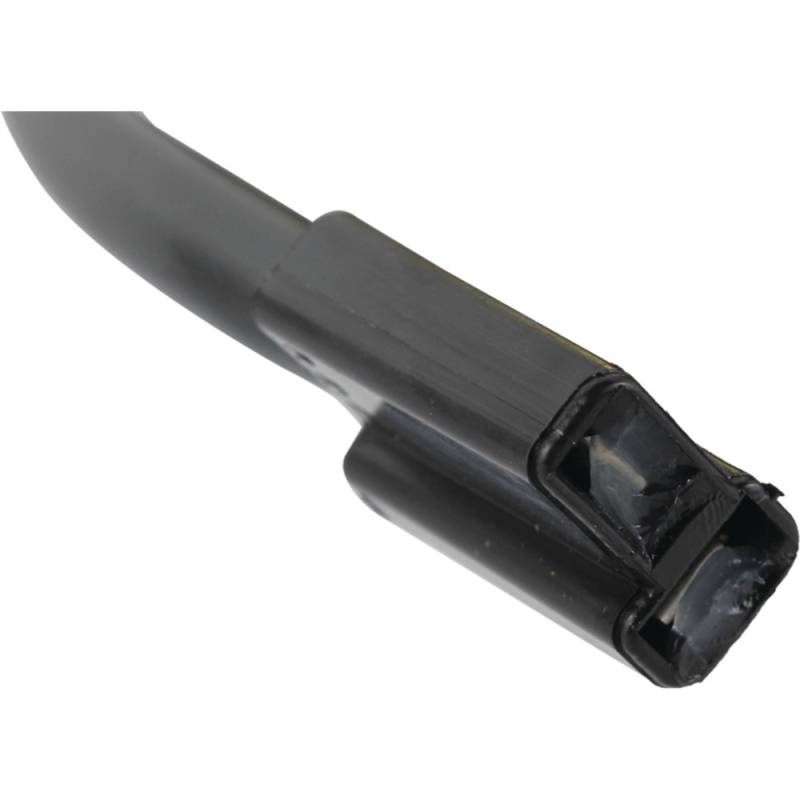

• Integrated Water-Tight Wire Harness
• Condition: New

APPLICATIONS SUMMARY:
• Bolens 3114G ST140 — Gear (1988-1989) — 14HP B&S 400707 Twin-Cyl 655cc
• Bolens 3114H ST140 Hydro — Hydrostatic (1988-1989) — 14HP B&S 400707
• Bolens 3214G ST140 — Gear (1990) — 14HP B&S 400707 Twin-Cyl
• Bolens 3214H ST140 Hydro — Hydrostatic (1990-1991) — 14HP B&S 400707

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $463.66
Sale: $264.95
Save: 43%
Save: $198.71
Qty:
Free Shipping!

Description

BOLENS ST140 SUBURBAN GARDEN TRACTORS (1988-1989):
• 3114G ST140 — 14HP Briggs & Stratton 400707 Twin-Cyl 655cc, Gear Transmission (1988-1989)
• 3114H ST140 Hydro — 14HP Briggs & Stratton 400707 Twin-Cyl 655cc, Hydrostatic (1988-1989)

BOLENS ST140 SUBURBAN GARDEN TRACTORS (1990-1991):
• 3214G ST140 — 14HP Briggs & Stratton 400707 Twin-Cyl, Gear Transmission (1990)
• 3214H ST140 Hydro — 14HP Briggs & Stratton 400707 Twin-Cyl, Hydrostatic Eaton 750 (1990-1991)

ENGINE SPECIFICATIONS — BRIGGS & STRATTON 400707:
• Type: 4-Cycle Twin-Cylinder Vertical-Shaft Air-Cooled Gasoline
• Displacement: 40.1 CID / 655cc
• Bore x Stroke: 3.48" x 2.16" (87mm x 55mm)
• Maximum Power: 14HP (10.4 kW) at 3600 RPM
• Spark Plug: Champion J8 (Gap 0.030")

TRACTOR SPECIFICATIONS:
• Series: Suburban / Factory: Port Washington, Wisconsin
• PTO: Independent Mid-PTO / Electric Clutch / 3600 RPM
• Chassis: 4x2 2WD / Manual Steering / Disc Brakes
• Fuel Tank: 5.0 gal (18.9L) | Weight: ~515 lbs (233 kg)
• Attachments: Mower Deck, Snow Blower, Front Blade

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 12.0 lbs.
  • W10.0000” x H10.0000” x L14.0000”
  • Free Shipping!
