REPLACES OEM PART NUMBERS:
• B&S: 845126 (Current / Supersedes 843327)
• B&S: 843327 (Original)
• B&S: 843932 (Equivalent Cross-Reference)
• All Numbers Fully Interchangeable
SPECIFICATIONS:

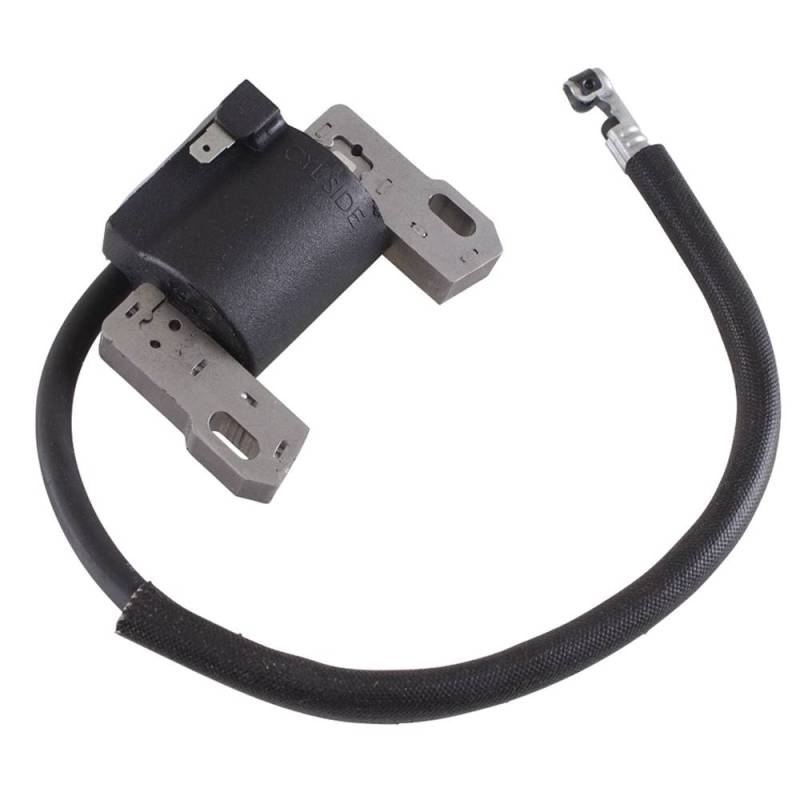

• Type: Ignition Coil / CDI (Capacitive Discharge Ignition)
• Engine Type: Vanguard Big Block V-Twin, 4-Cycle, OHV, Air-Cooled
• Displacement: 895cc (54.6 Cu In) / 993cc (60.6 Cu In)
• Bore: 86mm (3.4") / Stroke: 78mm (895cc) or 87mm (993cc)
• Horsepower: 25-40HP (Commercial Grade)
• Shaft: Horizontal & Vertical, 1-1/8" Diameter
• Air Gap: 0.010-0.014" (0.25-0.36mm)
• Condition: Brand New / Aftermarket
VANGUARD BIG BLOCK V-TWIN — 993cc (60.6 Cu In, 33-40HP):
• 611477 (33HP) / 613477 (35HP) / 614275 / 614277
• 61E377 / 61E477
• 610177 / 611475 / 613777
• 86mm Bore × 87mm Stroke / OHV / 4-Cycle
• Horizontal & Vertical Shaft Configurations
VANGUARD BIG BLOCK V-TWIN — 895cc (54.6 Cu In, 25-33HP):
• 540477 / 541477 / 541777 / 542477 / 542777
• 543277 / 543477 / 543777
• 473177 / 474177
• 86mm Bore × 78mm Stroke / OHV / 4-Cycle
ADDITIONAL COMPATIBLE ENGINES:
• 295342 / 295346 / 295347
• 303442
COMMERCIAL EQUIPMENT APPLICATIONS:
• Scag: Turf Tiger II 61", V-Ride II 61" (35-40HP)
• Hustler: HyperDrive 72", Super Z (40HP)
• Ferris: IS3200Z (37HP EFI, Heavy-Duty Suspension)
• Also Fits: Exmark, Gravely, and Other Commercial ZTR Mowers
• Primarily Zero-Turn Radius (ZTR) Commercial Mowers
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
