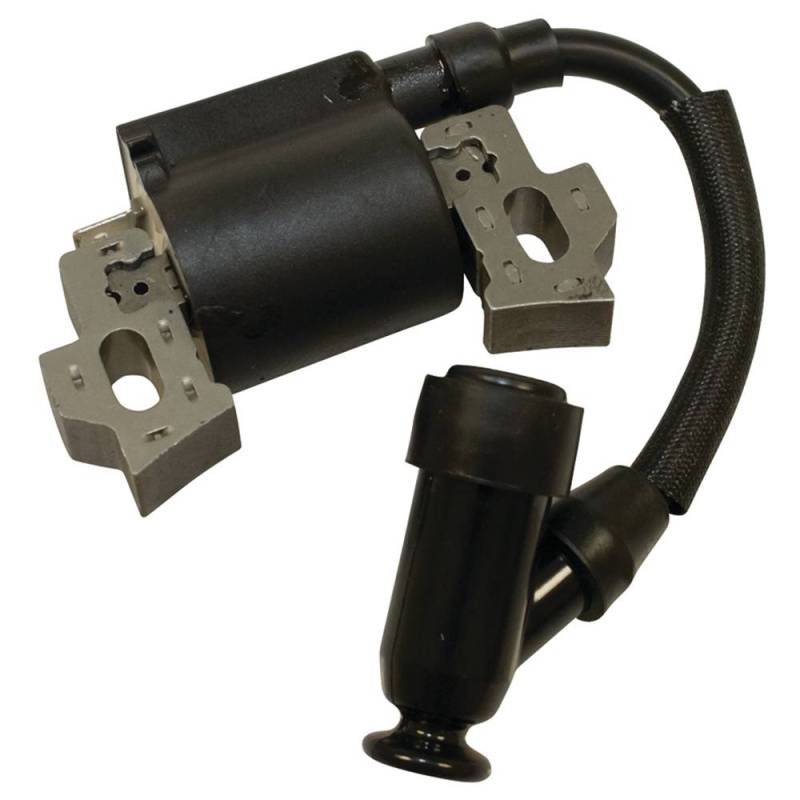

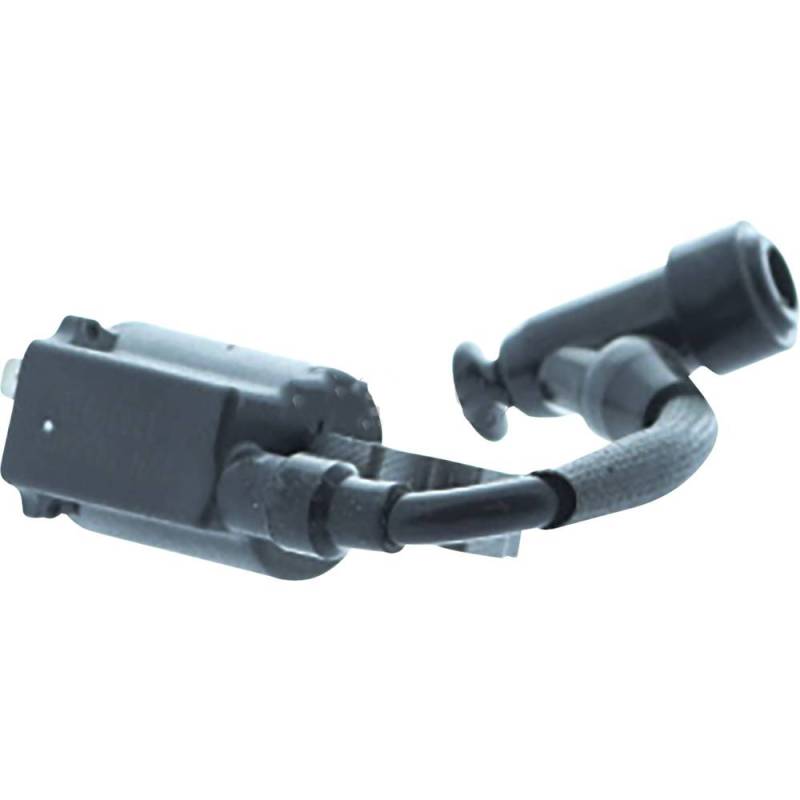

Ignition Coil Compatible With Gravely 911260 911261 911262 911263 911264 911265 Walk-Behind Mower

REPLACES OEM PART NUMBERS:
• Kohler: 14 584 04-S / 1458404-S
• Kohler: 14 584 16-S / 1458416-S
• 14-584-16-S Supersedes 14-584-04-S
• All Numbers Fully Interchangeable

SPECIFICATIONS:
• Type: Solid State Ignition Coil / Electronic Magneto
• Engine Type: Single-Cylinder, 4-Cycle, OHV, Air-Cooled
• Flywheel: Cast Iron (NOT for Aluminum Flywheel)
• Condition: Brand New / Aftermarket
• Includes: Coil, Cable, Boot Cap, Module

KOHLER ENGINE COMPATIBILITY:
• XT650 — 6.5HP, 149cc, Bore 65mm × Stroke 45mm, 8.8 ft-lbs Torque
• XT675 — 6.75HP, 149cc, Bore 65mm × Stroke 45mm, 9.2 ft-lbs Torque
• XT775 — 7.75HP, 173cc, Bore 70mm × Stroke 45mm, 10.5 ft-lbs Torque
• XT800 — 8.0HP, 173cc OHV
• XT149, XT173 — Displacement-Based Designations
• HD675, HD775 — Heavy-Duty Variants
• Compression Ratio: 9.2:1 (149cc) / 8.5:1 (173cc)

KOHLER ENGINE MODEL NUMBERS:
• XT650-2036 / XT650-2037 / XT650-3012
• XT675-2036 / XT675-2037 / XT675-2070 / XT675-2075 / XT675-3012
• XT775-2036 / XT775-2037
• XT173-0084
• HD675-3012 / HD775-3004

EQUIPMENT APPLICATIONS:
• Ariens: 10 Walk-Behind Mowers (911160-911361, 946152, 961361)
• Gravely: 6 Walk-Behind Mowers (911260-911265)
• Craftsman: 6 Walk-Behind Mowers (247/917 Series)
• Husqvarna: 13 Walk-Behind Mowers (HU675AWD, XT721F, XT722FE + More)
• Huskee: 4 Walk-Behind Mowers / Jonsered: 1 Mower
• Toro: 4 Recycler Mowers (20370, 20371, 20377, 20378)
• MTD Pro: 8 Walk-Behind Mowers (11A/12A Series)
• Yard Machines: 1 Mower / Yardman: 2 Mowers

PRODUCT NOTICE:
