OEM PART NUMBERS:
• Stihl: 1123 120 0605 / 11231200605
• Stihl: 1123 120 0603 / 11231200603
• Walbro: WT-215-1 / WT2151
• Walbro: WT-215 / WT215
• Walbro: WT-286 / WT286
SPECIFICATIONS:
• Type: Carburetor (Complete Assembly)
• Engine: 35.2cc-45.4cc Two-Stroke
• Mounting: 31mm Center to Center
• Throttle Bore: 15.9mm
• Choke Bore: 19mm
• Venturi: 13.5mm
• Fuel Inlet: 4.1mm
• Ethanol: Not Compatible with >10%
• Condition: New | OEM Package
APPLICATION:
• 021/MS210/MS210C Chainsaw (35.2cc)
• 023/MS230/MS230C Chainsaw (40.2cc)
• 025/MS250/MS250C Chainsaw (42.5cc-45.4cc)
• Reference Walbro part number on carburetor for proper ordering

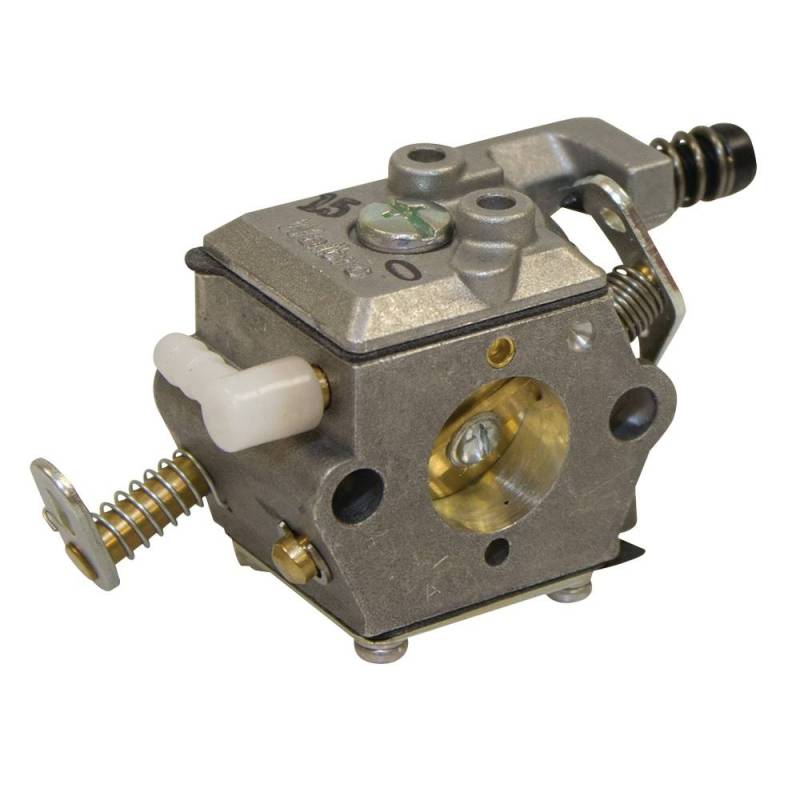

Carburetor for MS210/MS230/MS250 Series Chainsaws
OEM-quality carburetor for MS210, MS210C, MS230, MS230C, MS250, MS250C and legacy 021, 023, 025 chainsaws. Replaces 1123 120 0603 and Walbro WT-286, WT-215. 15.9mm throttle bore with 19mm choke bore and 13.5mm venturi diameter. Factory-tuned carburetor arrives ready for installation. Max 10% ethanol fuel.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
