Carburetor Compatible With Gx200 Gx200u 196Cc 6.5Hp Single Cylinder Ohv Horizontal Shaft Generator

OEM PART NUMBERS:
• Honda: 16100-ZL0-W51 / 16100ZL0W51 (Honda Code BE64B B/C)

SPECIFICATIONS:
• Type: Carburetor — Horizontal Type Butterfly Valve
• Throttle Bore: 19mm
• Engine: GX200 / GX200U
• Configuration: Single Cylinder OHV 4-Stroke Air-Cooled Horizontal Shaft
• Displacement: 196cc (12.0 cu in)
• Bore: 68.0mm (2.68 in)
• Stroke: 54.0mm (2.13 in)
• Horsepower: 6.5HP (Formerly Rated) / 5.5 HP Net (4.1 kW) at 3,600 RPM
• Max Torque: 12.4 N·m (9.1 ft·lb) at 2,500 RPM
• Compression Ratio: 8.5:1
• Lubrication: Splash
• Oil Capacity: 20 oz (0.58L)
• Ignition: Transistorized Magneto
• Air Cleaner: Dual Element
• Block: Cast Iron Cylinder Sleeve
• Crankshaft: Forged Steel, Ball Bearing Supported, 3/4" x 2-7/16" Keyed
• Dry Weight: 35 lbs (15.9 kg)
• Ethanol: Not Compatible with Greater Than 10% Ethanol Fuel
• Condition: New

APPLICATION:
• GX200 / GX200U 196cc 6.5HP Single Cylinder OHV Horizontal Shaft
• Generators, Pressure Washers, Water Pumps, Air Compressors
• Tillers, Log Splitters, Construction Equipment, Concrete Saws
• Go-Karts, Mini Bikes, Reel-Type Lawn Mowers, Agricultural Equipment
• Does not fit all GX200 applications — verify OEM part number from original unit

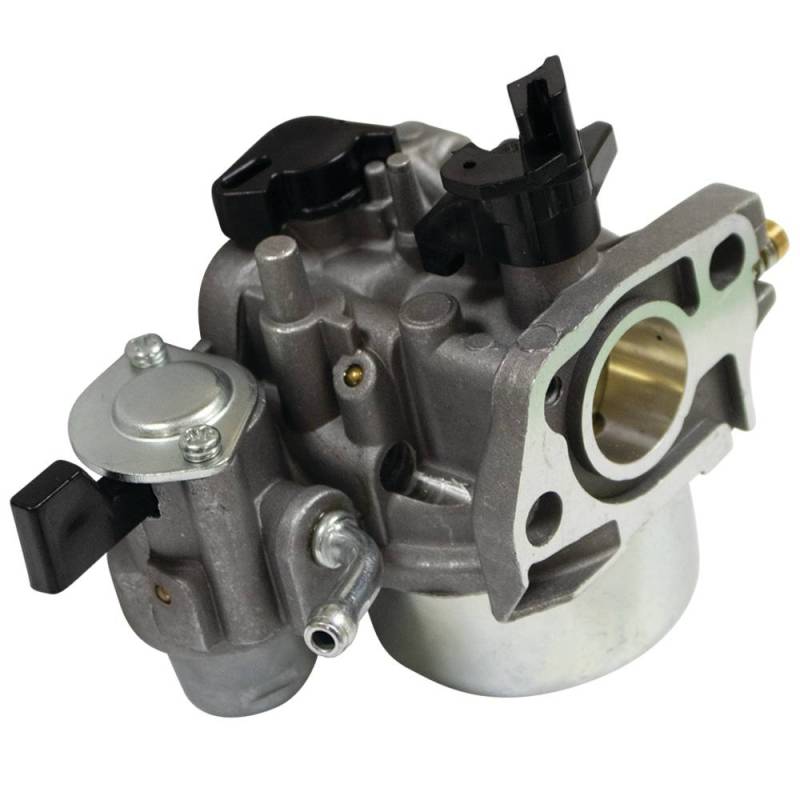

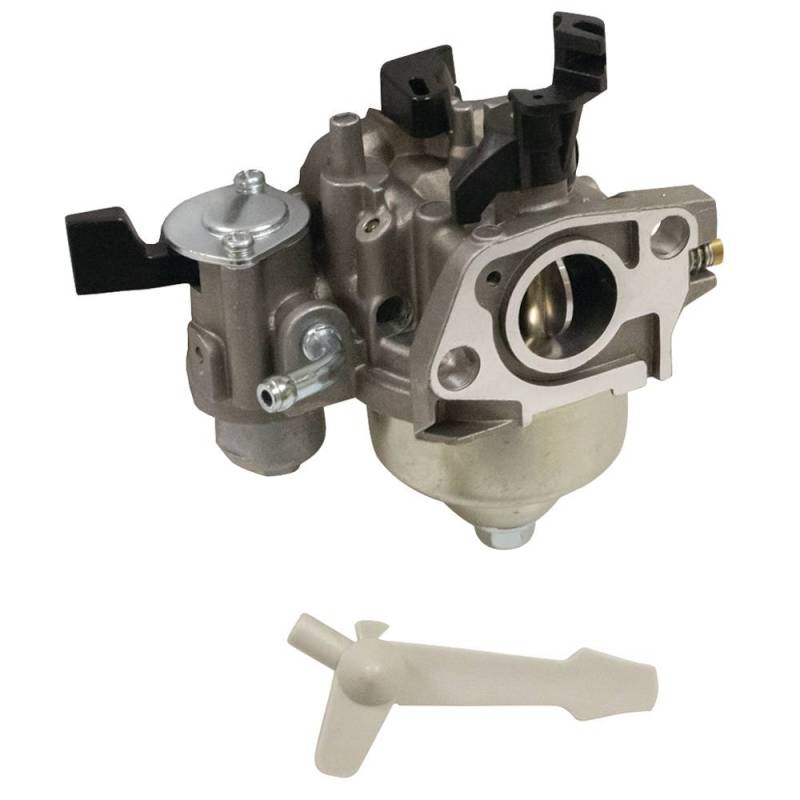

GX200 Engine Carburetor — Honda 16100-ZL0-W51
New replacement carburetor for Honda GX200 and GX200U engines. Direct replacement for Honda 16100-ZL0-W51 (Honda Code BE64B B/C). 196cc single cylinder OHV 4-stroke air-cooled horizontal shaft engine rated at 6.5HP. Horizontal type butterfly valve carburetor with 19mm throttle bore. 68.0mm bore, 54.0mm stroke, 8.5:1 compression. Splash lubrication. Dual element air cleaner. Not compatible with greater than 10% ethanol fuel.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
