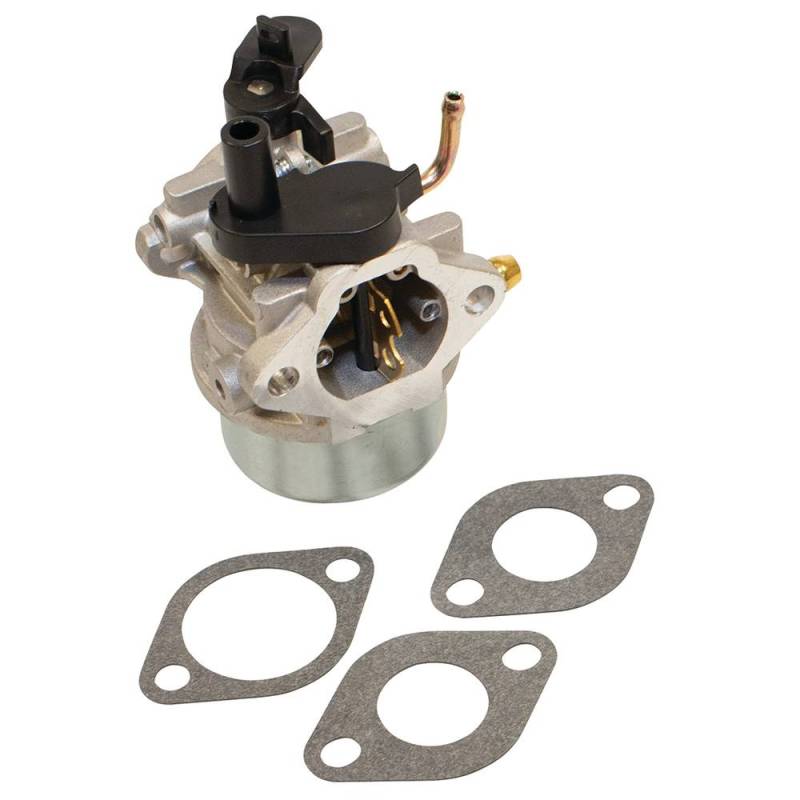

Carburetor Compatible With 38610 38611 38583 38600 Ccr 2450 Power Clear Snow Commander R-Tek 141Cc

OEM PART NUMBERS:
• Briggs & Stratton: 801233 (superseded by 801396)
• Briggs & Stratton: 801255 (superseded by 801396)
• Briggs & Stratton: 801396 (current)

SPECIFICATIONS:
• Type: Carburetor — R-TEK 2-Cycle (2-Stroke) Single Cylinder
• Configuration: Air-Cooled
• Displacement: 141cc
• Power: 5.5-7.0 HP (varies by application)
• Mounting Hole Distance: 42mm (1.65") Center to Center
• Central Bore Diameter: 28mm (1.1")
• Fuel Nozzle OD: 8mm (0.31")
• Primer Port OD: 4.6mm (0.18")
• Ignition: Electronic
• Start: Recoil
• Governor: Air-Vane
• Fuel Capacity: 1.1 Quarts
• Ethanol: Not Compatible with Greater Than 10% Ethanol Fuel
• Condition: New

APPLICATION:
• 38610 CCR 2450 / 38611 CCR 2450 GTS / 38583 Power Clear 221QR / 38600 Snow Commander
• Engine Models: 084132 / 084133 / 084232 / 084233 / 084332 / 084333 Series
• Does not fit all applications — verify OEM part number

R-TEK 2-Cycle Snowthrower Carburetor — 801233 / 801255 / 801396
New carburetor for Briggs & Stratton R-TEK 2-cycle engines in Toro snowthrowers. Replaces 801233 and 801255, both superseded by 801396. Fits CCR 2450, CCR 2450 GTS, Power Clear 221QR, and Snow Commander models. Compatible with 084132 through 084333 series engines. 141cc single cylinder air-cooled 2-stroke. Mounting hole distance 42mm center to center. Central bore 28mm diameter.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
