OEM PART NUMBERS:
• Kohler: 12 853 118-S / 12853118S
• Kohler (superseded): 12 853 107-S / 12853107S
• Kohler (superseded): 12 853 104-S / 12853104S
SPECIFICATIONS:
• Type: Carburetor Kit with Gaskets
• Throttle Bore: 26mm (1.07")
• Engine Series: Kohler Command Single Cylinder
• Engine Models: CV460, CV460S, CV461, CV490, CV491, CV492, CV493
• Horsepower: 17-18 HP (12.7-12.9 kW)
• Displacement: 490cc (29.9 cu in)
• Bore x Stroke: 90.0mm x 77.0mm
• Compression Ratio: 8.5:1
• Max Torque: 37.8-40.1 Nm (27.9-28.2 ft-lbs)
• Fuel Pump: Diaphragm Type Mechanical
• Ethanol: Not compatible with greater than 10% ethanol fuel
• Condition: New
APPLICATION:
• Kohler Command CV460/CV461 and CV490/CV491/CV492/CV493 engines
• Toro TimeCutter 74601/74603/74701/74702 zero-turn riding mowers
• Riding mowers, lawn tractors, and zero-turn mowers with Kohler Command 17-18HP engines
• Verify engine model, spec, and serial number on data plate before ordering

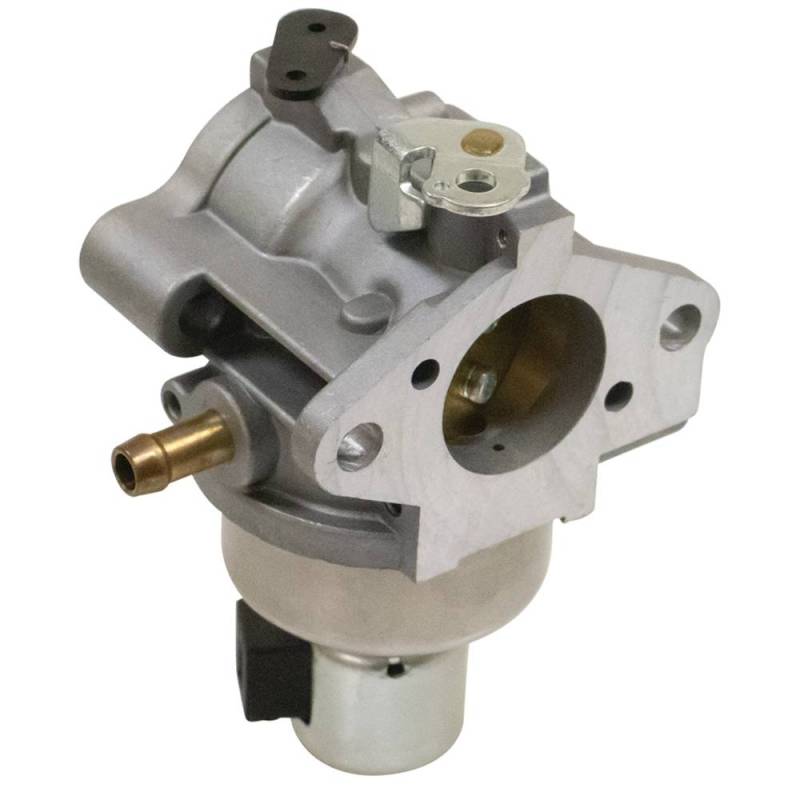

Replacement Carburetor Kit - Kohler 12 853 118-S
New carburetor kit for Kohler Command single cylinder 490cc engines CV460 through CV493 producing 17 to 18 HP. Direct replacement for Kohler 12 853 118-S and superseded numbers 12 853 107-S and 12 853 104-S. Fits Toro TimeCutter 74601, 74603, 74701, 74702 zero-turn mowers and other riding equipment. Float fixed main jet carburetor with 26mm throttle bore and diaphragm mechanical fuel pump. Not compatible with greater than 10% ethanol fuel.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
