OEM PART NUMBERS:
• AYP/Husqvarna: 174356 / 532174358
• AYP/Husqvarna: 539107515 / 587125201
SPECIFICATIONS:
• Type: Deck Spindle Assembly

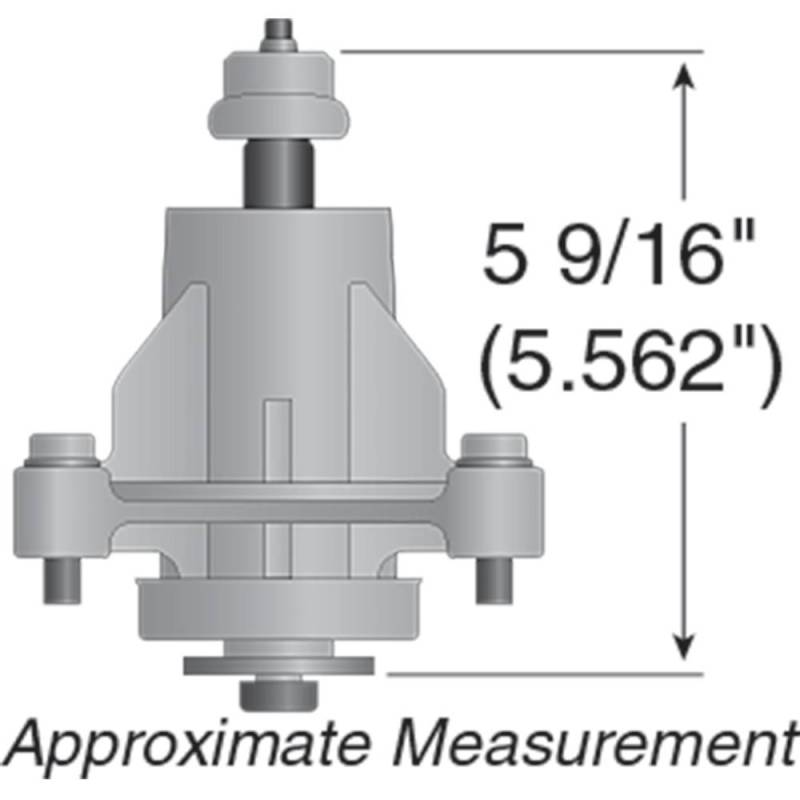

• Height: 5-9/16" (141mm)
• Mounting Hole Distance: 5-5/8" (143mm)
• Housing: 4-Bolt Short Housing
• Shaft Mount: 5-Point Star Center Hole
• Grease Fitting: Yes (threaded end)
• Deck Sizes: 46", 48", 54"
• Year Range: 2002 and Newer
• Condition: New
APPLICATION:
• Craftsman DYT4000 / 917276010 / 917276070 / 917276310 / 917276360 Series — 48-Inch Deck
• Husqvarna YTH2748 / Z4822 — 48-Inch Deck

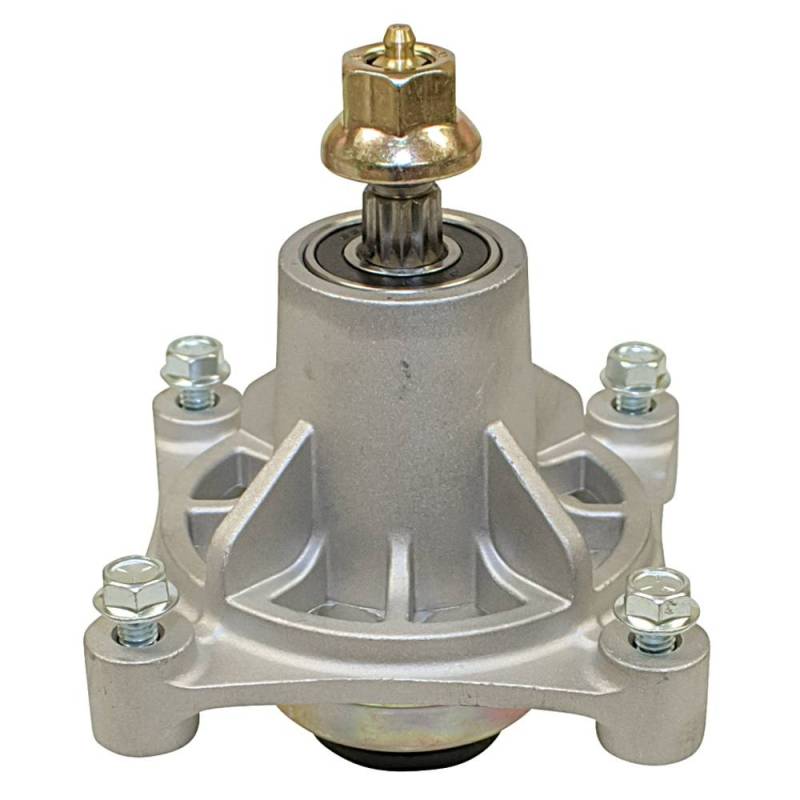

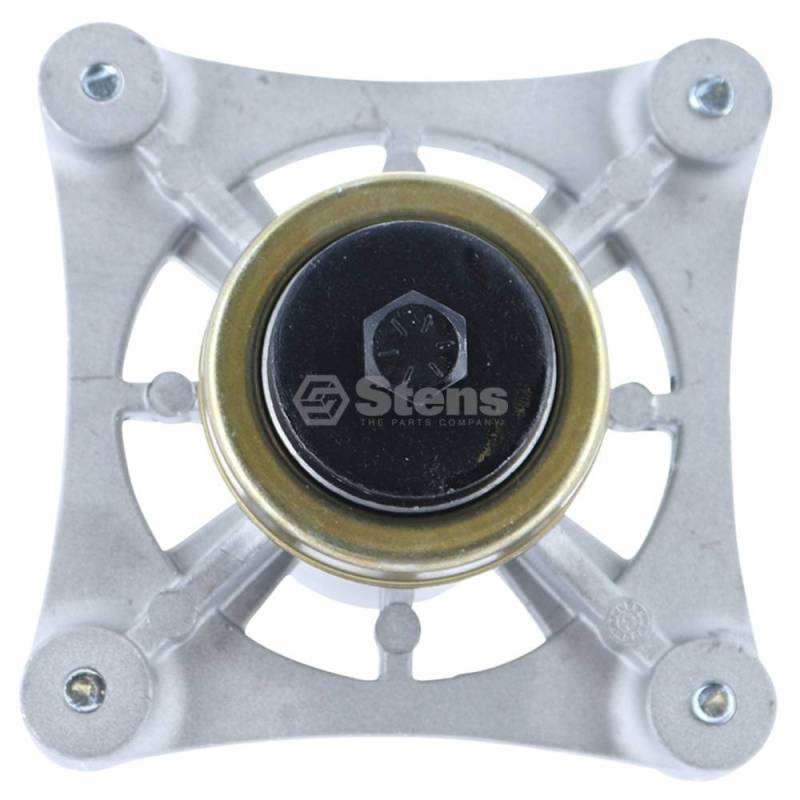

Craftsman DYT4000 917276 Series Husqvarna YTH2748 Z4822 Deck Spindle Assembly — 174356 532174358
Deck spindle assembly for Craftsman DYT4000, 917276010, 917276070, 917276310, and 917276360 series, and Husqvarna YTH2748 and Z4822. Replaces OEM 174356 and 532174358. Height 5-9/16", 4-bolt housing, 5-point star blade mount.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
