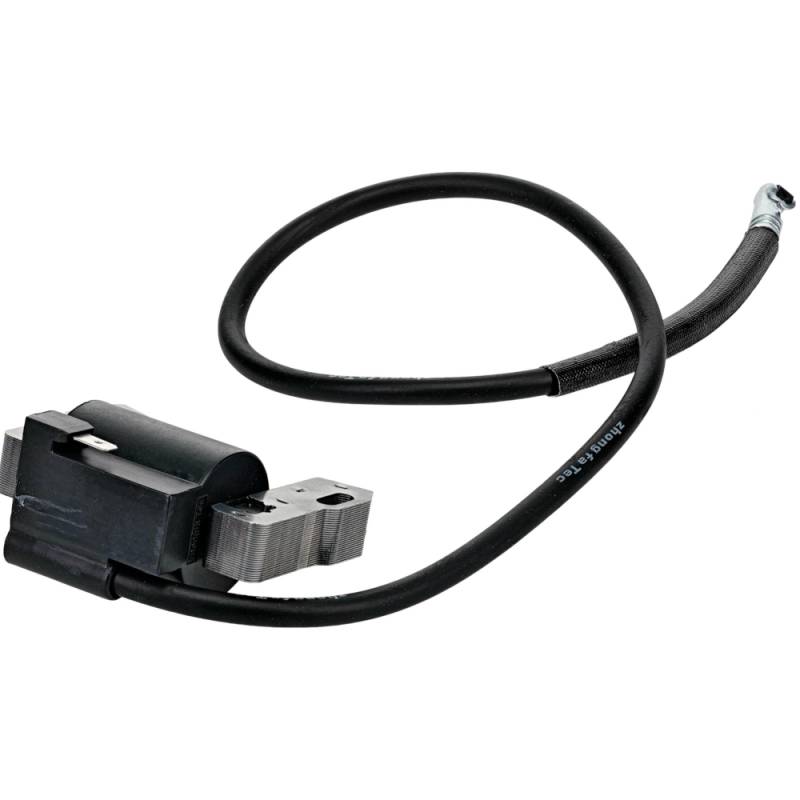

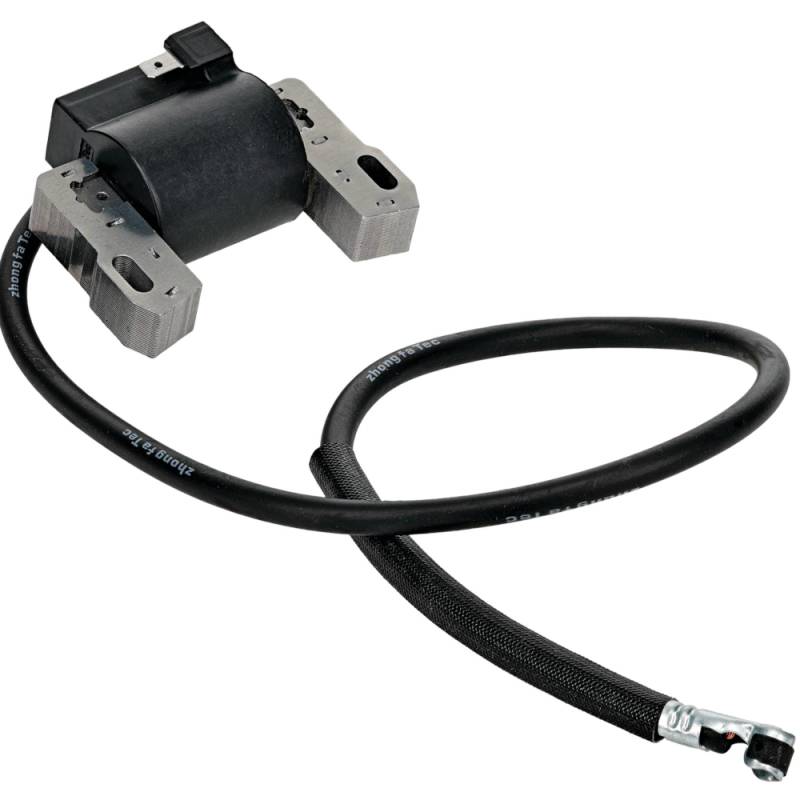

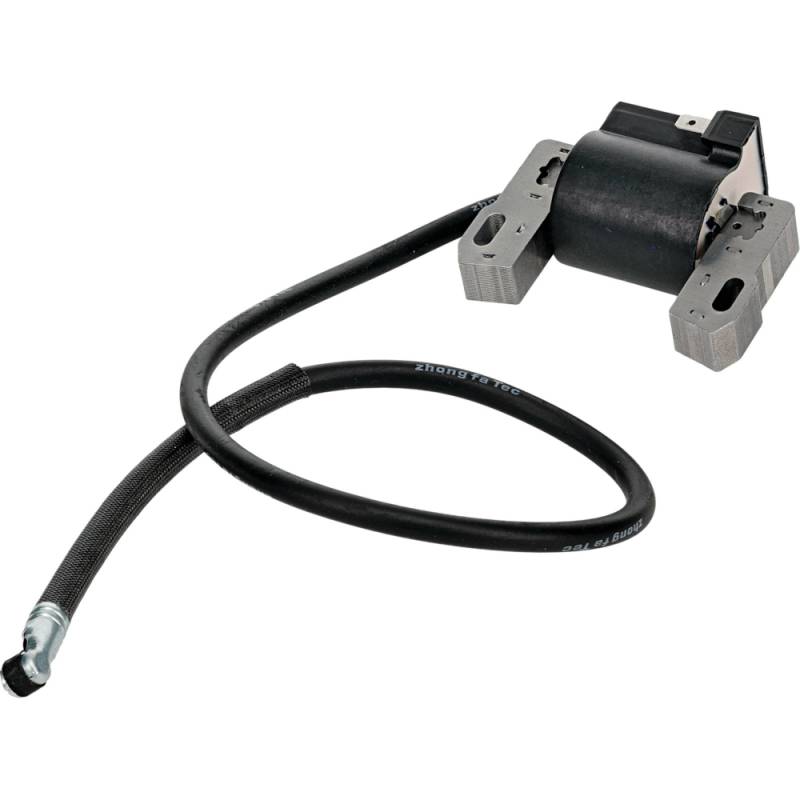

Solid State Ignition Module Compatible With Briggs Stratton 220707 233451 252707 253707 254427 22 25

(0) Reviews: Write first review
440-417A8
OEM PART NUMBERS:
• Briggs & Stratton: 393993 / 394963 / 395326 / 395492 / 398265 / 398811
• Toro: PT15339
• All Numbers Fully Interchangeable

SPECIFICATIONS:
• Type: Solid State Ignition Module (Magnetron)
• Engine Type: Single-Cylinder L-Head (Side Valve)
• HP Range: 7-16HP
• Displacement Range: 17-32 cu.in. (275-531cc)
• Cycle: 4-Stroke
• Condition: New

ENGINE DISPLACEMENT RANGES:
• 17 cu.in. (275-290cc) — 171432-176452 — 6-7HP
• 19 cu.in. (~315cc) — 190412-198707, 19E412 — 8HP
• 22 cu.in. (~361cc) — 220702-221437 — 10HP
• 23 cu.in. (~380cc) — 233411-233451 — 11HP
• 25 cu.in. (399cc) — 252412-254427 — 11HP
• 32 cu.in. (531cc) — 326432 — 14-16HP

EQUIPMENT APPLICATIONS:
• Ariens: 935005, 935009, 935019 (YT Riders); 925015 (Emperor 30"); 927032, 927037 (Snow); 901027
• Craftsman: 917255732 (Riding Tractor 38-42")
• Yardman: 13A325402, 13A328402, 13B325401
• Snapper: 300812B
• Toro: 30102, 30108, 30111 (Snow); 55600-57360, 58170 (Mowers)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $88.17
Sale: $50.38
Save: 43%
Save: $37.79
Qty:
Free Shipping!

Description

BRIGGS & STRATTON 17 CU.IN. L-HEAD (275-290cc, 6-7HP):
• 171432
• 176432 / 176437 / 176452
• Bore: 3.00" × Stroke: 2.38-2.50", Vertical Shaft, L-Head

BRIGGS & STRATTON 19 CU.IN. L-HEAD (~315cc, 8HP):
• 190412 / 191700 / 191702
• 192402 / 192412 / 192417 / 192432
• 195432 / 195702
• 196402 / 196412 / 196417 / 196427 / 196432 / 196436 / 196437 / 196707
• 197402 / 197412 / 197415 / 197417
• 198707 / 19E412
• Bore: 3.00" × Stroke: 2.72", Horiz/Vert Shaft, L-Head

BRIGGS & STRATTON 22 CU.IN. L-HEAD (~361cc, 10HP):
• 220702 / 220707 / 221437
• Bore: 3.44" × Stroke: 2.38", Vertical Shaft, L-Head

BRIGGS & STRATTON 23 CU.IN. L-HEAD (~380cc, 11HP):
• 233411 / 233431 / 233451
• Bore: 3.44" × Stroke: 2.48", Vertical Shaft, L-Head

BRIGGS & STRATTON 25 CU.IN. L-HEAD (399cc, 11HP):
• 252412 / 252417 / 252702 / 252707
• 253707 / 254412 / 254422 / 254427
• Bore: 3.44" × Stroke: 2.63", Vertical Shaft, L-Head

BRIGGS & STRATTON 32 CU.IN. L-HEAD (531cc, 14-16HP):
• 326432
• Bore: 3.5625" × Stroke: 4.25", L-Head
• Max Torque: 25.8 ft-lbs @ 2,700 RPM

ARIENS RIDING MOWERS:
• 935005 — YT1132, 32" Deck, 11HP
• 935009 — YT1138, 38" Deck, 11HP, Gear Trans
• 935019 — YT1232, 32" Deck, 12HP

ARIENS REAR-ENGINE & SNOW:
• 925015 — Emperor 30" Rear-Engine Rider, 8HP
• 927032 / 927037 — Snow Blowers
• 901027 — Walk-Behind Mower

CRAFTSMAN:
• 917255732 — Front-Engine Riding Tractor, 38-42" Deck, 11HP

YARDMAN (MTD):
• 13A325402 / 13A328402 / 13B325401 — Lawn Tractors

SNAPPER:
• 300812B — Riding Mower

TORO (PT15339):
• 30102 / 30108 / 30111 — Snow Blowers
• 55600-57360 Series / 58170 — Rear & Riding Mowers

NOTE: Verify your engine model number (stamped on the blower housing or valve cover) to confirm compatibility. This module fits B&S single-cylinder L-Head engines from 7HP through 16HP across horizontal and vertical shaft configurations.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.8 lbs.
  • W4.0000” x H4.0000” x L6.0000”
  • Free Shipping!
