Zero Turn Mower Spindle Assembly Compatible With Z Master Z449 Z450 Z453 Z500 Z528 48 52 60 Inch

OEM PART NUMBERS:
• Toro: 107-8504

SPECIFICATIONS:
• Product Type: Spindle Assembly

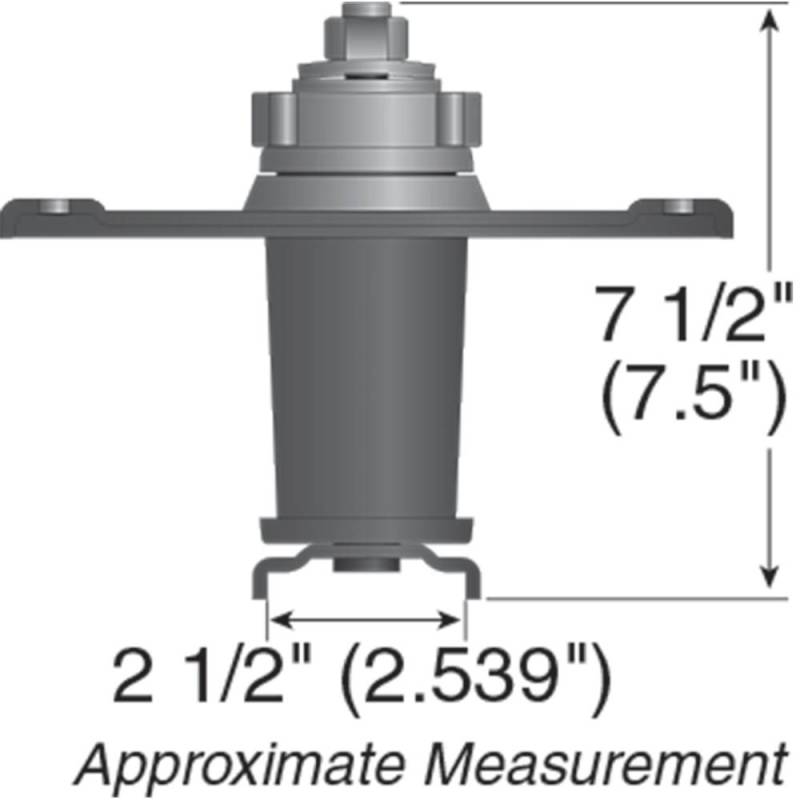

• Overall Height: 7-1/2"
• Housing OD: 9-3/8"
• Housing: Aluminum Die Cast
• Includes: Grease Zerk
• Housing: No Threads (Use Self-Tapping Screws)
• Deck Sizes: 48", 52", 60"
• Deck Type: Turbo Force / 7-Gauge Side Discharge
• Condition: New

APPLICATION:
• Z400 Series: Z400, Z410, Z441, Z449 (48"/52"/60" Deck)
• Z500 Series: Z450, Z453, Z500, Z528 (48"/52"/60" Deck)
• GrandStand (52" Deck)
• 28 model configurations covered
• Verify OEM part number before ordering

Spindle Assembly for Toro Z Master Z400 Z500 Series and GrandStand Zero Turn Mowers
Direct replacement spindle assembly for Toro Z Master Z400 Series, Z500 Series, and GrandStand commercial zero turn mowers with 48", 52", and 60" Turbo Force and 7-gauge side discharge cutting decks. Features 7-1/2" overall height, 9-3/8" housing OD, and heavy-duty aluminum die cast housing construction. Includes grease zerk for easy maintenance. No threads in housing — use self-tapping screws for mounting. Over 28 model configurations covered across Z400, Z410, Z441, Z449, Z450, Z453, Z500, Z528, and GrandStand platforms. Replaces Toro OEM part number 107-8504.
