Spindle Assembly With Pulley Compatible With Lazer Z Xp Xs Air Cooled Liquid Cooled 60 72 Inch Deck

OEM PART NUMBERS:
• Exmark: 103-3206
• Exmark: 103-8323
• Exmark: 103-8075
• Exmark: 103-3200

SPECIFICATIONS:
• Product Type: Spindle Assembly with Pulley
• Pulley OD: 8"
• Overall Height: 6-3/4"
• Keyway: 1/4"
• Blade Bolt: 5/8" x 2-3/4"
• Includes: Blade Bolt, Cup Washer, Nut, Dust Cover, Grease Zerk, Relief Valve
• Deck Sizes: 60", 72"
• Condition: New

APPLICATION:
• Exmark Lazer Z Air Cooled 26/27/28HP Kohler (72" Deck)
• Exmark Lazer Z Liquid Cooled 27HP Kawasaki (72" Deck)
• Exmark Lazer Z XP 27HP Daihatsu Diesel / 31HP Daihatsu Gas (60"/72" Deck)
• Exmark Lazer Z XS 31HP Briggs Vanguard (72" Deck)
• Verify OEM part number and serial number from your original unit before ordering

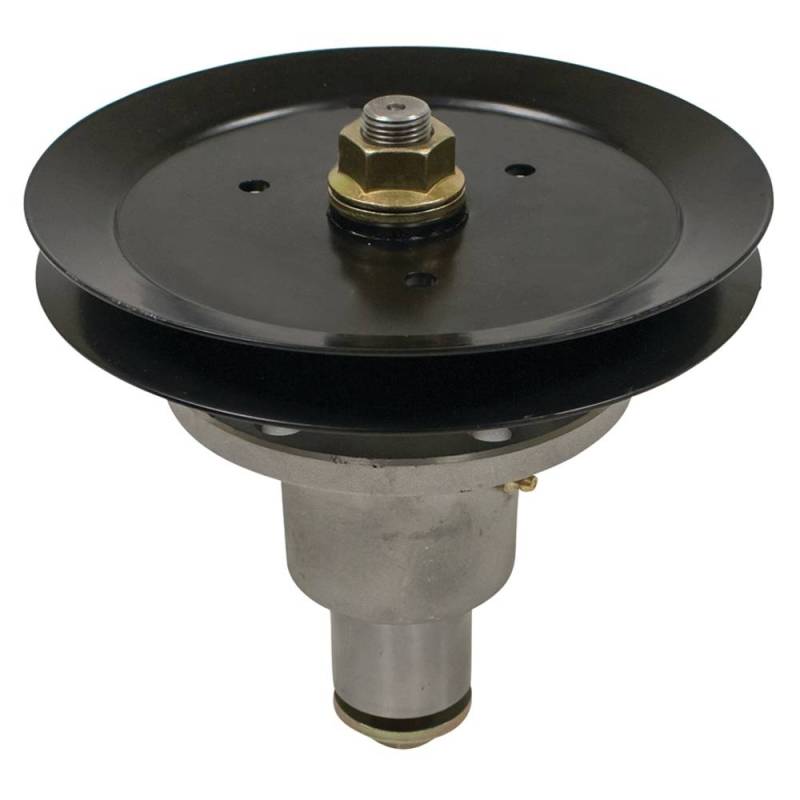

Spindle Assembly with Pulley for Exmark Lazer Z XP XS Air Cooled Liquid Cooled Zero Turn Mowers
Direct replacement spindle assembly with 8" pulley for Exmark Lazer Z series commercial zero turn mowers with 60" and 72" cutting decks. Features 6-3/4" overall height, 1/4" keyway, and 5/8" x 2-3/4" blade bolt. Complete assembly includes blade bolt, cup washer, nut, dust cover, grease zerk, and relief valve. Fits Lazer Z Air Cooled (Kohler Command 26/27/28HP), Lazer Z Liquid Cooled (Kawasaki 27HP), Lazer Z XP (Daihatsu Diesel 27HP and Daihatsu Gas 31HP), and Lazer Z XS (Briggs Vanguard 31HP). Replaces Exmark OEM part numbers 103-3206, 103-8323, 103-8075, and 103-3200.
