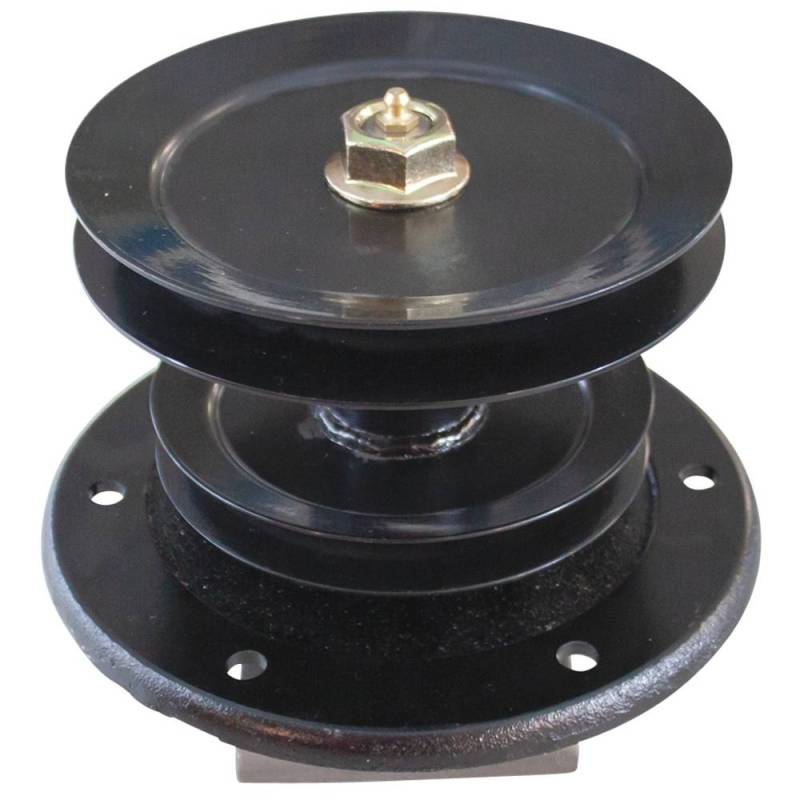

Center Spindle Assembly Compatible With Toro Z Master Z252l Z253 Z255 62 Inch Sfs Deck Zero Turn

OEM PART NUMBERS:
• Toro: 105-1688
SPECIFICATIONS:
• Type: Center/Middle Spindle Assembly (Double Pulley)
• Housing: Cast Iron

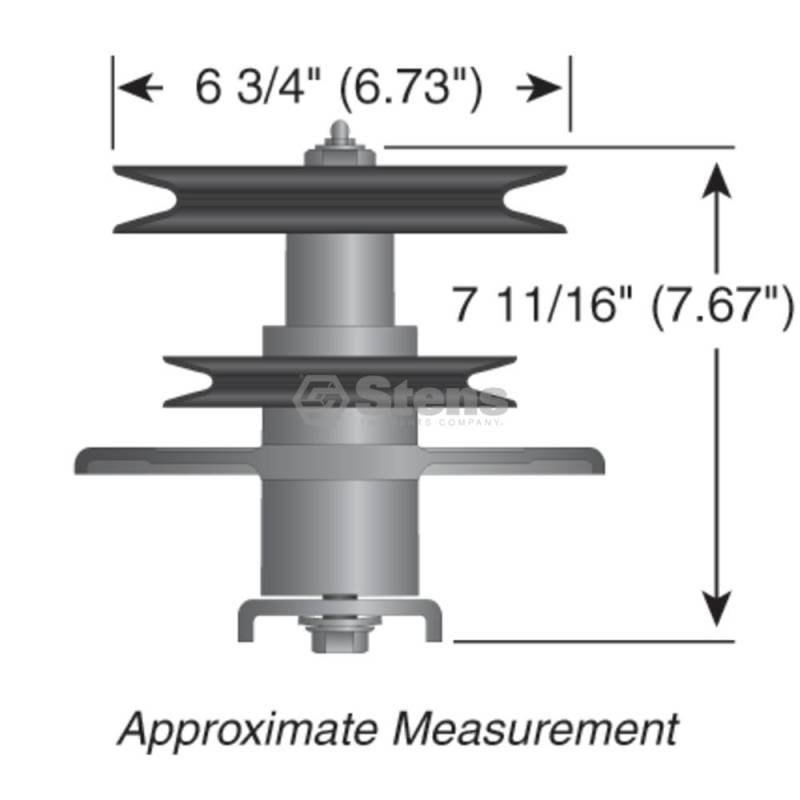

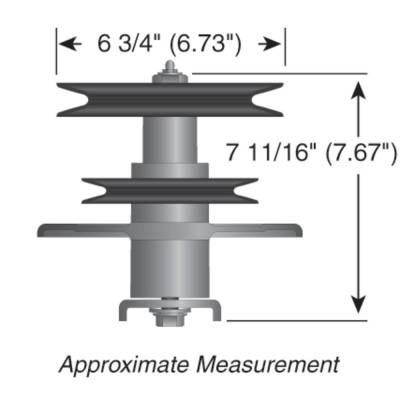

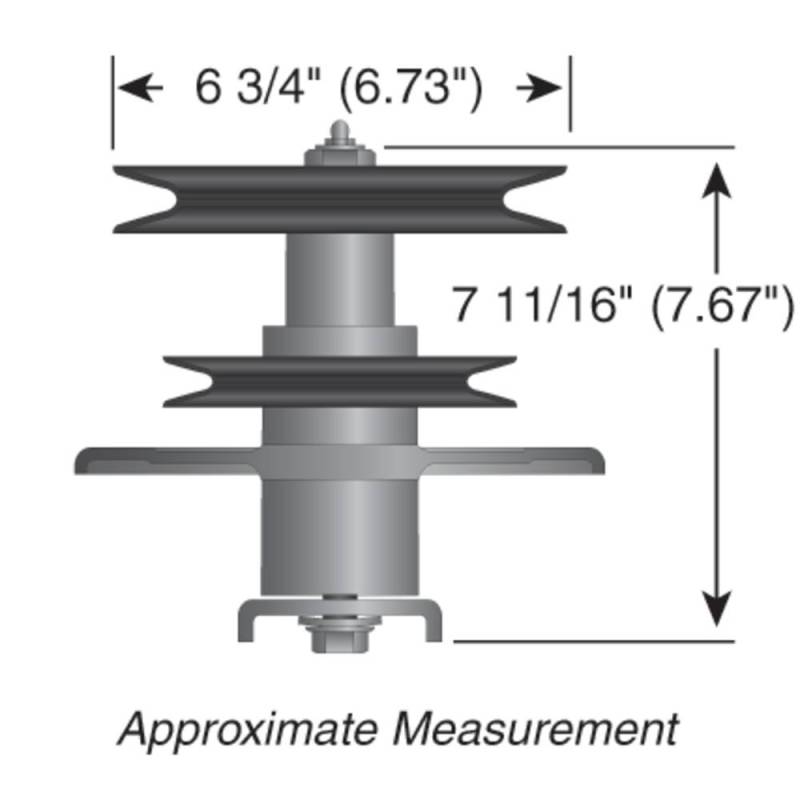

• Height: 8"
• Deck Size: 62"
• Blade Saddle Width: 2-11/16"
• Thread: 1/2"-20
• Top Pulley OD: 6-7/8"
• Lower Pulley OD: 5-1/2"
• Pulley OD: 6-3/4"
• Includes: Grease Fitting
• Condition: New
APPLICATION:
• Toro Z255 Z Master 62" SFS — Model 74203 / 74226
• Toro Z252L Z Master 62" SFS — Model 74212
• Toro Z253 Z Master 62" SFS — Model 74225
• Center/middle deck position only
⚠️ Verify OEM part number from your original unit before ordering to ensure proper fitment.
Center Spindle Assembly - Toro Z Master Z252L Z253 Z255 62 Inch Deck 74203 74212 74225 74226 Zero Turn Mower 105-1688
New center/middle deck spindle assembly for Toro Z252L, Z253 and Z255 Z Master zero-turn mowers with 62" SFS decks. Cast iron housing, 8" height, blade saddle width 2-11/16", thread 1/2"-20. Double pulley — top pulley OD 6-7/8", lower pulley OD 5-1/2". Includes grease fitting. Direct replacement for Toro OEM 105-1688.
