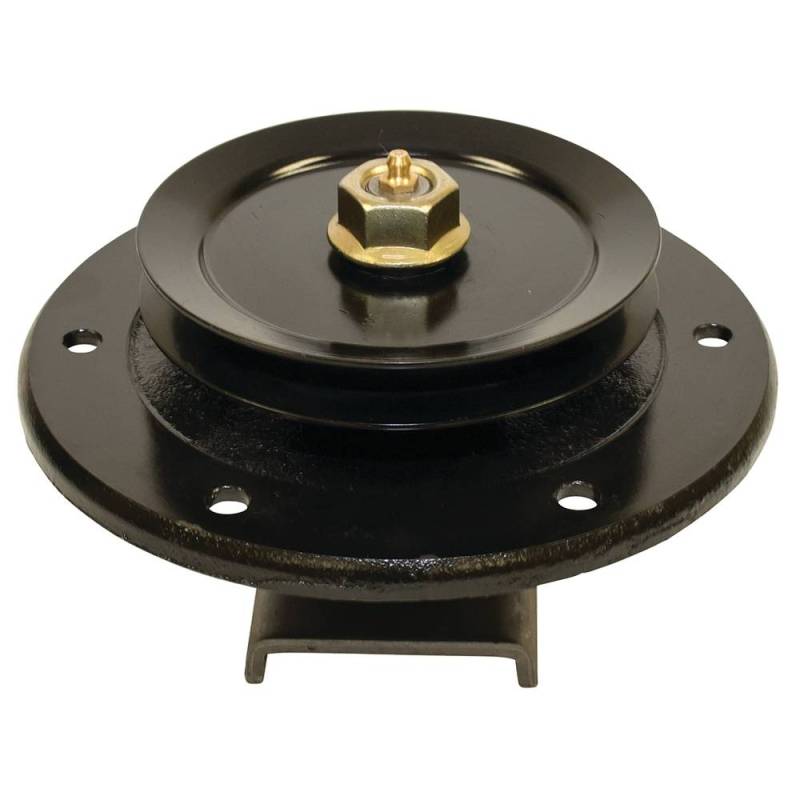

Spindle Assembly Compatible With Toro Z Master Z253 Z256 Z257 Z283l Z286e Z288e 62In Zero-Turn

OEM PART NUMBERS:
• Toro: 99-4640 / 994640

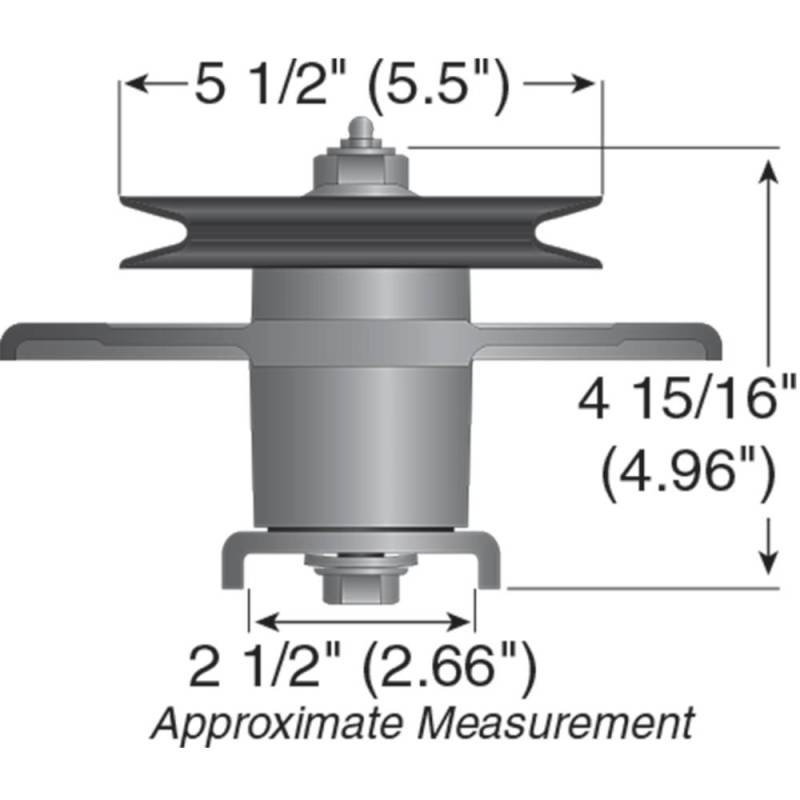

SPECIFICATIONS:
• Type: Outer Spindle Assembly (RH & LH)
• Height: 5" (126mm)
• Pulley OD: 5-1/2"
• Blade Saddle Width: 2-1/2"
• Mounting Hole Distance: 6-3/4" (171.5mm)
• Deck Size: 62"
• Condition: New

APPLICATION:
• Toro Z Master Z252L 62" — 74212 (1999-2000)
• Toro Z Master Z253 62" — 74203, 74225 (2000-2003)
• Toro Z Master Z255 62" — 74203 (2000)
• Toro Z Master Z256 62" — 74218 (2000)
• Toro Z Master Z257 62" — 74231 (2003)
• Toro Z Master Z283L 62" — 74216 (2001)
• Toro Z Master Z286E 62" — 74240
• Toro Z Master Z287L 62" — 74213, 74236 (2001-2003)
• Toro Z Master Z288E 62" — 74258
• Outer RH/LH spindle — torque nut 100-120 ft-lbs; grease before use

Spindle Assembly for Toro Z Master Z252L Z253 Z255 Z256 Z257 Z283L Z286E Z287L Z288E 62" Commercial Zero-Turn
Direct OEM replacement outer spindle assembly. Replaces Toro 99-4640. Specifications: Height 5" (126mm), Pulley OD 5-1/2", Blade Saddle Width 2-1/2", Mounting Hole Distance 6-3/4". Fits right hand (RH) and left hand (LH) outer spindle positions on Toro Z Master 62" commercial zero-turn mowers including Z252L (74212), Z253 (74225), Z255 (74203), Z256 (74218), Z257 (74231), Z283L (74216), Z286E (74240), Z287L (74213, 74236), Z288E (74258). Torque nut to 100-120 ft-lbs; service with grease before use. Verify OEM part number before ordering.
