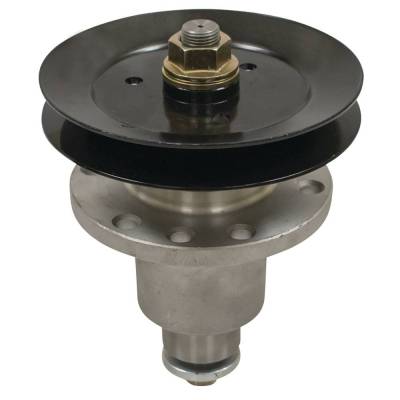

Deck Spindle Assembly Compatible With Exmark Turf Tracer S-Series Tts16ka483 Tts20kae523 Metro Hp 36

(0) Reviews: Write first review
285-947A2
OEM PART NUMBERS:
• Exmark: 103-9081 / 1039081

SPECIFICATIONS:
• Type: Spindle Assembly (Cutter Housing Assembly)

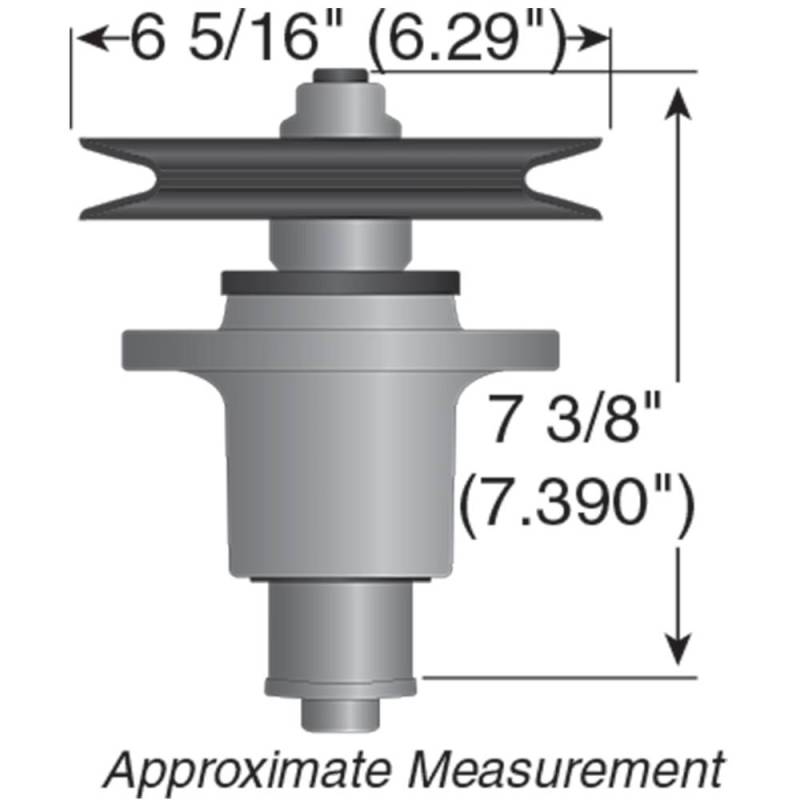

• Height: 7 3/8"
• Pulley Outer Diameter: 6 1/4"
• Blade Bolt: 5/8" x 2-3/4" (Included)
• Splined Bushing: Included
• Pulley: Included
• Condition: New

APPLICATION:
• Exmark Lazer Z CT 48" Deck (S/N 540,000 and Up)
• Exmark Lazer Z HP 48" Deck (S/N 540,000-599,999)
• Exmark Metro HP 36"/48" Deck (S/N 540,000-599,999)
• Exmark Turf Tracer HP 36"/48"/52" Deck (S/N 670,000 and Up)
• Exmark Turf Tracer 36"/48"/52" Deck (S/N 540,000-599,999)
• Exmark Turf Tracer S-Series 36"/48"/52" Deck (S/N 920,000 and Up)
• Fits various applications by part number — verify fitment before ordering

Deck Spindle Assembly - Exmark Turf Tracer S-Series Mower

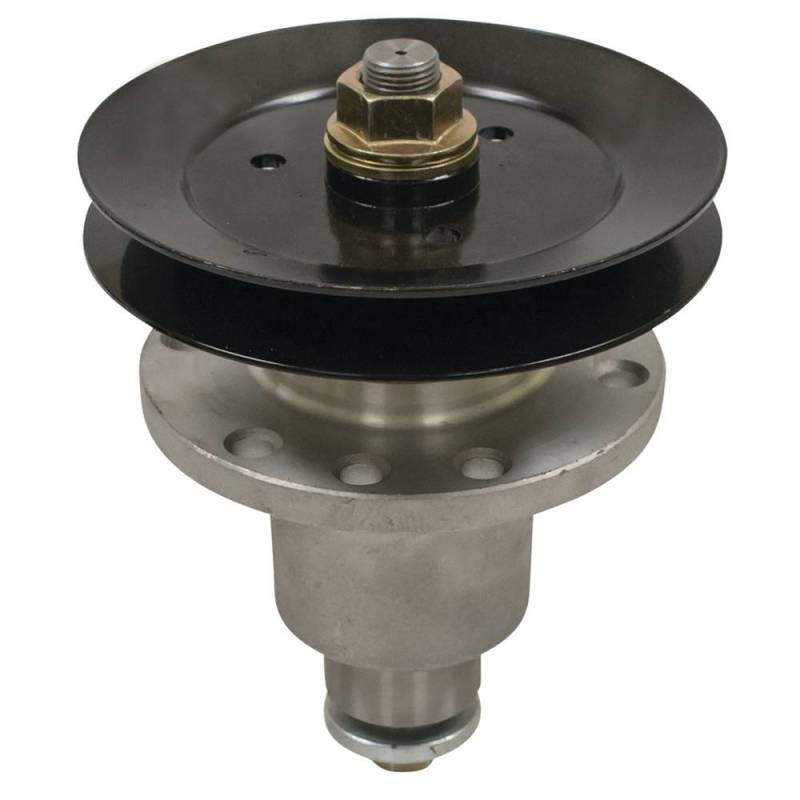

OEM replacement cutter housing spindle assembly for Exmark Turf Tracer S-Series commercial walk-behind mowers. Replaces Exmark 103-9081. Complete assembly with spindle housing, shaft, pulley, splined bushing, and blade bolt. Fits 36, 48, and 52 inch decks. Pulley OD is 6 1/4 inches, overall height 7 3/8 inches. Ready for direct bolt-on installation.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $318.34
Sale: $181.91
Save: 43%
Save: $136.43
Qty:
Free Shipping!

Description

EXMARK LAZER Z CT:
• LCT4818BV 48" Deck (S/N 540,000-599,999)
• LCT18BV483 48" Deck (S/N 600,000-720,000 and Up)

EXMARK LAZER Z HP:
• LHP4819KA 48" Deck (S/N 540,000-599,999)
• LHP4820KC 48" Deck (S/N 540,000-599,999)
• LHP4823KA 48" Deck (S/N 540,000-599,999)

EXMARK METRO HP:
• MHP3615KAC 36" Deck (S/N 540,000-599,999)
• MHP4815KAC 48" Deck (S/N 540,000-599,999)

EXMARK TURF TRACER HP:
• THP15KA363 36" Deck (S/N 670,000-790,000 and Up)
• THP16KA363 36" Deck (S/N 850,000 and Up)
• THP16KA483 48" Deck (S/N 850,000 and Up)
• THP17KA483 48" Deck (S/N 670,000-790,000 and Up)
• THP17KA523 52" Deck (S/N 670,000-790,000 and Up)
• THP18KA523 52" Deck (S/N 850,000 and Up)
• THP19KAE483 48" Deck (S/N 670,000-790,000 and Up)
• THP19KAE523 52" Deck (S/N 670,000-790,000 and Up)
• THP20KAE483 48" Deck (S/N 850,000 and Up)
• THP20KAE523 52" Deck (S/N 850,000 and Up)

EXMARK TURF TRACER:
• TT3615KAC 36" Deck (S/N 540,000-599,999)
• TT4817KAC 48" Deck (S/N 540,000-599,999)
• TT4819KAC/TT4819KAEC 48" Deck (S/N 540,000-599,999)
• TT5219KAC/TT5219KAEC 52" Deck (S/N 510,000-599,999)

EXMARK TURF TRACER S-SERIES:
• TTS16KA363/TTS16KA363CA 36" Deck (S/N 920,000 and Up)
• TTS16KA483/TTS16KA483CA 48" Deck (S/N 920,000 and Up)
• TTS16KA523 52" Deck (S/N 920,000 and Up)
• TTS18KA523 52" Deck (S/N 920,000 and Up)
• TTS20KAE483/TTS20KAE483CA 48" Deck (S/N 920,000 and Up)
• TTS20KAE523 52" Deck (S/N 920,000 and Up)
• TTS20PKAE483 48" Deck (S/N 920,000 and Up)
• TTS20PKAE523 52" Deck (S/N 920,000 and Up)
• TTS481KA363/TTS481KA363CA 36" Deck (S/N 312,000,000 and Up)
• TTS481KA483 48" Deck (S/N 312,000,000 and Up)
• TTS541KA483CA 48" Deck (S/N 312,000,000 and Up)
• TTS541KA523 52" Deck (S/N 312,000,000 and Up)
• TTS600KAE483 48" Deck (S/N 312,000,000 and Up)
• TTS600KAE523 52" Deck (S/N 312,000,000 and Up)
• TTS600PKAE483 48" Deck (S/N 312,000,000 and Up)

NOTE: Verify OEM part number from your original unit before ordering to ensure proper fitment.
