Spindle Assembly Compatible With 1999-2000 Exmark Lazer Z Lz23kc604 Lz26kc604 Lz22lka604 60 Inch

OEM PART NUMBERS:
• Exmark: 634972
• Exmark: 1-634972 / 1634972

SPECIFICATIONS:
• Type: Complete Spindle Assembly with Pulley

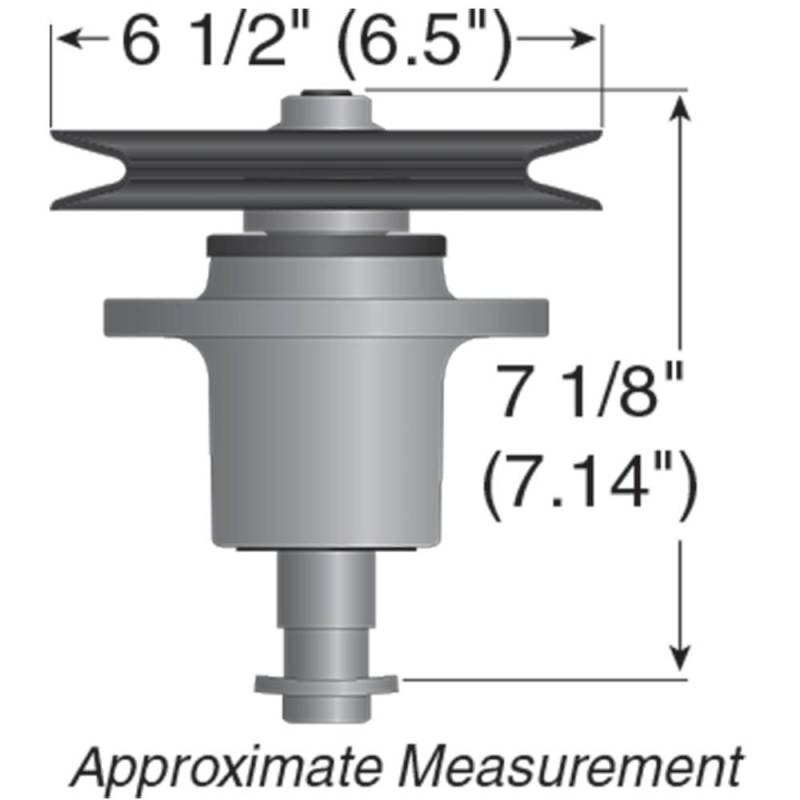

• Overall Height: 7 1/8" (7.125")
• Pulley Outer Diameter: 6 1/2" (6.5")
• Pulley: Included
• Grease Zerk: Included
• Mounting Nut: Included
• Assembly: Complete, Ready for Installation
• Condition: New

APPLICATION:
• Exmark Lazer Z LZ23KC604/LZ26KC604/LZ22LKA604 60" Deck (1999-2000)
• Exmark Lazer Z LZ22KC604/LZ25KC604/LZ27KC604 60" Deck (1999-2000)
• Fits Serial Numbers 150,000 through 259,999

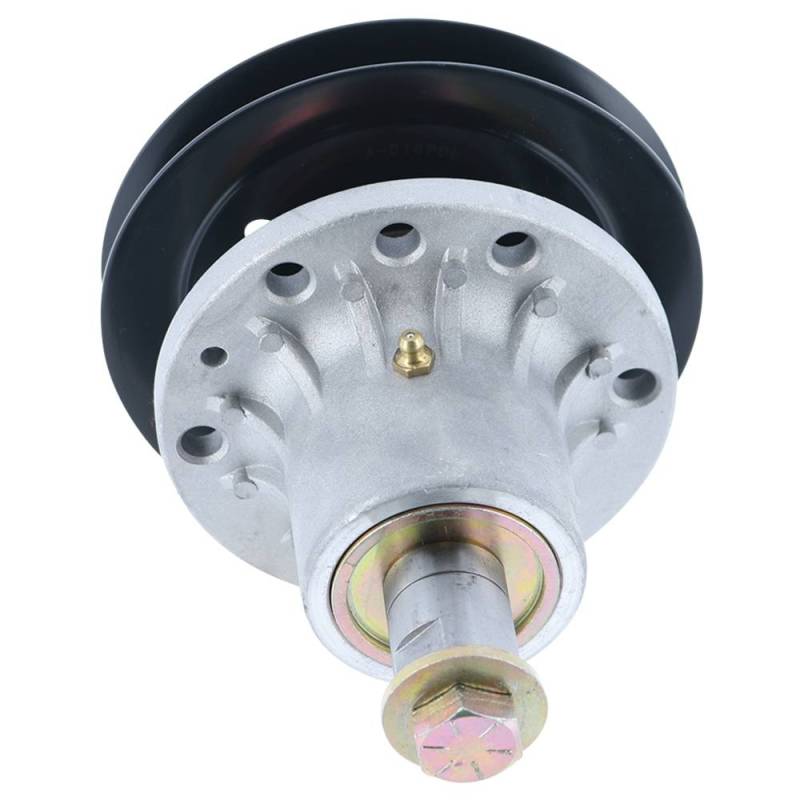

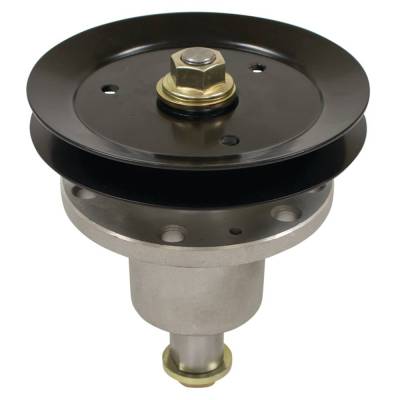

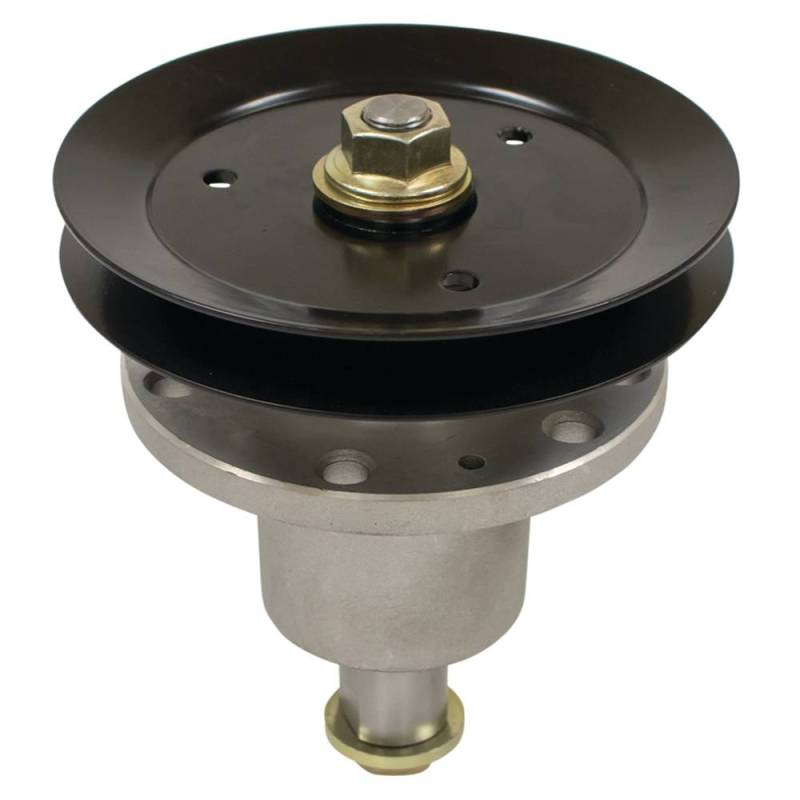

Deck Spindle Assembly - Exmark Lazer Z Zero Turn Mower
Complete spindle assembly with pulley for Exmark Lazer Z zero-turn mowers equipped with 60 inch cutting decks. Direct replacement for Exmark OEM part number 634972 (also referenced as 1-634972). Includes spindle housing, shaft, pulley with 6 1/2 inch outer diameter, grease zerk, and mounting nut. Overall assembly height measures 7 1/8 inches. Compatible with Kohler Command, Kohler EFI, and Kawasaki liquid-cooled engine models across serial numbers 150,000 through 259,999. Fully assembled and ready for direct bolt-on installation.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
