OEM PART NUMBERS:
• Dixie Chopper: 10161L / 10161-L
• Dixie Chopper: 300442
• Dixie Chopper: 302586
SPECIFICATIONS:
• Product Type: Spindle Assembly
• Shaft Type: Long Shaft (Center)

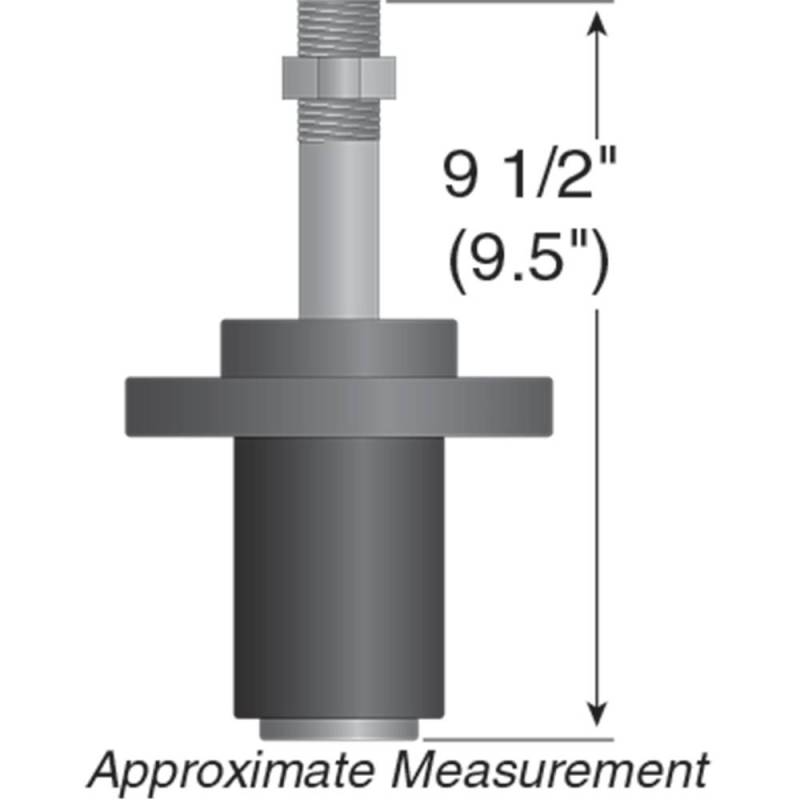

• Overall Height: 9-1/2" (234mm)
• Housing OD: 5-1/2" (140mm)
• Shaft OD: 1"
• Mounting Hole Distance: 4" (102mm)
• Material: Aluminum
• Includes: Grease Fitting
• Deck Size: 50" / 60" / 66" / 72" / 74"
• Condition: New
APPLICATION:
• Classic Series: 2550, 2750, 2750KW, 2760
• High Performance: 3060HP, 3360HP, 3372HP
• LP Series: 3066LP, 3074LP, LP3000-60, LP3000-72, XCLP3066, XCLP3074
• Xcaliber Series: 3356, 3366, 3374, 4074, XCD66, XCD74, XCD3666, XCD3674
• XT Series: XT3000-60/72, XT3200-60/72, XT3300-60/72
• X Series: X2001-50/60, X2303-50, X2503, X2703-60
• SP Series: SP2800-60/72, SP3000-72, SP3200-72
• XW Series: XWD3500-60, XWF2700-60, XWF3000-60, XXG2703-72, XXW4600-72, XXWD3500-72
• Other: 3160KOE, 3160KW, 3572KOE, 3572KW, LX2001-42, RT2760
• Verify OEM part number to confirm long shaft vs short shaft requirement

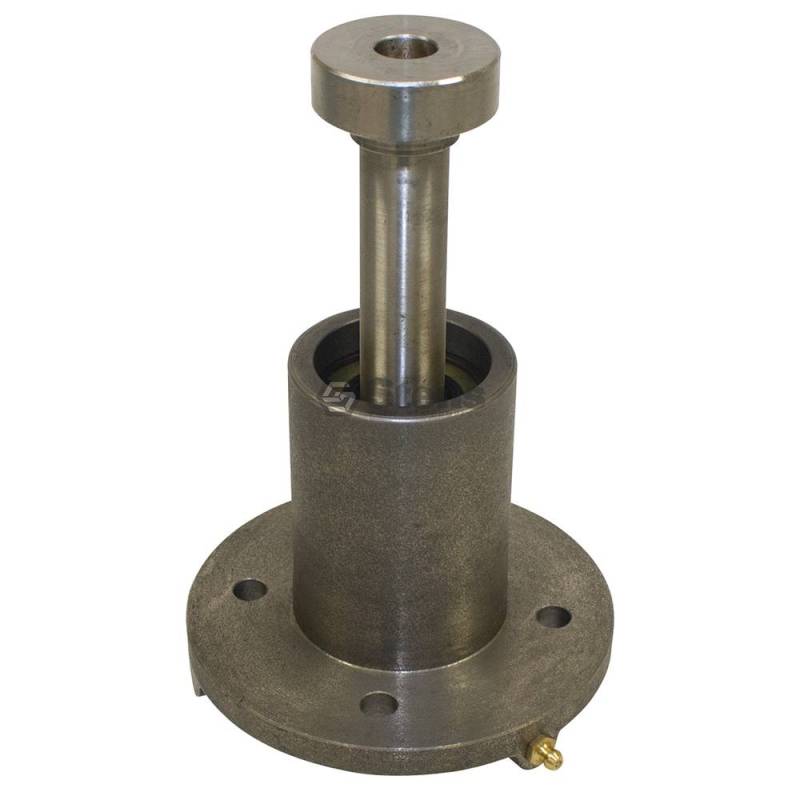

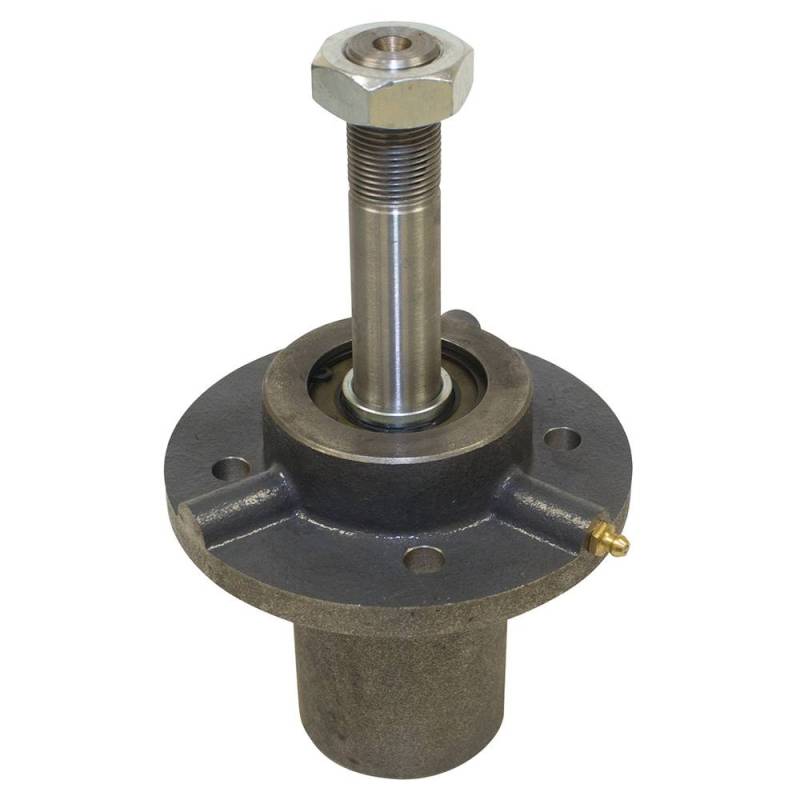

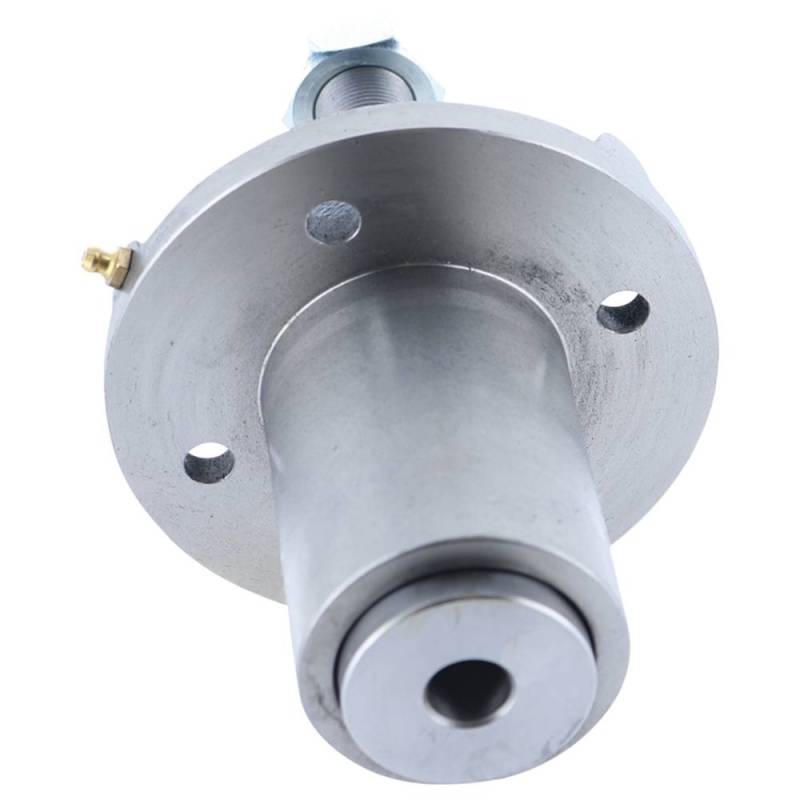

Long Shaft Spindle Assembly for Dixie Chopper Zero Turn Mowers
Direct replacement long shaft (center) spindle assembly for Dixie Chopper commercial and residential zero turn mowers. This complete spindle assembly features a 9-1/2" overall height, 5-1/2" housing outer diameter, and 1" shaft OD with a 4" mounting hole distance. Constructed from durable aluminum with included grease fitting for smooth operation and extended service life. Fits a wide range of Dixie Chopper models with 50" through 74" cutting decks including Classic, Xcaliber, XT, X, SP, LP, and XW series mowers. Replaces Dixie Chopper OEM part numbers 10161L, 300442, and 302586. Note: This is the long shaft center spindle — verify your original spindle part number before ordering as some models also use a short shaft (10161/300441) outer spindle.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
