OEM PART NUMBERS:
• Murray/Briggs & Stratton: 1001200 / 492574MA
SPECIFICATIONS:
• Type: Jackshaft / Spindle / Mandrel Assembly

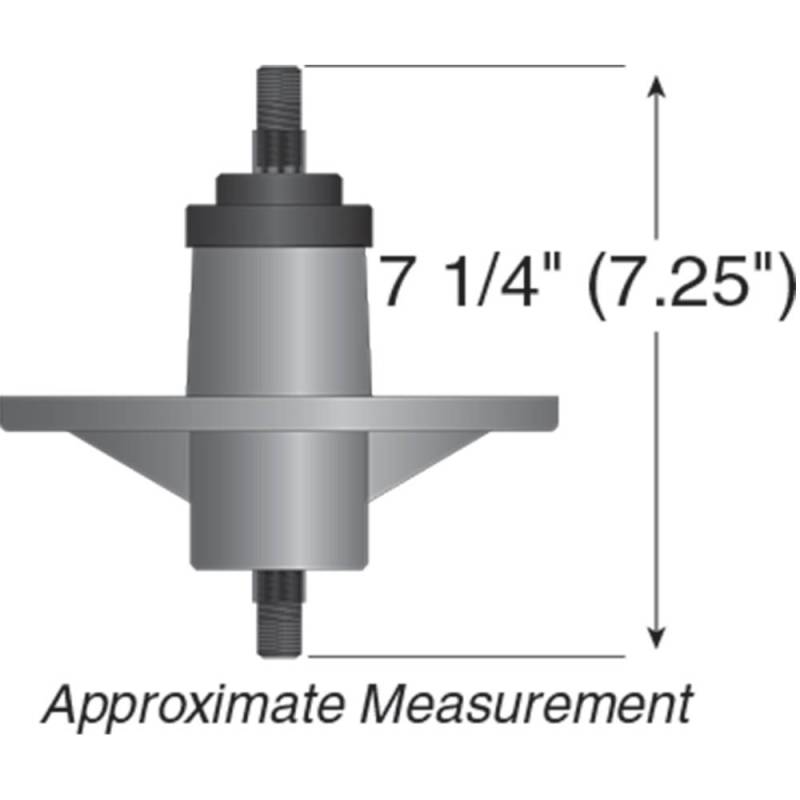

• Height: 7-1/4" Overall
• Shaft Outer Diameter: 5/8"
• Thread: 9/16"-18 UNF at each end of shaft
• Housing: Aluminum
• Deck Sizes: 38", 40", 42", 46"
• Includes: Housing, shaft, bearings, grease fitting, dust cover
• Pulley: Not included — order separately
• Mounting Holes: Not threaded — use self-tapping screws (not included)
• Condition: New
APPLICATION:
• Murray 405011 / 405016 / 405600 / 405606 Series — 40" Deck
• Murray 425000 / 425001 / 425012 / 425600 Series — 42" Deck

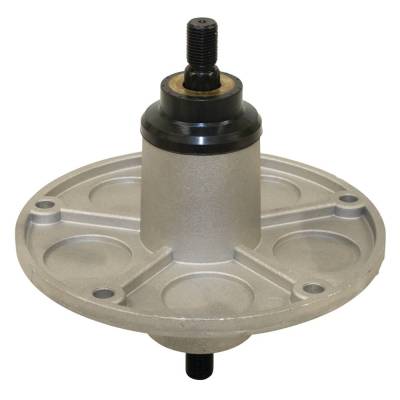

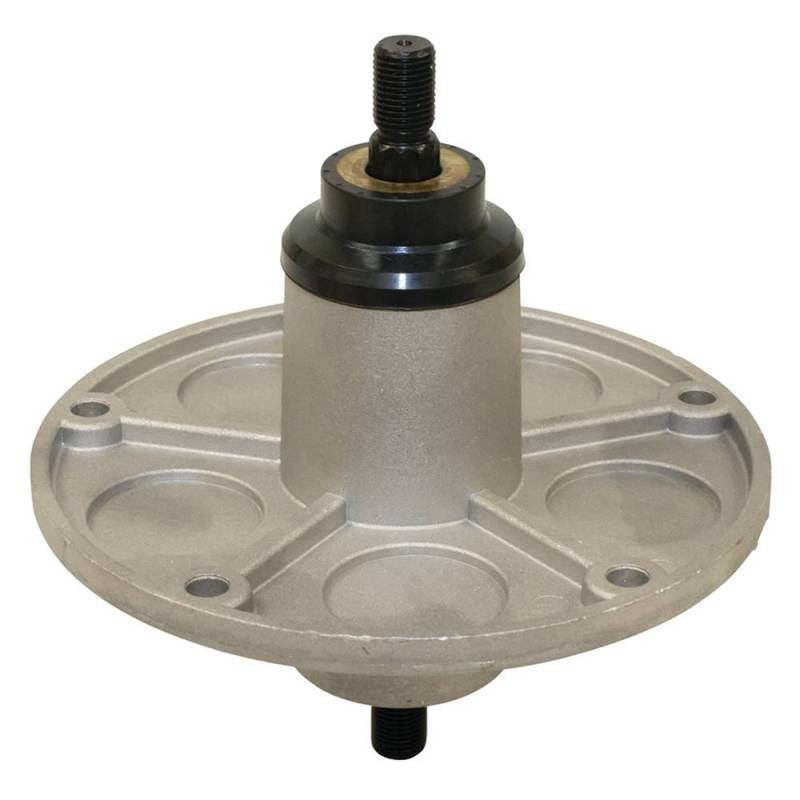

Murray 40 42 Inch Deck Riding Mower Jackshaft Spindle Assembly
Direct OEM replacement jackshaft/spindle/mandrel assembly for Murray 40" and 42" deck riding lawn mowers including 405011-425601 series models. Height 7-1/4", shaft OD 5/8", 9/16"-18 UNF thread at each end. Aluminum housing with grease fitting and dual-sided bearings. Pulley ordered separately. Mounting holes not threaded — use self-tapping screws. Replaces Murray 1001046, 1001200, 1001200MA, and 492574MA.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
