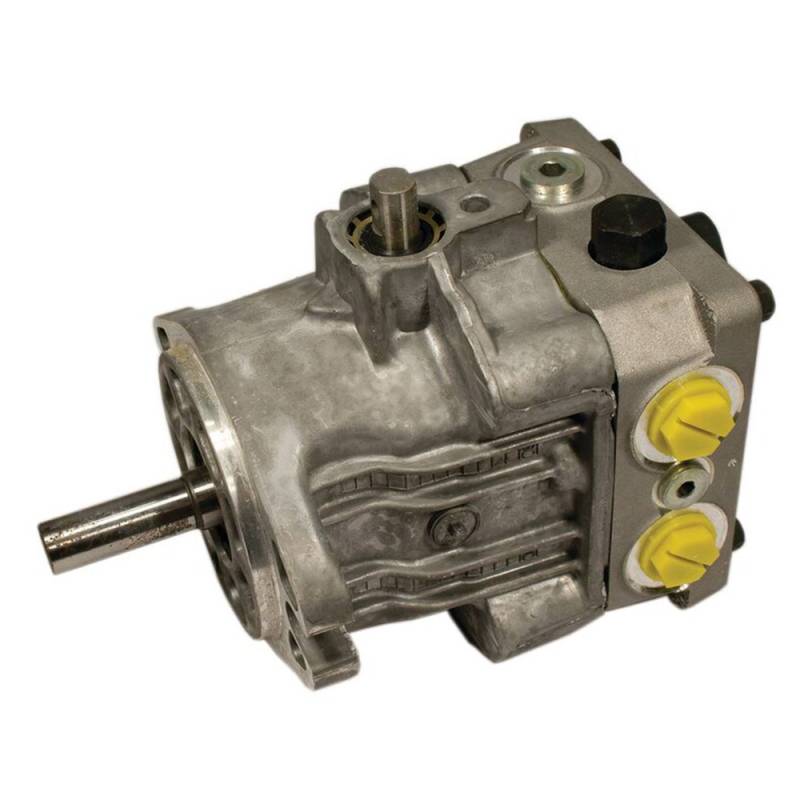

10Cc Hydrostatic Pump Compatible With Scag Tiger Cub Stc48a Stc48v Dixie Chopper Lt2700-60D Smtc

(0) Reviews: Write first review
025-031A3
OEM PART NUMBERS:
• Scag: 482643
• Dixie Chopper: 200029
• Ariens: 02964300 / 2964300
• Hydro-Gear: BDP-10A-316 / BDP10A316
• Hydro-Gear: BDP-10A-390 / BDP10A390
• Hydro-Gear: PG-1KCC-DY1X-XXXX / PG1KCCDY1XXXXX
• Dixon: 17023
• Husqvarna / Dixon: 539127611 / 539 12 76-11
• Snapper: 7011222
• Country Clipper: D-3666

SPECIFICATIONS:
• Type: Hydrostatic Hydraulic Pump (Left Side)
• Series: Hydro-Gear BDP-10A
• Displacement: 10cc
• Application: Commercial Zero-Turn Mowers
• Deck Compatibility: 48", 52", 60", 61"
• Companion Seal Kit: 025-067 (Hydro-Gear 70525)
• Condition: New

SCAG APPLICATIONS:
• Tiger Cub STC 19-27HP Kawasaki / Kohler / Briggs / Honda, 48" / 52" / 61" Decks (2003-2008)
• Wildcat STWC 25-30HP Kawasaki / Kohler, 48" / 52" / 61" Decks (2003-2008)
• SMTC / SMWC Tiger Cat / Wildcat 48" / 52" / 61" Decks (2002-2004)

DIXIE CHOPPER / OTHER APPLICATIONS:
• Dixie Chopper LT2700-60D 27HP 60" (2004-2006)
• Dixon / Husqvarna / Snapper / Country Clipper — Various Models

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $1,824.31
Sale: $1,042.46
Save: 43%
Save: $781.85
Qty:
Free Shipping!

Description

SCAG TIGER CUB (STC) — 48" DECK:
• Scag Tiger Cub STC48A-19KA Kawasaki 19HP V-Twin 48" Deck (2003-2005)
• Scag Tiger Cub STC48A-20CV Kohler Command 20HP V-Twin 48" Deck (2003-2005)
• Scag Tiger Cub STC48A-21KA Kawasaki 21HP V-Twin 48" Deck (2003-2005)
• Scag Tiger Cub STC48V-19KAI Kawasaki 19HP V-Twin 48" Velocity Deck (2005-2008)
• Scag Tiger Cub STC48V-21KA Kawasaki 21HP V-Twin 48" Velocity Deck (2005-2008)
• Scag Tiger Cub STC48V-22FS Kawasaki 22HP 48" Velocity Deck (2005-2008)
• Scag Tiger Cub STC48V-22FS-LE Kawasaki 22HP 48" Velocity Low Exhaust (2005-2008)
• Scag Tiger Cub STC48V-23CV Kohler Command 23HP V-Twin 48" Velocity Deck (2005-2008)
• Scag Tiger Cub STC48V-24BS Briggs & Stratton 24HP V-Twin 48" Velocity Deck (2005-2008)
• Scag Tiger Cub STC48V-25CV Kohler Command 25HP V-Twin 48" Velocity Deck (2005-2008)
• Scag Tiger Cub STC48V-26BS Briggs & Stratton 26HP V-Twin 48" Velocity Deck (2005-2008)
• Scag Tiger Cub STC48V-27BS Briggs & Stratton 27HP V-Twin 48" Velocity Deck (2005-2008)
• Scag Tiger Cub STC48V-651FS Kawasaki 48" Velocity Deck (2005-2008)

SCAG TIGER CUB (STC) — 52" DECK:
• Scag Tiger Cub STC52A-21KA Kawasaki 21HP V-Twin 52" Deck (2003-2005)
• Scag Tiger Cub STC52A-23KA Kawasaki 23HP V-Twin 52" Deck (2003-2005)
• Scag Tiger Cub STC52A-24HN Honda 24HP 52" Deck (2003-2005)
• Scag Tiger Cub STC52V-22FX Kawasaki FX 22HP 52" Velocity Deck (2005-2008)
• Scag Tiger Cub STC52V-23BV Briggs Vanguard 23HP 52" Velocity Deck (2005-2008)
• Scag Tiger Cub STC52V-23KA Kawasaki 23HP V-Twin 52" Velocity Deck (2005-2008)
• Scag Tiger Cub STC52V-24FX Kawasaki FX 24HP 52" Velocity Deck (2005-2008)
• Scag Tiger Cub STC52V-24HN Honda 24HP 52" Velocity Deck (2005-2008)
• Scag Tiger Cub STC52V-25CV Kohler Command 25HP V-Twin 52" Velocity Deck (2005-2008)
• Scag Tiger Cub STC52V-25CV-EFI Kohler Command EFI 25HP V-Twin 52" Velocity Deck (2005-2008)
• Scag Tiger Cub STC52V-25CV-FR Kohler Command 25HP V-Twin 52" Velocity FR (2005-2008)
• Scag Tiger Cub STC52V-27CV Kohler Command 27HP V-Twin 52" Velocity Deck (2005-2008)
• Scag Tiger Cub STC52V-27CV-SS Kohler Command 27HP V-Twin 52" Velocity SS (2005-2008)
• Scag Tiger Cub STC52V-691FX Kawasaki FX 52" Velocity Deck (2005-2008)

SCAG TIGER CUB (STC) — 61" DECK:
• Scag Tiger Cub STC61A-23KA Kawasaki 23HP V-Twin 61" Deck (2003-2005)
• Scag Tiger Cub STC61A-25KA Kawasaki 25HP V-Twin 61" Deck (2003-2005)
• Scag Tiger Cub STC61V-23BV Briggs Vanguard 23HP 61" Velocity Deck (2005-2008)
• Scag Tiger Cub STC61V-23FX Kawasaki FX 23HP 61" Velocity Deck (2005-2008)
• Scag Tiger Cub STC61V-25CV Kohler Command 25HP V-Twin 61" Velocity Deck (2005-2008)
• Scag Tiger Cub STC61V-25CV-FR Kohler Command 25HP V-Twin 61" Velocity FR (2005-2008)
• Scag Tiger Cub STC61V-26CV-EFI Kohler Command EFI 26HP V-Twin 61" Velocity (2005-2008)
• Scag Tiger Cub STC61V-27BS Briggs & Stratton 27HP V-Twin 61" Velocity Deck (2005-2008)
• Scag Tiger Cub STC61V-27CV Kohler Command 27HP V-Twin 61" Velocity Deck (2005-2008)
• Scag Tiger Cub STC61V-730FX Kawasaki FX730 61" Velocity Deck (2005-2008)

SCAG WILDCAT (STWC) — 48" / 52" / 61" DECK:
• Scag Wildcat STWC48V-25CV Kohler Command 25HP V-Twin 48" Velocity Deck (2005-2008)
• Scag Wildcat STWC48V-26KA-LC Kawasaki 26HP Liquid Cooled 48" Velocity Deck (2005-2008)
• Scag Wildcat STWC52A-25KA Kawasaki 25HP V-Twin 52" Deck (2003-2005)
• Scag Wildcat STWC52V-25KA Kawasaki 25HP V-Twin 52" Velocity Deck (2005-2008)
• Scag Wildcat STWC52V-26FX Kawasaki FX 26HP 52" Velocity Deck (2005-2008)
• Scag Wildcat STWC52V-26KA-LC Kawasaki 26HP Liquid Cooled 52" Velocity Deck (2005-2008)
• Scag Wildcat STWC61A-27CV Kohler Command 27HP V-Twin 61" Deck (2003-2005)
• Scag Wildcat STWC61V-26KA-LC Kawasaki 26HP Liquid Cooled 61" Velocity Deck (2005-2008)
• Scag Wildcat STWC61V-27CV Kohler Command 27HP V-Twin 61" Velocity Deck (2005-2008)
• Scag Wildcat STWC61V-30CV Kohler Command 30HP V-Twin 61" Velocity Deck (2005-2008)

SCAG SMTC / SMWC SERIES:
• Scag SMTC-48A 48" Tiger Cat Deck (2002-2004)
• Scag SMTC-48V 48" Tiger Cat Velocity Deck (2002-2004)
• Scag SMTC-52A 52" Tiger Cat Deck (2002-2004)
• Scag SMWC-52A 52" Wildcat Deck (2002-2004)
• Scag SMWC-52V 52" Wildcat Velocity Deck (2002-2004)
• Scag SMWC-61A 61" Wildcat Deck (2002-2004)
• Scag SMWC-61V 61" Wildcat Velocity Deck (2002-2004)

DIXIE CHOPPER:
• Dixie Chopper LT2700-60D 27HP 60" Deck (2004-2006)

ADDITIONAL MAKES (FOUND VIA RESEARCH):
• Dixon 17023 — Various Models
• Husqvarna / Dixon 539127611 (539 12 76-11) — Various Models
• Snapper 7011222 — Various Models
• Country Clipper D-3666 — Various Models

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 9.9 lbs.
  • W12.0000” x H12.0000” x L17.0000”
  • Free Shipping!
