OEM PART NUMBERS:
• OMC: 387277 / 391264 / 393259 / 393988 / 394176 / 395840 / 396313
• OMC: 396316 / 434795 / 435548 / 582048 / 582155 / 983019 / 985237
• Prestolite: 40-476 / 40-478 / 40-496 / EVC4002 / PMP4001
• Prestolite: PMW4001 / PMW4002 / PMW4002A / PMW4002B
• Arco Marine: 6206
• Sierra Marine: 18-6761
• Johnson Electric: 4372840 / 4372840MO25RM / RM43728
SPECIFICATIONS:
• Unit Type: Prestolite
• Voltage: 12V
• Rotation: Reversible
• Wire Count: 3-Wire Connection
• Shaft OD: 8mm (0.315")
• Shaft Type: 2.6mm Drive Tang
• Terminal 1: 6.2mm Blade
• Terminal 2: 6.2mm Blade
• Overall Length: 128.4mm (5.055")
• Field Housing OD: 65.4mm (2.575")
• Weight: 6 lbs
• Mounting: 3-Bolt Flange
• Condition: New
APPLICATION:
• Evinrude 70-235HP Outboard Motors (1980-1981)
• Johnson 70-235HP Outboard Motors (1980-1981)
• V-4 and V-6 Cylinder Outboard Applications

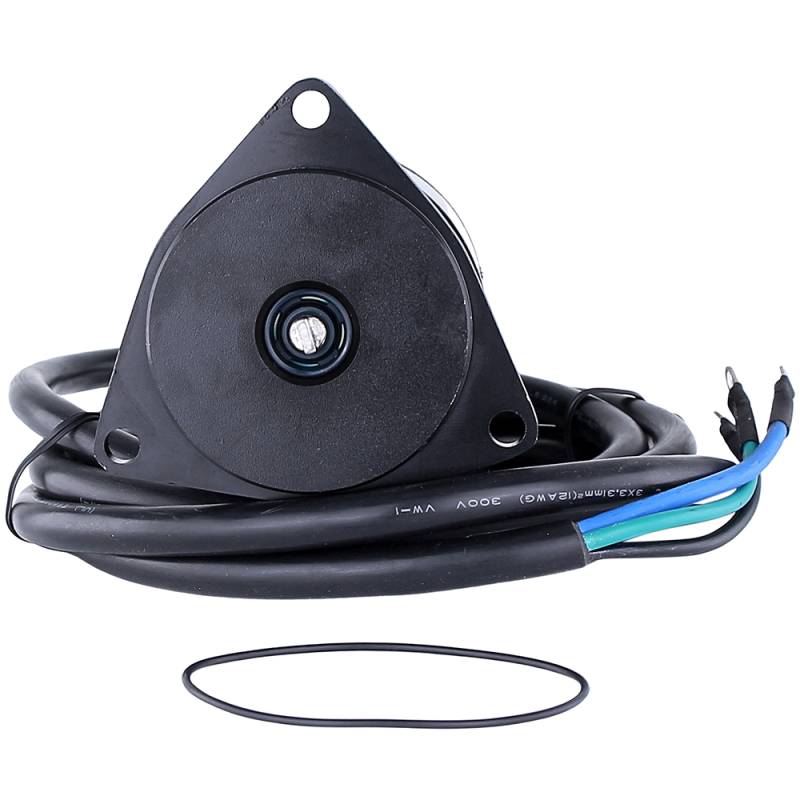

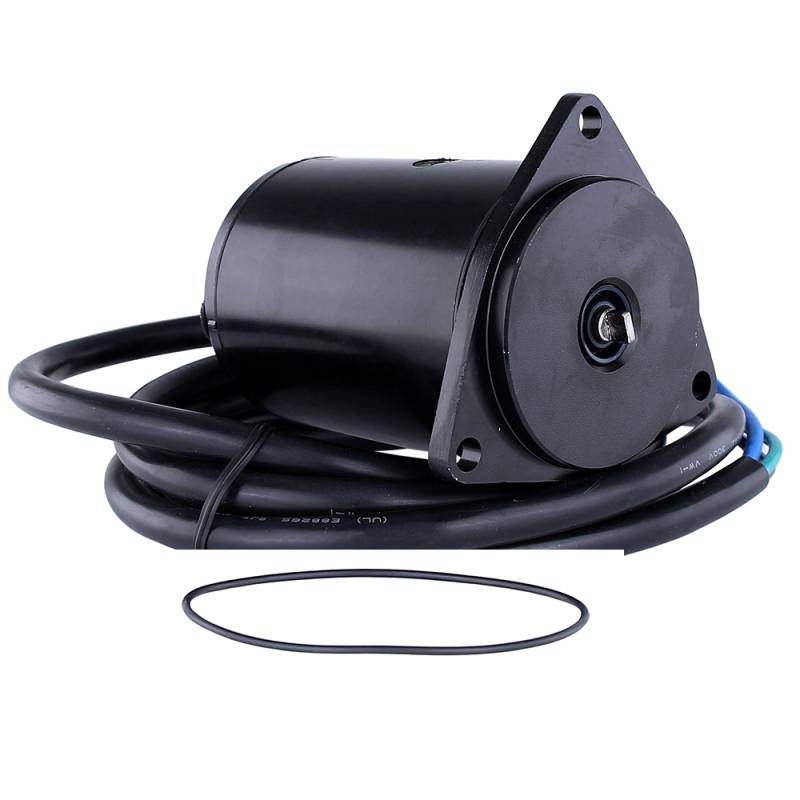

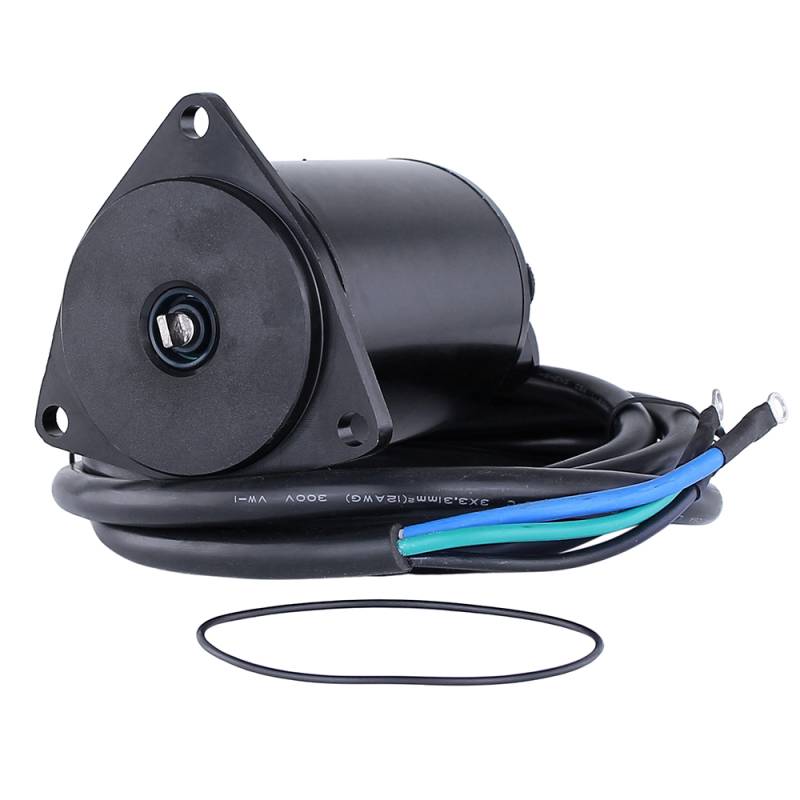

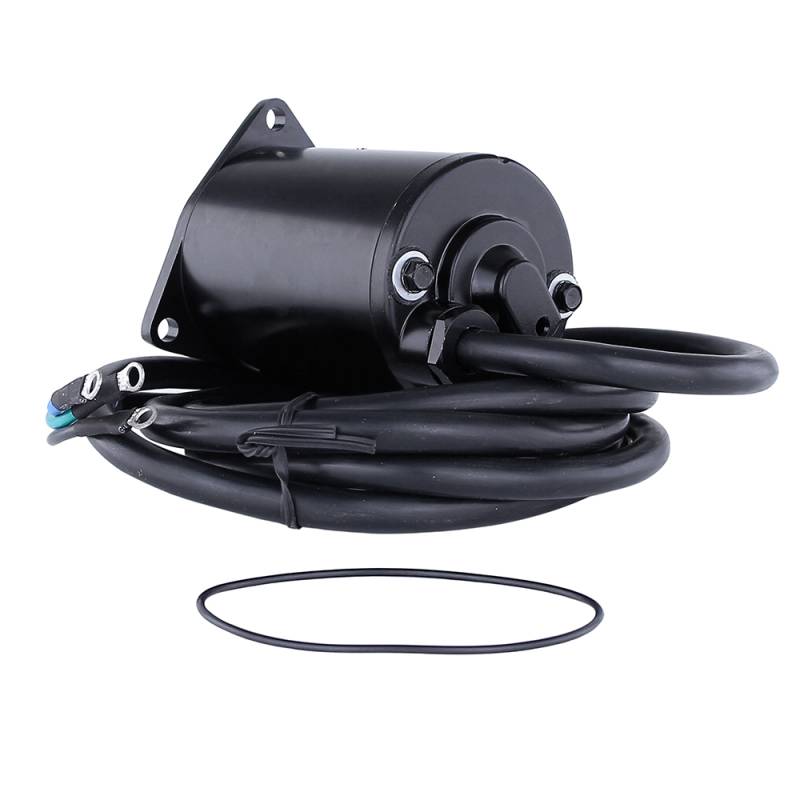

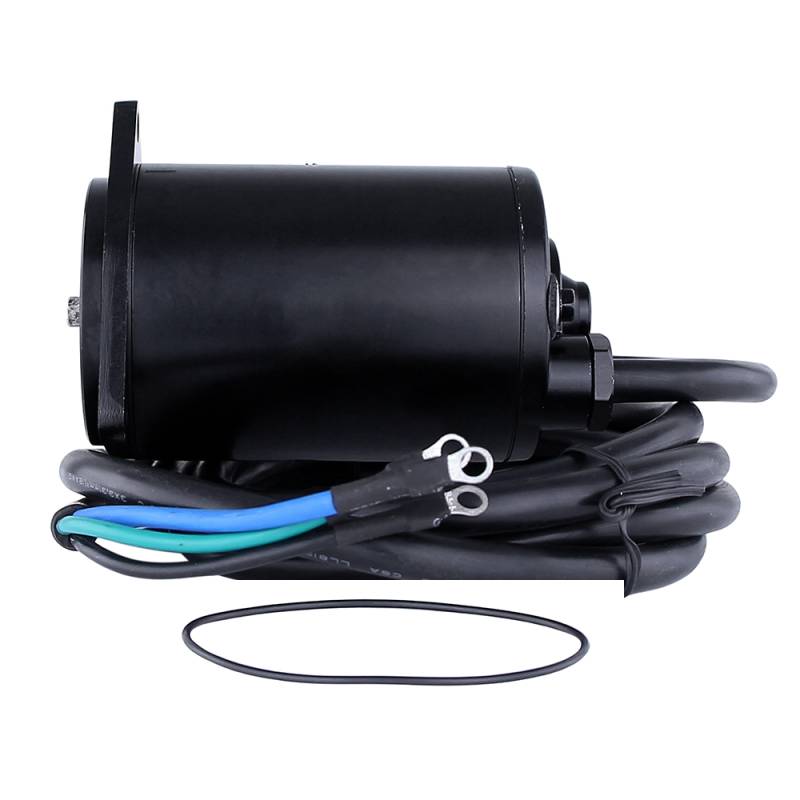

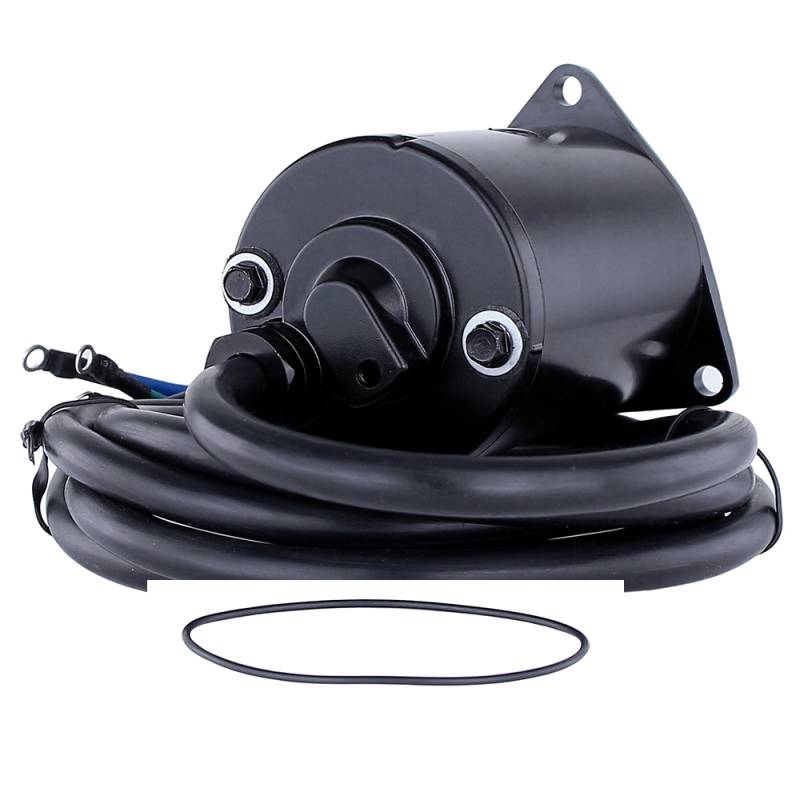

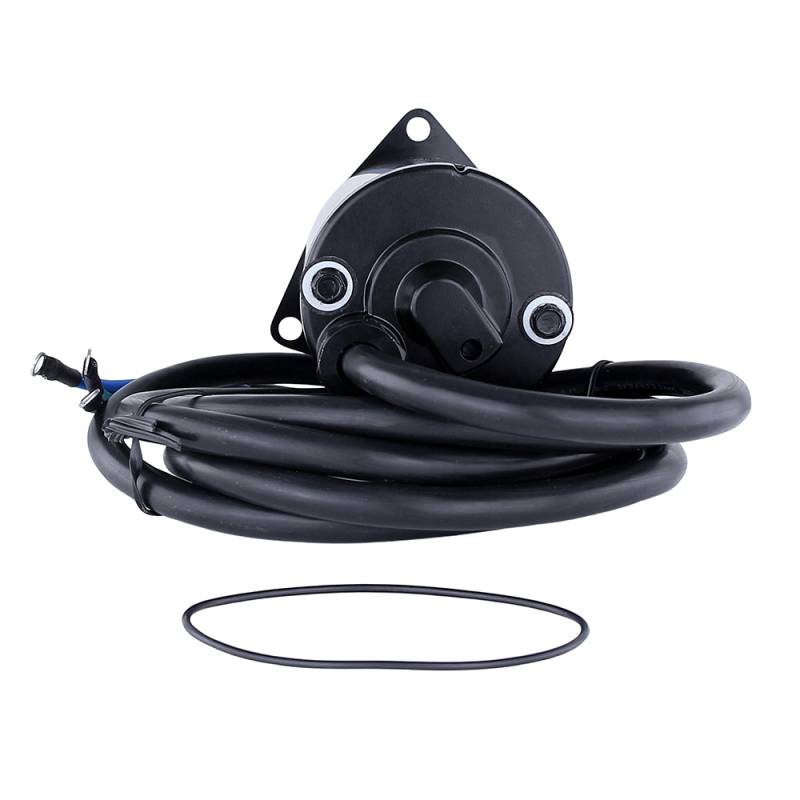

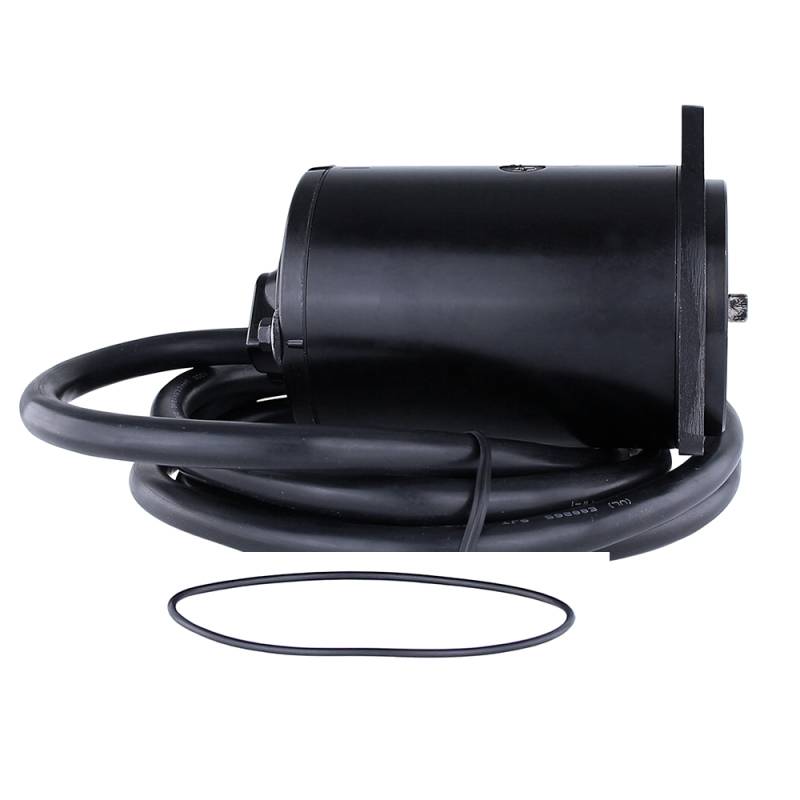

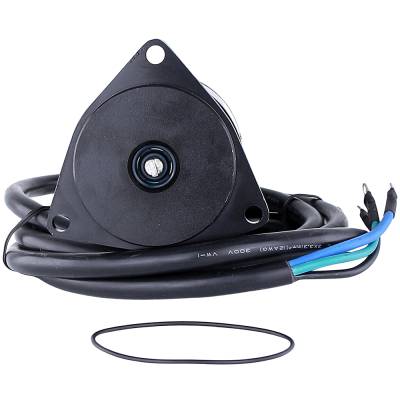

12V Tilt Trim Motor - Evinrude Johnson 70-235HP Outboard 1980-1981
Direct OEM replacement Prestolite-type 12V reversible tilt trim motor for 1980-1981 Evinrude and Johnson outboard motors from 70HP to 235HP. Features 3-wire connection with 3-bolt mounting flange, 8mm shaft with 2.6mm drive tang, and 6.2mm blade terminals. Replaces OMC 387277, 391264, 393259, 393988, 394176, 395840, 434795, 582048, 582155, 983019, 985237, Prestolite EVC4002, PMW4002, 40-476, 40-478, 40-496, Arco Marine 6206, and Sierra 18-6761. Verify OEM part number from your original unit before ordering to ensure proper fitment.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
