12 Volt 275A Brushless Heavy Duty Alternator 40Si 2Nd Gen J180 Hinge Mount Compatible With Daimler

ALTERNATOR 12V 275 Amp CW BRUSHLESS — DELCO REMY 40SI J180 SHORT HINGE:

TWO CHECKS BEFORE YOU BUY:
• Mount: J180 short hinge at 198mm between ear centres
• Output: 275 Amp clockwise
• Case number: 8600279
• Family: Delco Remy 40SI brushless
• Charging wiring rated for 275 amps

HINO J05E 5.0L APPLICATIONS:
• Hino 155 J05E 5.0L 312 CID (2005-2020)
• Hino 185 J05E 5.0L 312 CID (2005-2020)
• Hino 195 J05E 5.0L 312 CID (2005-2020)
• Hino 195h J05E 5.0L 312 CID (2005-2020)

HINO J08E 7.7L APPLICATIONS:
• Hino 198 J08E 7.7L 469 CID (2005-2020)
• Hino 258 J08E 7.7L 469 CID (2005-2020)
• Hino 268 J08E 7.7L 469 CID (2005-2020)
• Hino 338 J08E 7.7L 469 CID (2005-2020)
• Hino 358 J08E 7.7L 469 CID (2005-2020)
• Hino 500 Series J08E 7.7L 469 CID (2005-2020)

MOUNT — READ THIS FIRST:
• J180 SHORT hinge with 198mm between the mounting ear centres
• A J180 LONG hinge bracket measures 216mm between ear centres
• A long hinge bracket needs a long hinge alternator
• The two are not interchangeable and the amperage does not tell them apart
• Measure the bracket with a rule before ordering
• Delco Remy also builds a 240 Amp short hinge 40SI

UPGRADE FITMENT ON OLDER EQUIPMENT:
• Delco Remy launched the 40SI family in January 2011
• Machines built before then take this unit as an output upgrade
• Fire apparatus bus chassis and coach chassis are common upgrade work
• Confirm the bracket is a J180 short hinge
• Confirm the charging cable and fuse suit 275 amps
• An upgrade is a wiring job as much as an alternator job

SPECIFICATIONS:
• 12 Volt / 275 Amp / Clockwise (CW) Rotation
• Model Family: Delco Remy 40SI Brushless
• Regulator: Internal • Remote Sense: Yes
• B Plus Stud: 5/16 • R Terminal: #10 • I Terminal: #10
• Temperature Rating: 125C / 257F
• Polarity: Negative Ground • Weight: 31 lb / 14.1 kg

BRUSHLESS DESIGN:
• The 40SI family is brushless throughout
• No brushes and no slip rings to wear
• Built for high hour duty cycles
• Remote sense allows regulation at the battery

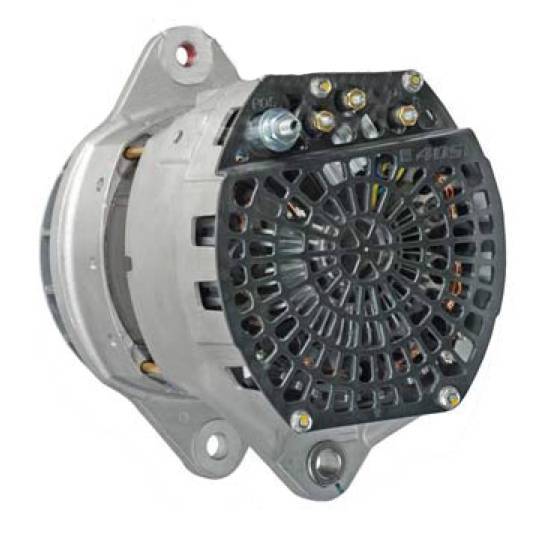

TERMINALS AND WIRING:
• B Plus output stud: 5/16
• R terminal: #10
• I terminal: #10
• Remote sense terminal fitted
• Ground terminal on the rear housing
• Negative ground polarity

HINO MODEL AND ENGINE PAIRING:
• Hino 155 and 185 — J05E 5.0L 312 CID
• Hino 195 and 195h — J05E 5.0L 312 CID
• Hino 198 258 and 268 — J08E 7.7L 469 CID
• Hino 338 358 and 500 Series — J08E 7.7L 469 CID
• Model years 2005 through 2020

HOW TO VERIFY FIT:
• Measure 198mm between the mounting ear centres
• Confirm 275 Amp on the nameplate
• Confirm a 5/16 B Plus output stud
• Confirm the charging cable suits 275 amps

WHAT THIS UNIT IS:
• Output: 12 Volt 275 Amp clockwise brushless
• Mount: J180 short hinge at 198mm
• Terminals: B Plus 5/16 stud with R and I at #10
• Family: Delco Remy 40SI
• Engines: Hino J05E 5.0L and J08E 7.7L
