OEM PART NUMBERS:
• Delco Remy: 8600338 / 8600412 / 8600784 / 8600785 / 8600599
• Leece Neville / Prestolite: 4940PA / 4948PA / 4951PGH / 4958PA / 4959PA / 4977AAH
• Leece Neville A-prefix: A0014940PA / A0014948PA / A0014951PGH / A0014958PA / A0014959PA / A0014977AAH
• Leece Neville BLP Series: BLP2332GH / BLP2334GH / BLP2363H
• International / Navistar: 3721717C91 / 3721717C92 / 3813037C91 / 3863006C91 / 3863006C92
• Volvo: 20861706
SPECIFICATIONS:

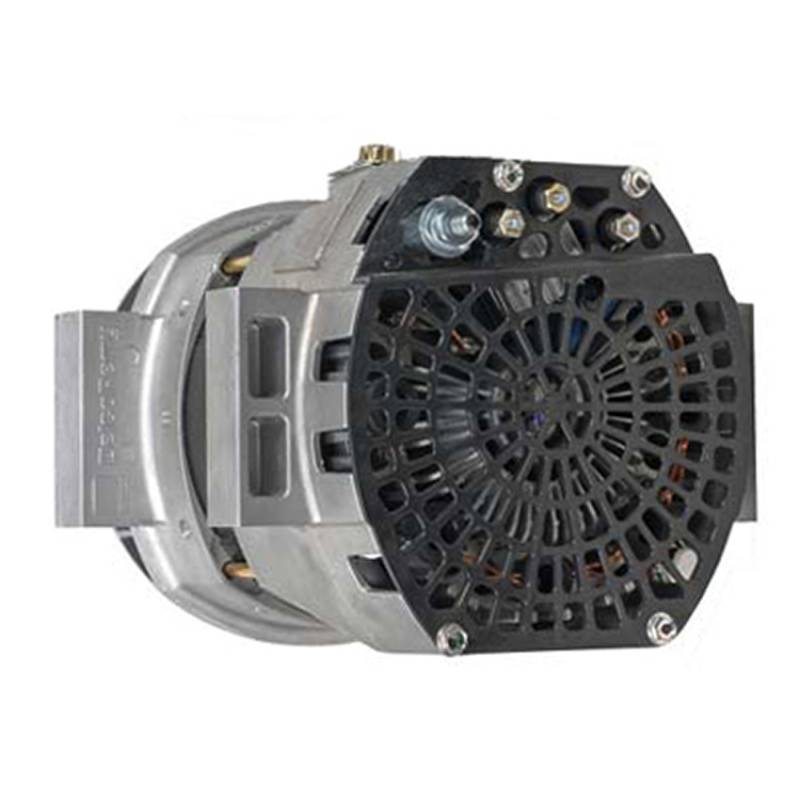

• Type: Alternator — Delco 40SI 2nd Gen, Brushless
• Voltage: 12V
• Amperage: 240A
• Rotation: CW (Clockwise)
• Fan: External (Included)
• Regulator: Internal
• Mount Type: Pad
• B+ Stud Size: 5/16-18
• R Terminal: #10
• I Terminal: #10
• Remote Sense Terminal: Yes
• Polarity: Negative Ground
• DE Mounting Holes: 10.6mm ID Unthreaded
• Rear Mounting Holes: 12.6mm ID Unthreaded
• Temp Rating: Up to 257°F (125°C)
• Weight: 32.22 lbs / 14.65 kg
• Condition: New
APPLICATIONS:
• Mack Anthem / Pinnacle / Granite / TerraPro / CHU / CXU / LR
• Volvo VNL / VNM / VNR / VNX / VHD / VAH / 9700
• Kenworth T800 / T880
• Peterbilt 579 / 567 / 520 / 389 / 367 / 348 / 337 / 330 / 325 / 220
• Blue Bird All American / Vision / Commercial Buses
• International HV507 / HV607 / LT625 / MV607 / TerraStar
• Western Star Heavy Duty Trucks
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
