MOTOROLA PART NUMBERS:
• 10-575 (10575)
• 8SC3017VA
• 8SC3017V
THERMO KING PART NUMBERS:
• 4125D55G01
• 44-6918 (446918)
• 41-3020 (413020)
PRESTOLITE / LEECE-NEVILLE:
• 110-575 (110575)
REPLACES / CROSS-REFERENCE:
• 8SC3018V (predecessor model)
• 8SC3200V / ZLN8SC3200V (latest Prestolite version)
• 8SC3110V
• 90-05-9258

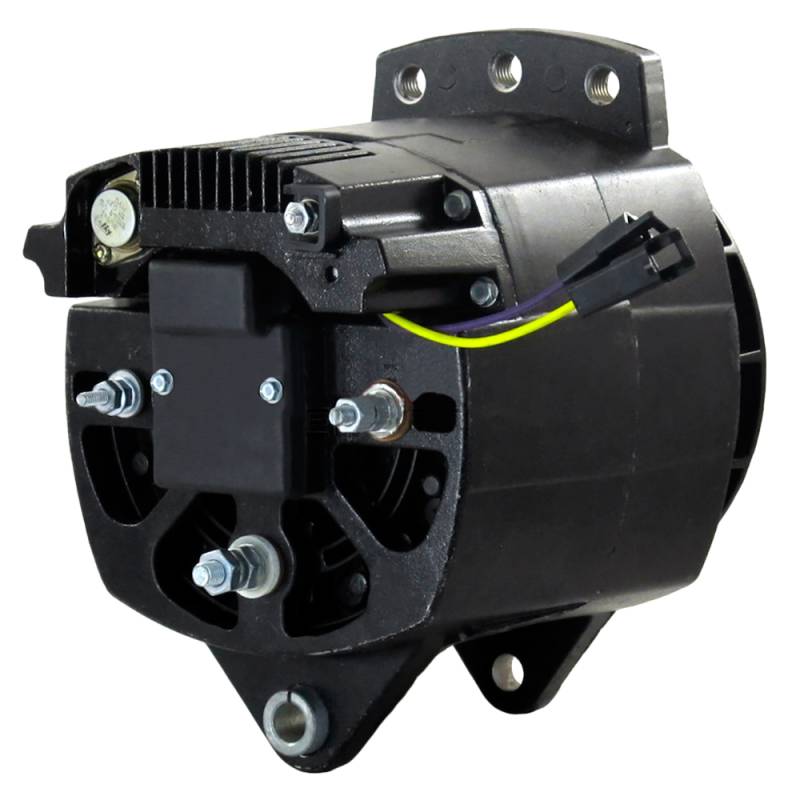

SPECIFICATIONS:
• Voltage: 24V
• Output: 150A
• Rotation: CW (Clockwise)
• Type: Batteryless Alternator
• Excitation: 12V Ignition Excite
• Fan: External
• Regulator: Remote (8RL3013A, Adjustable, Remote Sense)
• Rectifier: Internal
• Mount: J-180 (Hinge 8.5in / 215.9mm)
• Housing: Marine Grade Coating
• Mounting: 3 Holes, 1/2-13 UNC
• Positive Stud: 5/16-24 UNC
• Negative Stud: 1/4-28 UNF
• Shaft: .8740-.8745in
• Polarity: Negative Ground Only
• Weight: 27.7 lbs / 12.59 kg
• Made in Canada
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
