OEM PART NUMBERS:
• Motorola: 10-306 / 10306
• Leece Neville: 8SC3018V (original)
• Leece Neville: 8SC3022V (cross-reference)
• Leece Neville: 8SC3200V (current supersession)
• Prestolite: 110-306 / 110306
• Thermo King: 4125D55G02
• Thermo King: 5D51321G02
• Thermo King: 44-6368 / 446368
• Thermo King: 413627
SPECIFICATIONS:

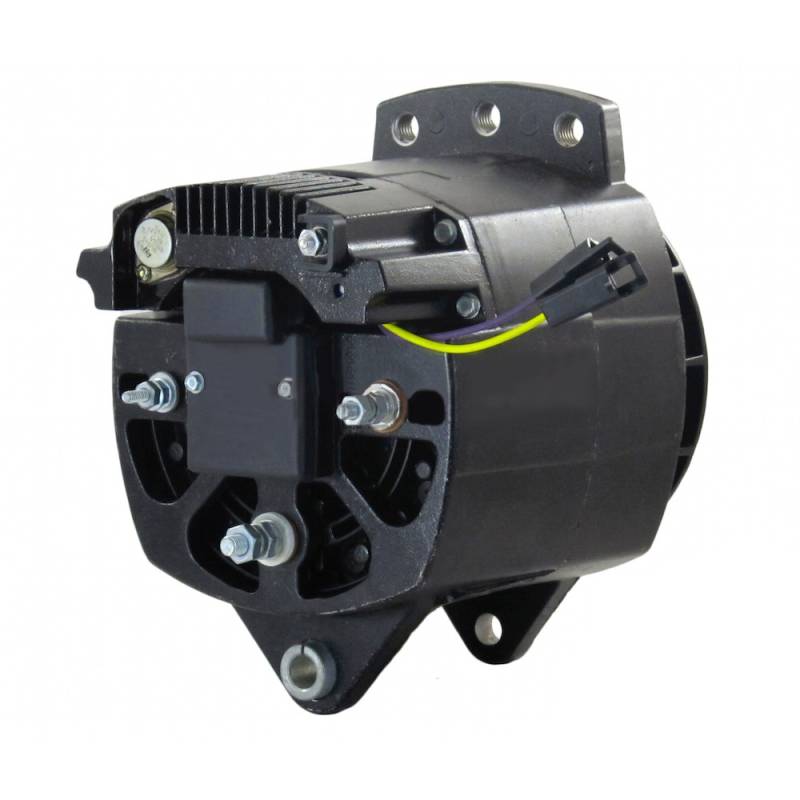

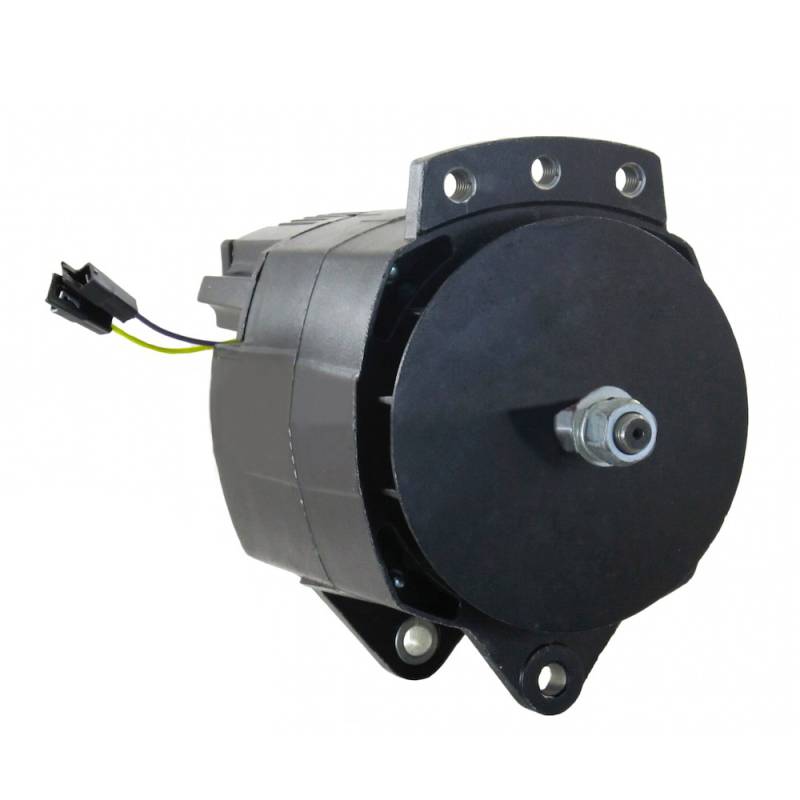

• Type: Leece Neville 8SC Series Batteryless Alternator
• Voltage: 24 Volts
• Amperage: 150 Amps
• Rotation: CW (Clockwise)
• Mount Type: J-180
• J180 Hinge Length: 8.5 in / 215.9mm
• Fan: External
• Regulator: Internal (Remote Adjustable 8RL3013A)
• Excitation: 12V Ignition Excite
• Polarity: Negative Ground Only
• Housing: Marine Coated
• Mounting Bolts: 1/2-13 UNC (3 Holes)
• Positive Stud: 5/16-24 UNC
• Negative Stud: 1/4-28 UNF
• Shaft Diameter: .8740-.8745 in
• Weight: 27.7 lbs / 12.59 kg
• Condition: New
APPLICATIONS:
• Thermo King Ag & Industrial Batteryless Systems
• Thermo King Bus A/C Units with 12V Electrical Systems
• Thermo King Truck APU, Reefer Heat, and A/C Units
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
