OEM PART NUMBERS:
• Cummins: 3957597 / 3283814 / 3283214 / 3675247RX / 3920329 / 3675290NW / 3604662RX / 3958033
• Denso: 428000-1340 / 4280001340 / 428000-0060 / 4280000060
• Denso: 428080-1340 / 4280801340 / 428080-0060 / 4280800060
• Denso: TG428080-1340 / TG4280801340 / TG428080-0060 / TG4280800060
• Denso: 228000-5630 / 2280005630 / 228000-5631 / 2280005631
• Denso: 228000-5610 / 2280005610 / 228000-5611 / 2280005611 / 228000-5612 / 2280005612
• Denso: 228000-7380 / 2280007380 / 228000-7381 / 2280007381 / TG228000-7381 / TG2280007381
• Denso: 128000-9821 / 1280009821
• Case / Case IH: 223900A1 / 223900A2 / 86975216
• Delco: 10465538
SPECIFICATIONS:

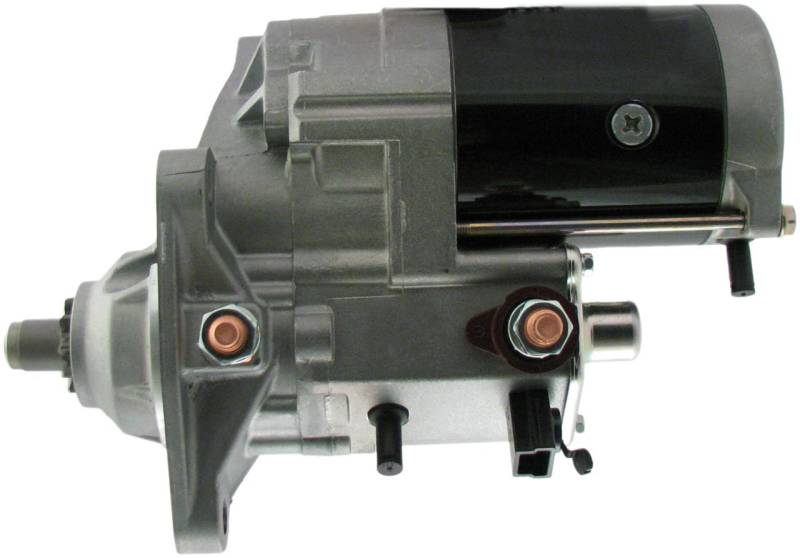

• Type: OSGR Starter Motor (Offset Gear Reduction) — Denso Type
• Voltage: 24V
• Power: 7.5kW / 10.05HP
• Rotation: CW (Clockwise)
• Teeth: 10
• Gear OD: 1.575 in / 40mm
• Mounting Ear Holes: 3x 13.7mm Unthreaded
• Battery & Ground Studs: M12-1.75 Threaded
• Notes: With Wet Clutch Seal
• Weight: Approx. 25 lbs
• Condition: New
APPLICATIONS:
• Cummins 6C / 6CT / 6CTA 8.3L Diesel Engines (1990-2010)
• Case 721C / 821C Wheel Loader w/ Cummins 8.3L (1997-2007)
• Case IH STX280 / STX330 / Steiger 280 / 330 / 335 Tractors
• Case IH 7110 / 7120 / 7130 / 7140 / 7150 Tractors
• Samsung SE240 / SE280 Excavator w/ Cummins 8.3L (1992-1998)
• New Holland CR9040 / CR9060 / TJ280 / TJ330
• Ottawa Yard Tractor w/ Cummins 6C 8.3L (1996-2007)
• Cummins Fire Power CFP83-F10/F20/F30/F40 (2004-2010)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
