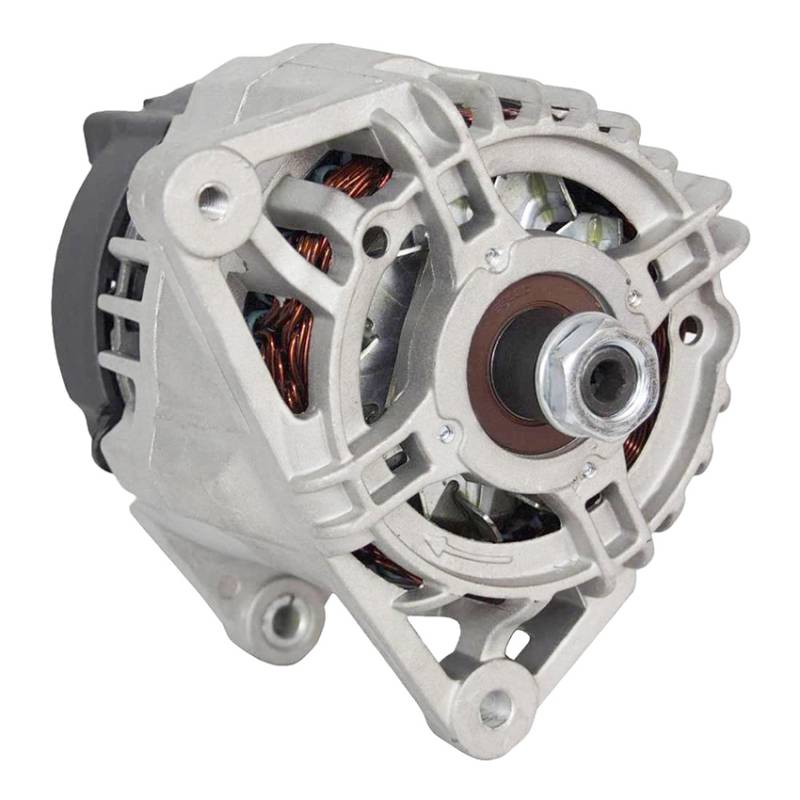

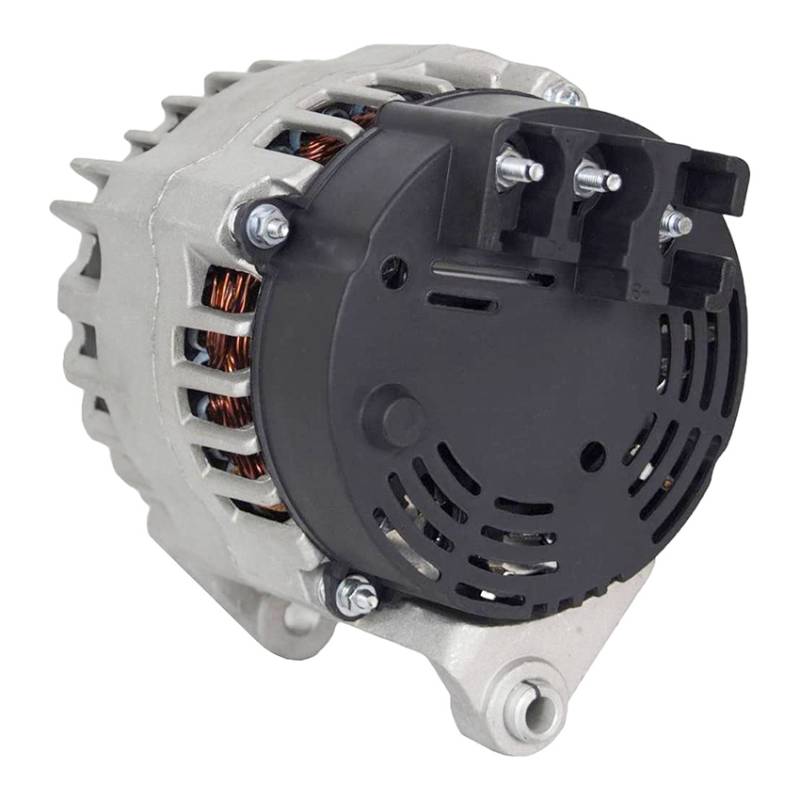

New Alternator Compatible With Perkins Engines 185046522 2871A303 Tpn758 24481 63377462 Man7462

(0) Reviews: Write first review
12738
PERKINS PART NUMBERS:
• 2871A303
• 2871A300
• 2871A301
• 2871A302
• 2871A306
• 2871A307
• 2871A308
• 2871A309
• 2871A168
• 2873A301
• 185046522
• 185046523
• 185046500
• 185046501
• U85046501, U85046501T
• 3671193M91
• TPN758
• TPN771
• T414270
• 3181A085
• A2871156

JCB PART NUMBERS:
• 714/32200, 71432200
• 714/40152, 71440152
• 714/40153, 71440153
• 714/40154, 71440154
• 714/40155, 71440155
• 714/22500, 71422500

MAGNETI MARELLI PART NUMBERS:
• 63377462, 063377462010, MAN7462
• 63377461, 063377461010, MAN7461
• 63377460, 063377460010, MAN7460
• 54022468
• 63321466

LUCAS PART NUMBERS:
• 24481
• 24480
• 24479
• 24344
• LRA03302, LRA3302
• LRB00291
• LRA03282
• Lucas Elektrik LEA1161, LEA1181

DENSO PART NUMBERS:
• 102211-8180, 1022118180
• 102211-8181, 1022118181
• 102211-8170, 1022118170
• 102211-8160, 1022118160
• 102211-8120, 1022118120
• 101210-1011, 1012101011
• DAN653
• DAN654

CATERPILLAR PART NUMBERS:
• 305-3661, 3053661
• 225-3141, 2253141
• 225-3142, 2253142
• 225-3143, 2253143
• 225-3144, 2253144
• 339-7766, 3397766
• 339-7767, 3397767
• 349-1369, 3491369
• 394-3496, 3943496
• 394-3494, 3943494
• 371-5647, 3715647

LETRIKA (ISKRA) PART NUMBERS:
• IA1204, IA 1204
• 11.203.433, 11203433
• AAK5384
• AAK5580

HELLA PART NUMBERS:
• 8EL 012 240-871, 8EL012240871
• 8EL 012 240-861, 8EL012240861

OTHER EQUIPMENT AND UNIT MAKER NUMBERS:
• Land Rover / Rover YLE10118, YLE10099
• Fiat 54022774, 54022775
• Genie 111029GT
• JLG 70001417, 70031392, 7029783
• Bobcat 6911377
• Case / IHC / Navistar MT40285595
• Mahle MG 560, MG560
• Valeo 439882, SG10B085
• Wilson 90-19-2514, 90192514

OTHER REPLACED NUMBERS:
• 29604/3, 296043
• 786635
• 10000-05611, 1000005611
• 10000-59822, 1000059822
• D06M12Y06F4723

SPECIFICATIONS:
• Type: alternator, internal regulator, internal fan (IR/IF)
• Voltage: 12 volt
• Output: 85 amp
• Rotation: clockwise (CW)
• Ground: negative
• Pulley: ships without pulley, 17 mm shaft (reuse the original pulley)
• Mounting: two feet 82.4 mm apart with 8.4 mm unthreaded holes at 6:00, adjusting ear at 2:00 with M8-1.25 thread
• B+ terminal: M6-1.0 stud
• W and D+ terminals: M5-0.8 studs
• Weight: 12.05 lb (5.47 kg)
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $354.18
Sale: $202.39
Save: 43%
Save: $151.79
Qty:
Free Shipping!

Description

JCB BACKHOE LOADERS:
• JCB 214 backhoe loader with the Perkins 1004-4, 1004-40T, 1004-42, 1004-4T, 1104C-44, 1104C-44T, 1990-2010
• JCB 214E backhoe loader with the Perkins 1004-40T, 1004-42, 1104C-44, 1104C-44T, 1990-2010
• JCB 214S backhoe loader with the Perkins 1004-4, 1004-40T, 1004-42, 1004-4T, 1104C-44, 1104C-44T, 1990-2010
• JCB 215 backhoe loader with the Perkins 1004-4, 1004-40T, 1004-42, 1004-4T, 1104C-44, 1104C-44T, 1990-2010
• JCB 215E backhoe loader with the Perkins 1004-40T, 1004-42, 1104C-44, 1104C-44T, 1990-2010
• JCB 215S backhoe loader with the Perkins 1004-40T, 1004-42, 1004-4T, 1104C-44, 1104C-44T, 1990-2010
• JCB 216 backhoe loader with the Perkins 1004-4, 1004-4T, 1990-1999
• JCB 217 backhoe loader with the Perkins 1004-4, 1004-40T, 1004-42, 1004-4T, 1104C-44, 1104C-44T, 1990-2010
• JCB 217E backhoe loader with the Perkins, 1990-2010
• JCB 217S backhoe loader with the Perkins 1004-40T, 1004-42, 1004-4T, 1104C-44, 1104C-44T, 1990-2010
• JCB 3C backhoe loader with the Perkins 1004-4, 1104C-44, 2003-2005
• JCB 3CX backhoe loader with the Perkins 1004-4, 1004-4T, 1104C-44, 1990-2010
• JCB 4C backhoe loader with the Perkins 1004-4, 1104C-44, 1990-2004
• JCB 4CX backhoe loader with the Perkins 1004-4, 1104C-44, 1990-2005

JCB LOADALL TELEHANDLERS:
• JCB 504B Loadall telehandler with the Perkins 1004-4, 1004-4T, 1994-1997
• JCB 505-19 Loadall telehandler with the Perkins 1004-4, 1004-4T, 1989-1998
• JCB 505-22 Loadall telehandler with the Perkins 1004-4, 1004-4T, 1988-1998
• JCB 506-36 Loadall telehandler with the Perkins 1004-4, 1004-4T, 1989-1998
• JCB 506C Loadall telehandler with the Perkins 1104C-44, 1104C-44T, 1997-2005
• JCB 506CHL Loadall telehandler with the Perkins 1104C-44, 1104C-44T, 1997-2005
• JCB 508-40 Loadall telehandler with the Perkins 1004-4, 1004-4T, 1989-1998
• JCB 508C Loadall telehandler with the Perkins 1104C-44, 1104C-44T, 1997-2005
• JCB 510-40 Loadall telehandler with the Perkins 1004-4, 1004-4T, 1989-1998
• JCB 515-40 Loadall telehandler with the Perkins 404C-22, 2002-2006
• JCB 520-40 Loadall telehandler with the Perkins 404C-22, 404D-22, 2003-2019
• JCB 520-50 Loadall telehandler with the Perkins 404D-22, 2012-2014
• JCB 520 Loadall telehandler with the Perkins 1004-4, 1004-40T, 1004-42, 1004-4T, 1104C-44, 1104C-44T, 1996-2003
• JCB 525-58 Loadall telehandler with the Perkins 1004-4, 1004-4T, 1988-1994
• JCB 525-67 Loadall telehandler with the Perkins 1004-4, 1004-4T, 1988-1995
• JCB 525 Loadall telehandler with the Perkins 1004-4, 1004-40T, 1004-42, 1104C-44, 1998-1999
• JCB 525S Loadall telehandler with the Perkins 1004-4, 1004-40T, 1004-42, 1104C-44, 1998-1999
• JCB 526 Loadall telehandler with the Perkins 1004-4, 1004-40T, 1004-42, 1004-4T, 1104C-44, 1104C-44T, 1996-2005
• JCB 526S Loadall telehandler with the JCB 444, Perkins 1004-4, 1004-40T, 1004-42, 1004-4T, 1104C-44, 1104C-44T, 1996-2008
• JCB 527-58 Loadall telehandler with the Perkins 1004-4, 1004-4T, 1994-1997
• JCB 527-67 Loadall telehandler with the Perkins 1004-4, 1004-4T, 1989-1997
• JCB 528-70 Loadall telehandler with the Perkins 1104C-44, 1104C-44T, 1999-2005
• JCB 528 Loadall telehandler with the Perkins 1104C-44, 1104C-44T, 1999-2005
• JCB 528S Loadall telehandler with the Perkins 1004-40T, 1004-42, 1104C-44, 1104C-44T, 1997-2005
• JCB 530-110 Loadall telehandler with the Perkins 1004-4, 1004-4T, 1989-1998
• JCB 530-120 Loadall telehandler with the Perkins 1004-4, 1004-4T, 1989-1996
• JCB 530-120S Loadall telehandler with the Perkins 1004-4, 1004-4T, 1989-1996
• JCB 530-95 Loadall telehandler with the Perkins 1004-4, 1004-4T, 1990-1996
• JCB 530 Loadall telehandler with the Perkins 1004-4, 1004-40T, 1004-42, 1004-4T, 1004C-44, 1004C-44T, 1104C-44, 1104C-44T, 1104C-44TA, 1104T, 3711HO, 1989-2007
• JCB 530S Loadall telehandler with the Perkins 1004-4, 1004-40T, 1004-42, 1004-4T, 1104C-44TA, 1997-2006
• JCB 532 Loadall telehandler with the Perkins 1004-4, 1004-40T, 1004-42, 1004-4T, 1104C-44, 1104C-44T, 1996-2005
• JCB 532H Loadall telehandler with the Perkins 1004-40T, 1004-42, 1999-2004
• JCB 533-105 Loadall telehandler with the Perkins 1004-40T, 1004-42, 1104C-44, 1104C-44T, 1104C-44TA, 2003-2005
• JCB 535-125 Loadall telehandler with the Perkins 1104C-44, 1104C-44T, 1104C-44TA, 2004-2008
• JCB 535-125H Loadall telehandler with the Perkins 1104C-44T, 2004-2008
• JCB 535-140 Loadall telehandler with the Perkins 1104C-44, 1104C-44T, 1104C-44TA, 2004-2008
• JCB 535-140H Loadall telehandler with the Perkins 1104C-44, 1104C-44T, 2004-2008
• JCB 535-60 Loadall telehandler with the Perkins 1104C-44, 1104C-44T, 1104C-44TA, 2004-2005
• JCB 535-95 Loadall telehandler with the Perkins 1004-40T, 1004-42, 1104C-44, 1104C-44T, 1104C-44TA, 2003-2008
• JCB 535 Loadall telehandler with the Perkins 1104C-44, 1104C-44T, 1104C-44TA, 2003-2008
• JCB 537 Loadall telehandler with the Perkins 1004-4, 1004-40T, 1004-42, 1004-4T, 1104C-44, 1104C-44T, 1996-2004
• JCB 537H Loadall telehandler with the Perkins 1004-40T, 1004-42, 1104C-44T, 1998-2004
• JCB 540-120 Loadall telehandler with the Perkins 1004-4, 1004-4T, 1989-1996
• JCB 540-140 Loadall telehandler with the Perkins 1104C-44, 1104C-44T, 1104C-44TA, 2004-2008
• JCB 540-140H Loadall telehandler with the Perkins 1104C-44TA, 2004-2008
• JCB 540-170 Loadall telehandler with the Perkins 1004-40T, 1104C-44T, 1104C-44TA, 2003-2008
• JCB 540 Loadall telehandler with the Perkins 1004-4, 1004-40T, 1004-42, 1004-4T, 1004C-44, 1004C-44T, 1104C-44, 1104C-44T, 1104C-44TA, 1104T, 1988-2007
• JCB 540S Loadall telehandler with the Perkins 1004-4, 1004-40T, 1004-42, 1004-4T, 1997-2003
• JCB 550-170 Loadall telehandler with the Perkins 1104C-44T, 1104C-44TA, 2004-2008
• JCB 550 Loadall telehandler with the Perkins 1004-4, 1004-40T, 1004-42, 1004-4T, 1997-2005

JCB SKID STEER LOADERS:
• JCB 150 skid steer loader with the Perkins 404D-22, 2012-2016
• JCB 155 skid steer loader with the Perkins 404D-22, 2011-2015
• JCB 160 skid steer loader with the Perkins 404D-22, 2007-2012
• JCB 175 skid steer loader with the Perkins 404D-22, 2012-2015
• JCB 180 skid steer loader with the Perkins 404D-22, 2006-2012
• JCB 190 skid steer loader with the Perkins 404D-22, 2012-2015
• JCB 205 skid steer loader with the Perkins 404D-22, 2012-2016

JCB TELETRUK FORKLIFTS:
• JCB TLT20D Teletruk forklift with the Perkins 404C-22, 1998-2000
• JCB TLT25D Teletruk forklift with the Perkins 404C-22, 404D-22T, 1997-2012
• JCB TLT30D Teletruk forklift with the Perkins 404C-22, 404C-22T, 404D-22T, 2001-2012
• JCB TLT35D Teletruk forklift with the Perkins 404C-22T, 2004-2008

JCB ROUGH TERRAIN FORKLIFTS:
• JCB 926 rough terrain forklift with the Perkins 1004-4, 1004-42, 1104C-44, 1995-2008
• JCB 930 rough terrain forklift with the Perkins 1004-4, 1004-42, 1104C-44, 1995-2008
• JCB 940 rough terrain forklift with the Perkins 1004-4, 1004-42, 1104C-44, 1995-2008

JCB WHEEL LOADERS:
• JCB 406 wheel loader with the Kohler KDI2504, 2014-2020
• JCB 411 wheel loader with the Perkins 1004-4, 1997-2000
• JCB 412 wheel loader with the Perkins 1004-4T, 1997-2001
• JCB 414 wheel loader with the Perkins 1006.6, 1995-1997
• JCB 416 wheel loader with the Perkins 1004-4, 1997-2000
• JCB TM270 wheel loader with the Perkins 1004-4T, 1997-1999

JCB FASTRAC TRACTORS:
• JCB Fastrac 1115 tractor with the Perkins 1006.6, 1995-1996
• JCB Fastrac 1115S tractor with the Perkins 1006.6T, 1996-1998
• JCB Fastrac 1125 tractor with the Perkins 1006.60T, 1997-1998
• JCB Fastrac 1135 tractor with the Perkins 1006.6, 1995-1998
• JCB Fastrac 125 tractor with the Perkins 1000, 1993-1995
• JCB Fastrac 135 tractor with the Perkins 1006.6, 1993-1997
• JCB Fastrac 145 tractor with the Perkins 1006.6, 1993-1998
• JCB Fastrac 155 tractor with the Perkins 1006.6, 1993-1998
• JCB Fastrac 185 tractor with the Cummins 6BTA, 1994-1998

JCB COMPACT EXCAVATORS:
• JCB 48Z-1 compact excavator with the Perkins 404D-22, 2016-2020
• JCB 51R-1 compact excavator with the Perkins 404D-22, 2016-2020
• JCB 55Z-1 compact excavator with the Perkins 404D-22, 2016-2020
• JCB 57C-1 compact excavator with the Perkins 404D-22, 2016-2020
• JCB 65R-1 compact excavator with the Perkins 404D-22, 2014-2020
• JCB 8045 ZTS compact excavator with the Perkins 404D-22, 2006-2017
• JCB 8050 RTS compact excavator with the Perkins 404D-22, 2010-2017
• JCB 8050 ZTS compact excavator with the Perkins 404D-22, 2010-2017
• JCB 8055 RTS compact excavator with the Perkins 404D-22, 2011-2016
• JCB 8055 ZTS compact excavator with the Perkins 404D-22, 2012-2016

JCB, ALSO LISTED:
• JCB 411B, 411B LE wheel loaders
• JCB 4CX444, 4CX444 Super, 4CN444 Super, 4CXSM444, 4CN-4WS PC backhoe loaders
• JCB 528 AG, 530B, 540 FS Plus Loadall telehandlers; JCB 580 series with Perkins Tier II engine
• JCB 135, 155, 185 skid steer loaders; JCB Robot series with the Perkins 1100 series
• JCB 145 excavator; JCB 1135 tractor

PERKINS AND OTHER ENGINES:
• Perkins 1004-4, 1004-4T, 1004-40T, 1004-42, 1004C-44, 1004C-44T diesel engines
• Perkins 1104C-44, 1104C-44T, 1104C-44TA, 1104T, 1104D-44T, 1104D-44TA diesel engines
• Perkins 404C-22, 404C-22T, 404D-22, 404D-22T, 1103C-33 diesel engines
• Perkins 1006.6, 1006.6T, 1006.60T, 1000, 1006C-E66TAG2, 3711HO diesel engines; Perkins 1100 series 4 cylinder
• Kohler KDI2504 (JCB 406); Cummins 6BTA (JCB Fastrac 185); JCB 444 (JCB 526S)

SPECIFICATIONS:
• Type: alternator, internal regulator, internal fan (IR/IF)
• Voltage: 12 volt
• Output: 85 amp
• Rotation: clockwise (CW)
• Ground: negative
• Pulley: ships without pulley, 17 mm shaft (reuse the original pulley)
• Mounting: two feet 82.4 mm apart with 8.4 mm unthreaded holes at 6:00, adjusting ear at 2:00 with M8-1.25 thread
• B+ terminal: M6-1.0 stud
• W and D+ terminals: M5-0.8 studs
• Weight: 12.05 lb (5.47 kg)
• Condition: New aftermarket
