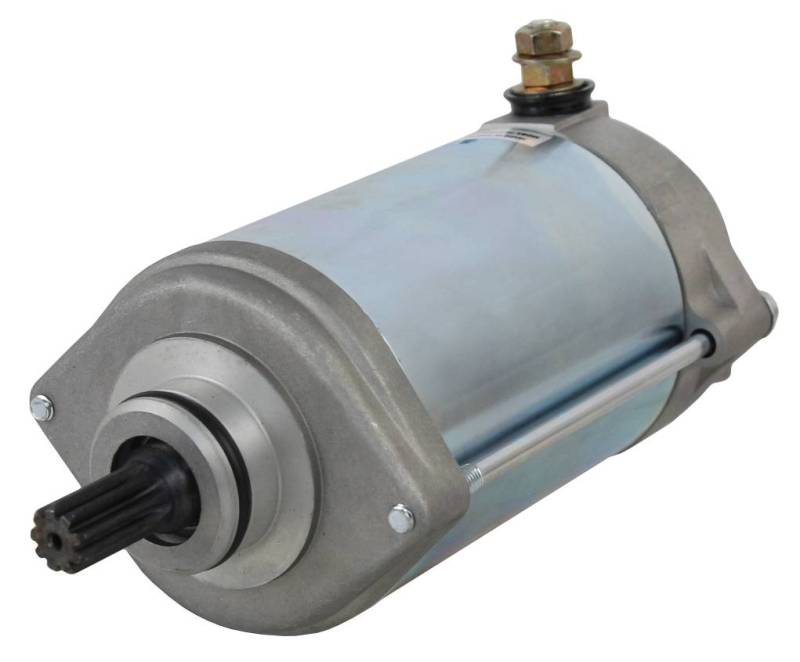

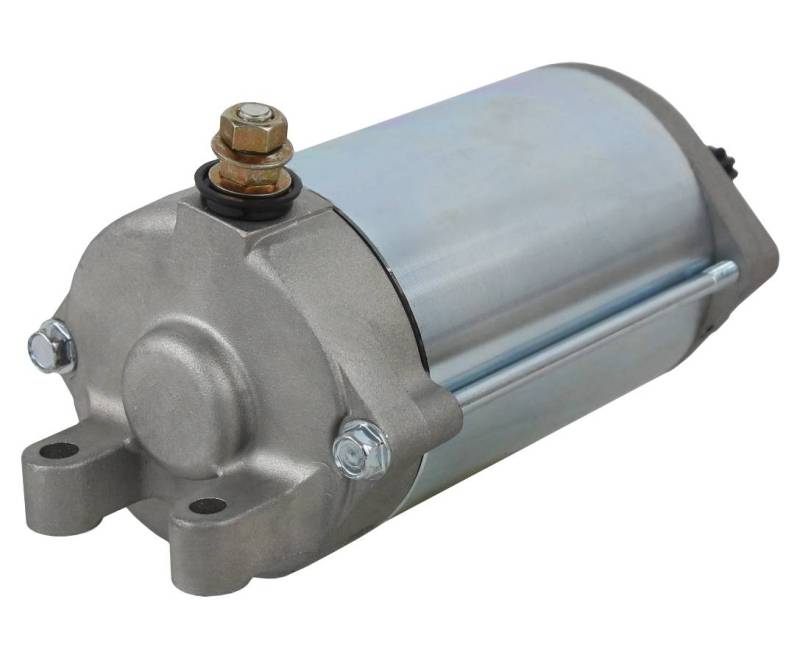

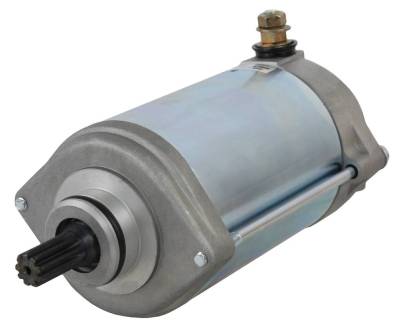

Starter Motor 12V Pmdd Ccw Compatible With 1999-2003 Suzuki Gsx1300r Hayabusa 1298Cc Inline-4 Dohc

OEM PART NUMBERS:
• Suzuki: 31100-24F00 / 3110024F00
• Suzuki: 31100-24F01 / 3110024F01
• 228000-8480 / 2280008480
• 228000-8481 / 2280008481

SPECIFICATIONS:
• Type: Starter Motor — PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: CCW (Counter-Clockwise)
• Teeth: 9
• Pinion OD: 11.5mm / 0.453"
• Mounting Holes: 6mm ID Unthreaded (x2)
• Note: Short Shaft
• Weight: 4.09 lbs / 1.86 kg
• Condition: New

SUZUKI HAYABUSA APPLICATIONS:
• GSX1300R Hayabusa 1298cc Inline-4 DOHC 16-Valve (1999-2003)
• Model Codes: X (1999), Y (2000), K1 (2001), K2 (2002), K3 (2003)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
