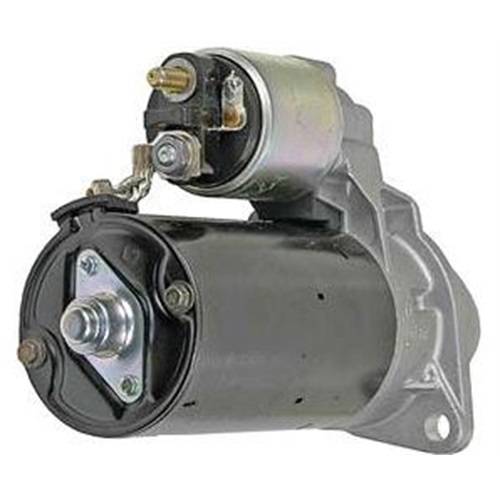

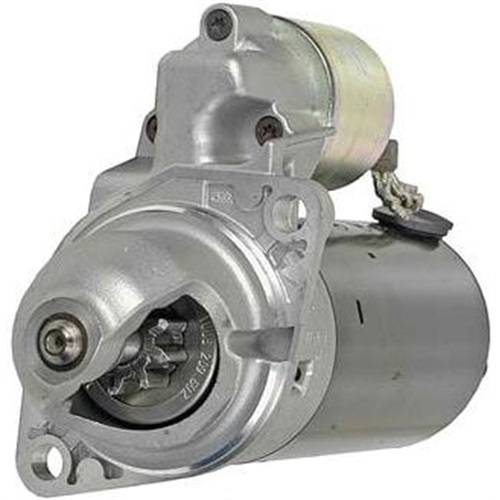

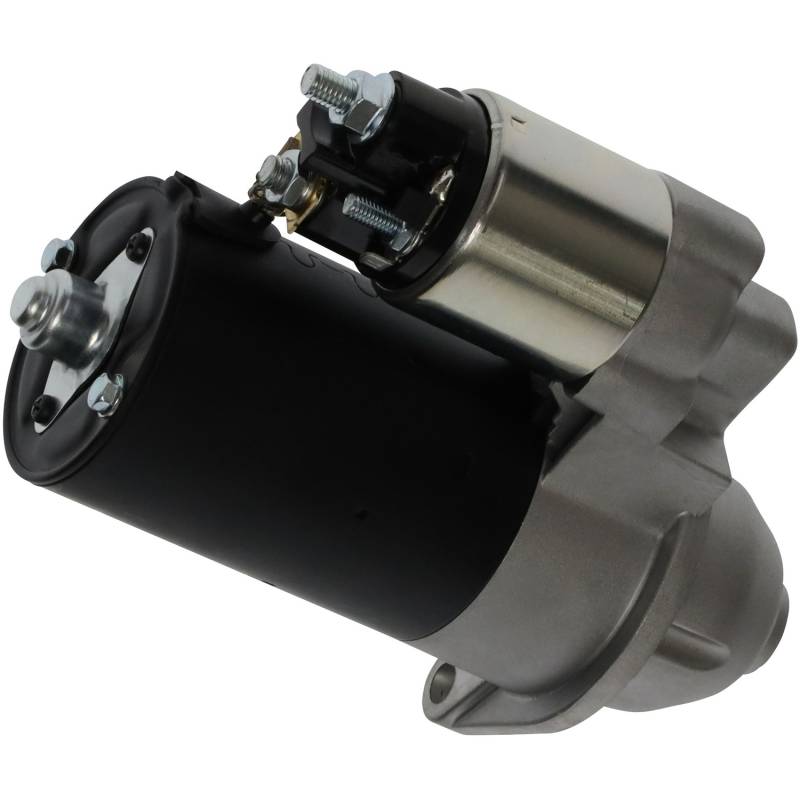

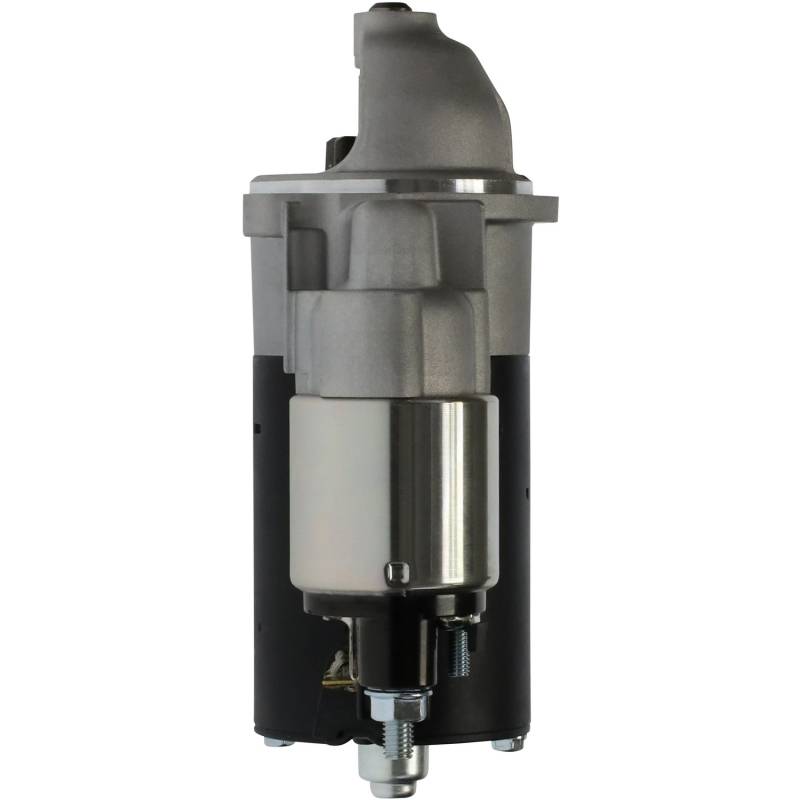

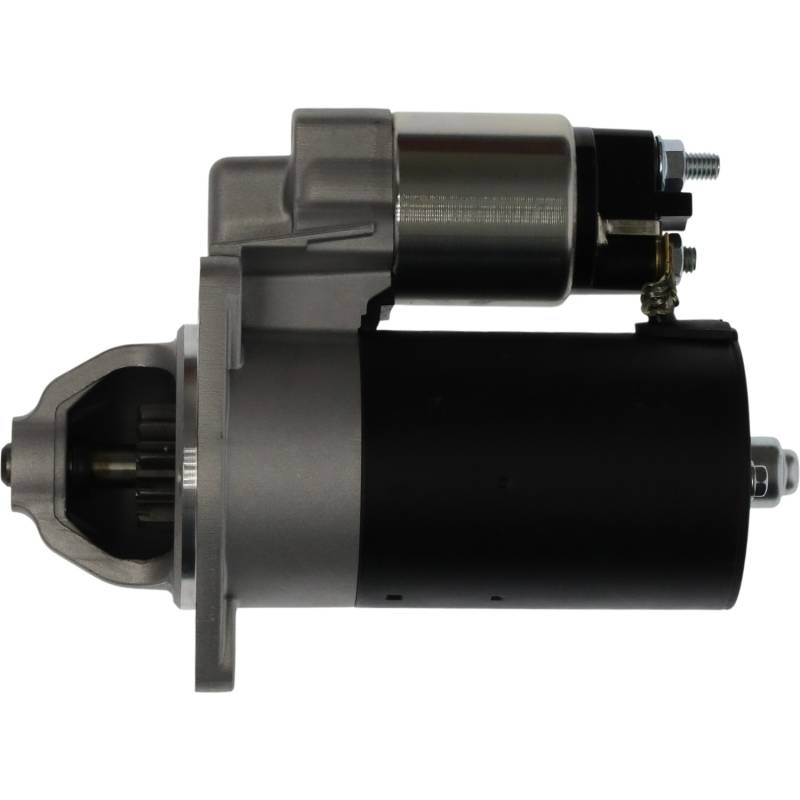

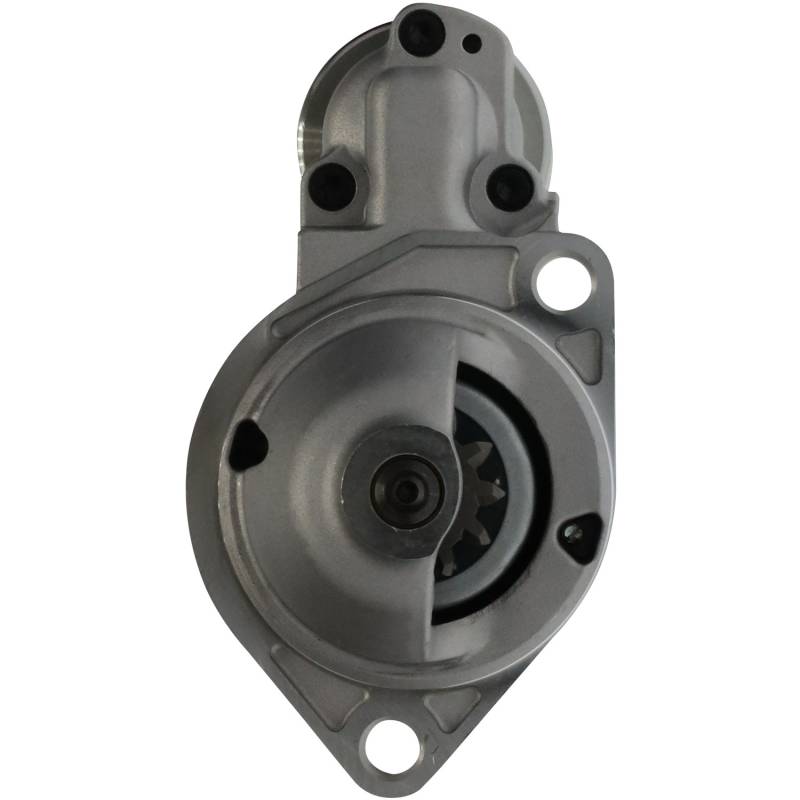

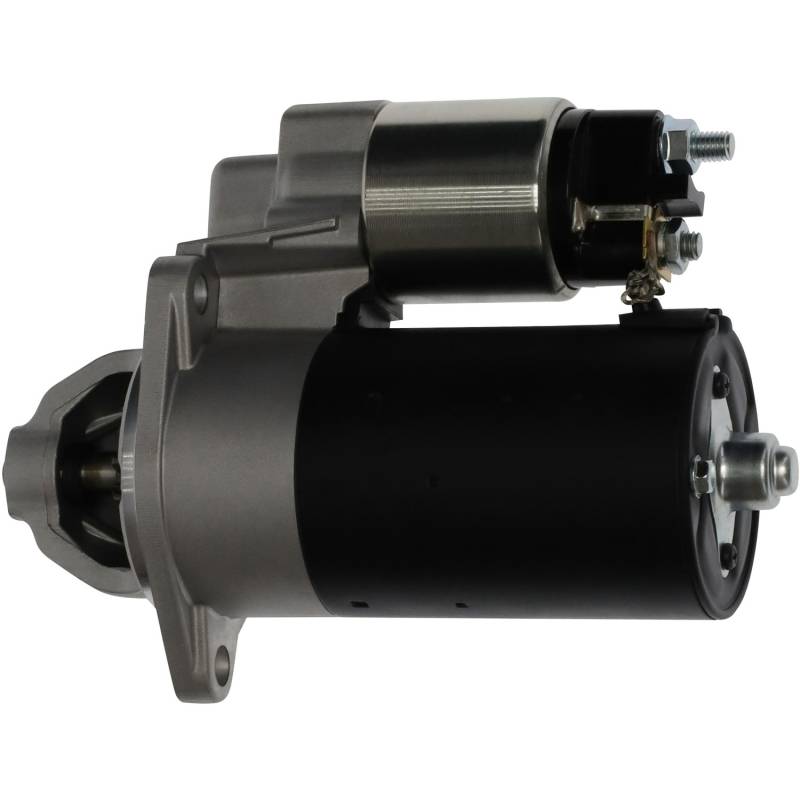

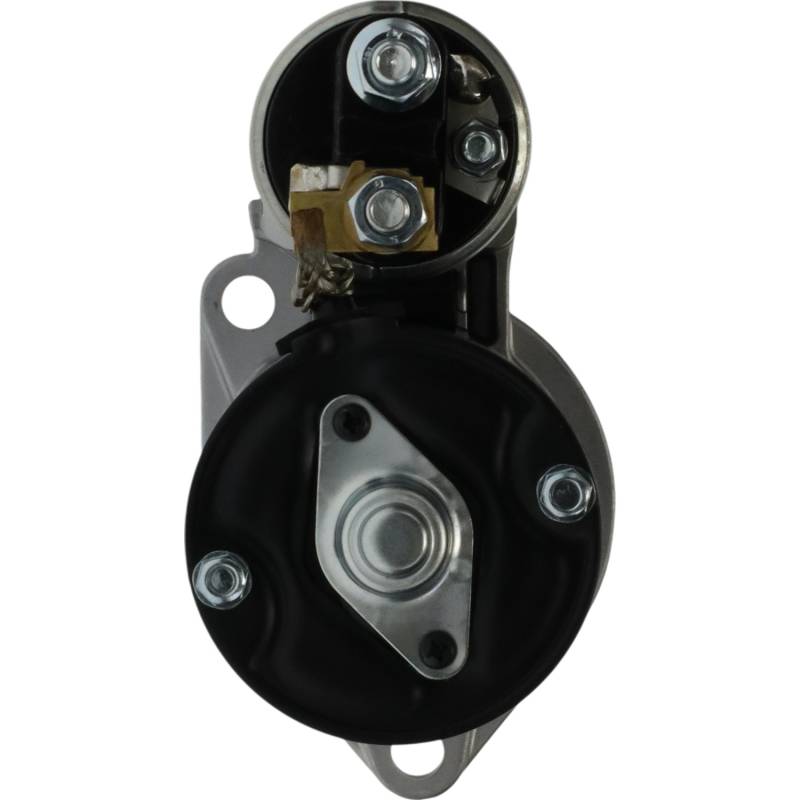

New Starter Compatible With Lombardini 15Ld 350 400 440 0-001-107-040 0001107040 0-001-107-046

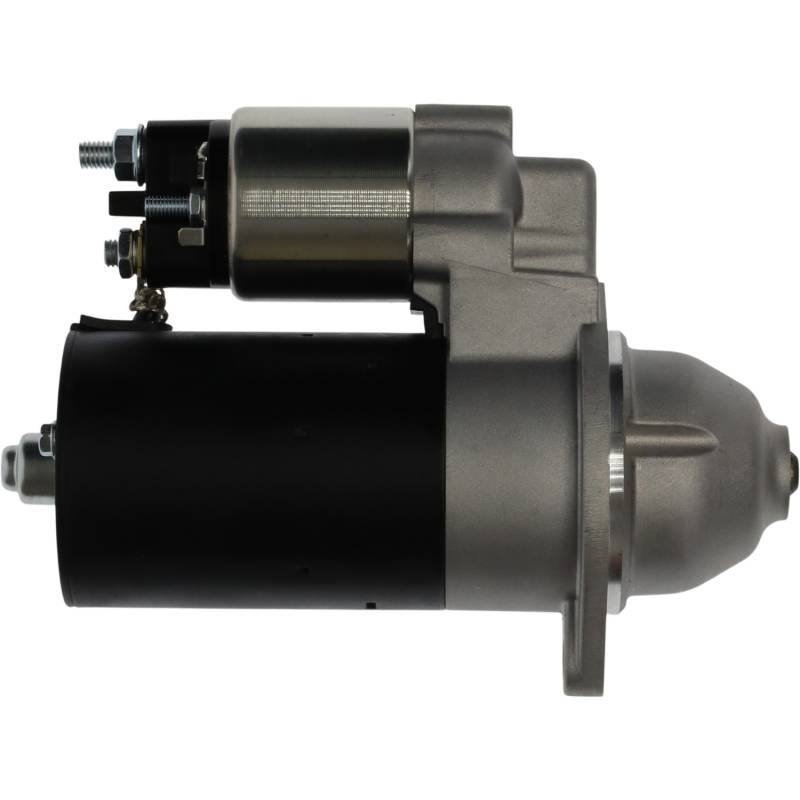

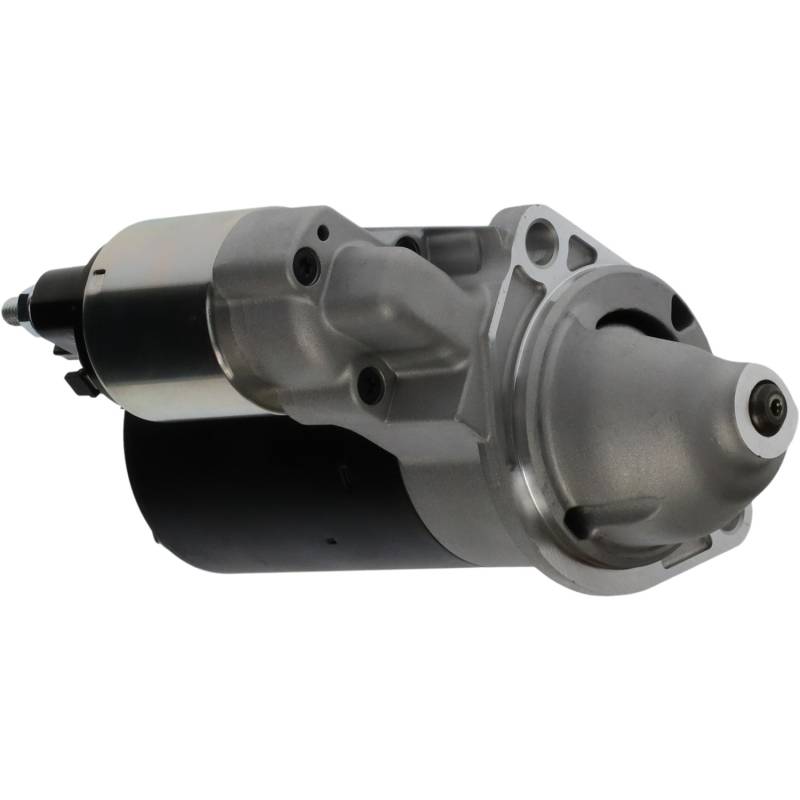

BOSCH PMGR 12 VOLT 1.1kW 11-TOOTH STARTER MOTOR — LOMBARDINI 15LD AND DAIHATSU HIJET APPLICATIONS:

LOMBARDINI 15LD SERIES DIESEL ENGINES:
• Lombardini 15LD-225 Single Cylinder Diesel Engine
• Lombardini 15LD-315 Single Cylinder Diesel Engine
• Lombardini 15LD-350 Single Cylinder Diesel Engine
• Lombardini 15LD-400 401cc Single Cylinder Diesel Engine (2000-2015)
• Lombardini 15LD-440 Single Cylinder Diesel Engine

DAIHATSU EUROPE — LOMBARDINI LDW12 DIESEL:
• Daihatsu Hijet Box S85 1.2 D LDW12 26kW Diesel (1996-1998)
• Daihatsu Hijet Pickup U60 1.2 D 27kW Diesel (1996-1998)

CONSTRUCTION AND COMPACTION MACHINES — LOMBARDINI PUBLISHED USES:
• Vibrating Plate Compactors, including Bomag plate compactors
• Compactor Rollers and Asphalt Cutters
• Mini Dumpers, Dumpers and Mini Excavators
• Concrete Mixers and Motor Compressors
• Aerial Platforms and Motor Sweepers

AGRICULTURAL AND GROUNDCARE MACHINES:
• Two Wheel Tractors and Walk-Behind Tractors, including Pasquali
• Rotary Tillers, Rotary Hoes and Cultivators
• Motofalce Sickle Bar Mowers and Lawn Mowers
• General Farm Machinery

GENERATOR SETS, WELDERS AND OEM USERS:
• Generator Sets — SDMO, Himoinsa, Genelec and Francepower
• Engine Driven Welders and Refrigerating Units
• Bomag, Weber and Dimaco Compaction Equipment
• JCB and Guernet Equipment
• Microcars and Light Utility Vehicles

FITMENT NOTES:
• 12 VOLT, permanent magnet gear reduction, COUNTER CLOCKWISE rotation, 11-tooth pinion. A clockwise starter will not work
• Gear outside diameter 34.9mm, two 10.6mm unthreaded mounting ears
• Battery and motor studs are M8-1.25 threaded
• Weight 6.8 lbs / 3.09 kg
• Lombardini carries several numbers for this starter across the production run, including 58401760, 58402180 and the 5840xxx series. Bosch carries 0001107040, 0001107046, 0001107102, 0001107107 and 0001108168. Match the number stamped on your original starter where possible
• MARELLI AND PIAGGIO NUMBERS APPLY TO THE SAME UNIT. Marelli built this starter for Lombardini and Piaggio fitted the engine to light commercial vehicles, which is why MSN2011 and 56514R cross to the Bosch numbers
• POWER RATING — published figures for this starter vary between 1.1 kW and 1.4 kW across suppliers. The 1.1 kW figure is the most widely stated original specification. Confirm against your original unit if the rating matters to your installation
• The applications above are taken from Lombardini distributor application data for the 15LD 350 and 15LD 440, which lists farm machinery, two wheel tractors, tillers, lawn mowers, concrete mixers, dumpers, mini dumpers, mini excavators, motor compressors, vibrating plates, compactor rollers, asphalt cutters, generators, refrigerating units, welders, motor sweepers, aerial platforms and microcars. Named OEM users include Bomag, JCB, SDMO, Himoinsa, Genelec, Weber, Guernet, Francepower and Dimaco
• IDENTIFY BY THE ENGINE AND THE STARTER NUMBER, NOT THE MACHINE. The 15LD is fitted to a very wide range of machines by many manufacturers, and not every machine in these categories uses this starter
