OEM CROSS-REFERENCE PART NUMBERS — FORD:
• Ford: 2N-10000 / 2N10000
• Ford: 8N-10000 / 8N10000
• Ford: 8N-10000C / 8N10000C
• Ford: 9N-10000 / 9N10000
• Ford: 9N-10000C / 9N10000C
• Ford: 9N-10000B / 9N-10000-B / 9N10000B
• Ford: 9N-10002C / 9N-10002-C / 9N10002C
SPECIFICATIONS:

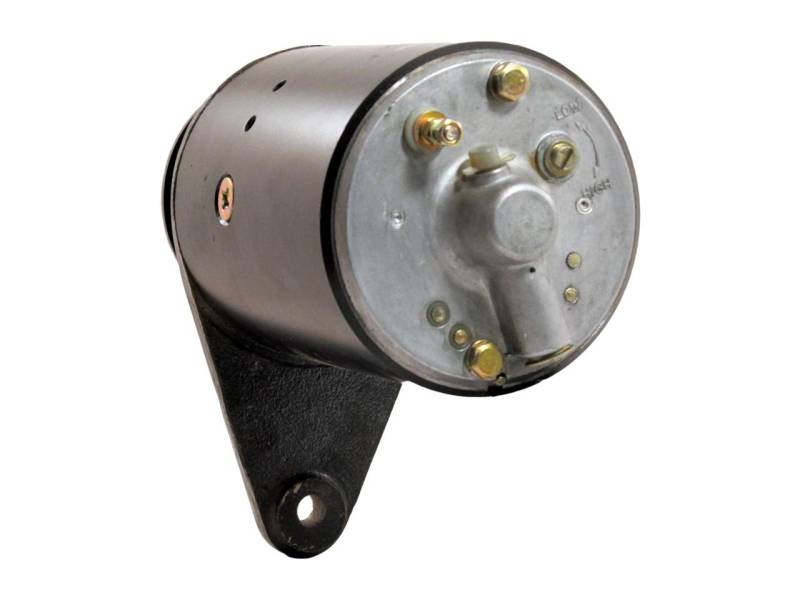

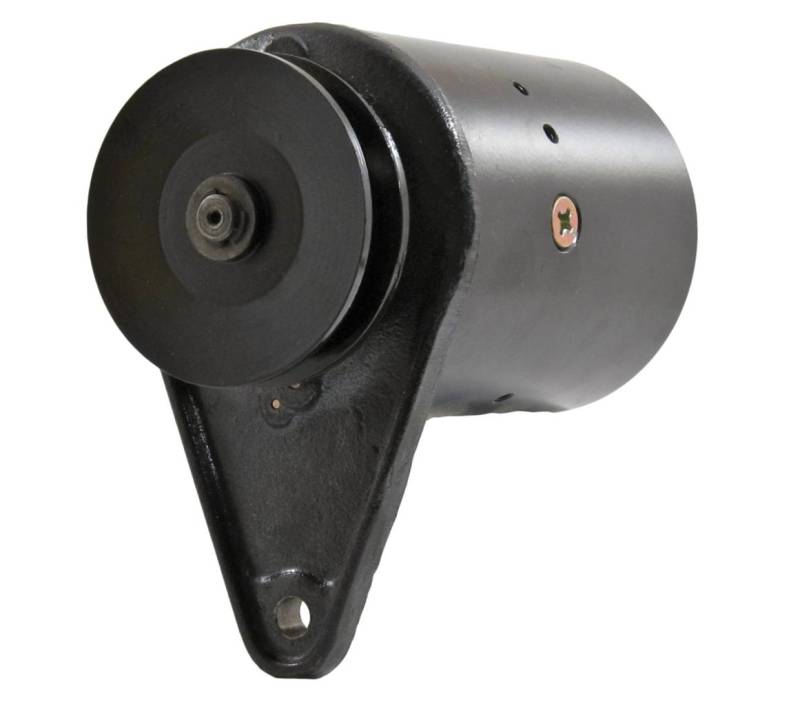

• Product Type: 6V Ford N-Series Tractor Generator (3-Brush DC, NOT a starter)
• OEM Manufacturer: Ford
• Voltage: 6 Volt
• Amperage: 12 Amp
• Rotation: Clockwise (CW)
• Generator Type: 3-Brush DC Generator
• Shaft Outside Diameter: 15mm
• Shaft: Threaded
• Terminal 1 Size: 10-32 (single terminal)
• Overall Length: 214mm / 8.425"
• Field Housing OD: 115.2mm / 4.535" (4 1/2" OD)
• Field Case Length: 5 1/2" (140mm) approximate
• Mounting: Bottom mount on DE (Drive End) frame
• Pulley: 1-Groove
• Weight: 18 lbs
• Engine: Ford 28HP 4-Cylinder Gasoline (119.7ci L-head)
• Application: Ford 2N (1942-1947) / 9N (1939-1943) / 8N (1947-1948) Farm Tractors with 6V Electrical System
• Condition: New
APPLICATION SUMMARY — FORD N-SERIES FARM TRACTORS 1939-1948 (6V ONLY):
• 1939-1943 Ford 9N — Original N-Series with Ferguson System 3-point hitch
• 1942-1947 Ford 2N — Wartime production model
• 1947-1948 Ford 8N — Early 8N with 6V electrical system (NOT 1949-1952 12V models)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
