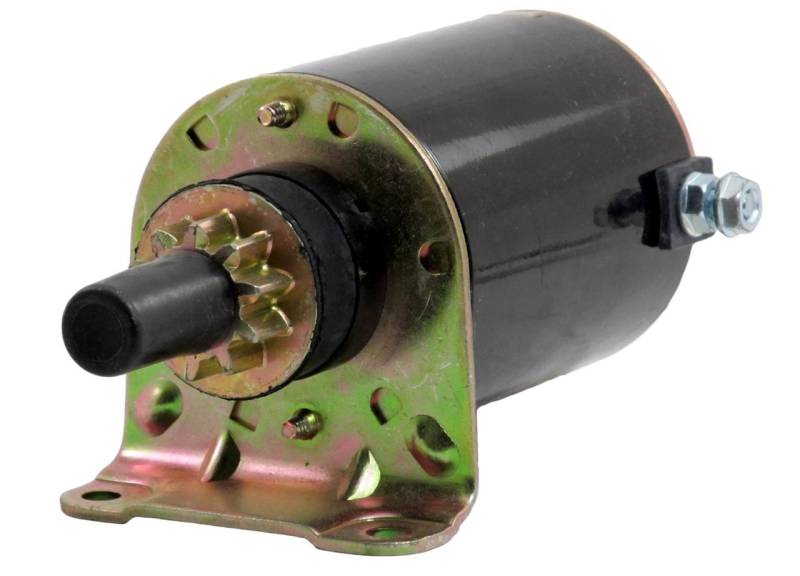

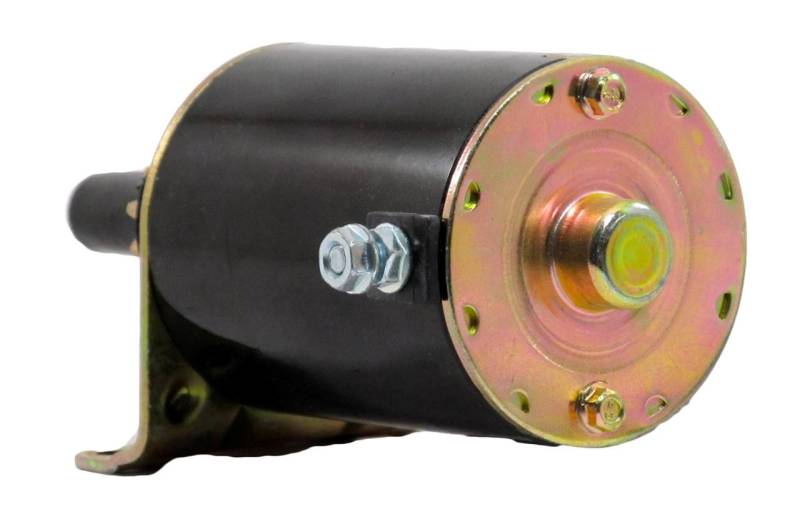

New 12V Ccw Pmdd Starter 10-Tooth Compatible With 2006-2014 John Deere X300 X300r X304 Mower With

KAWASAKI FH-SERIES V-TWIN GASOLINE ENGINES (PRIMARY ENGINES — OLD STYLE):
• Kawasaki FH381V — 12.5HP V-Twin OHV Vertical-Shaft Engine (Up to Ser# A54352 = OLD STYLE)
• Kawasaki FH430V — 14HP V-Twin OHV Vertical-Shaft Engine (Up to Ser# C79577 = OLD STYLE)
• Kawasaki FH480V — 15.5HP V-Twin OHV Vertical-Shaft Engine (Up to Ser# A13621 = OLD STYLE)
• Kawasaki FH491V — 15HP V-Twin OHV Engine (Up to Ser# B76766 = OLD STYLE)
• Kawasaki FH541V — 17HP V-Twin OHV Engine (Up to Ser# B10057 = OLD STYLE)
• Kawasaki FH580V — 18HP V-Twin OHV Engine (Up to Ser# B95244 = OLD STYLE)
• Kawasaki FH601V — 20HP V-Twin OHV Engine (Up to Ser# C37768 = OLD STYLE)
• Kawasaki FH641V — 22HP V-Twin OHV Engine (Up to Ser# B94147 = OLD STYLE)
• Kawasaki FH661V — 22HP V-Twin OHV Engine (Up to Ser# B81904 = OLD STYLE)
• Kawasaki FH680V — 23HP V-Twin OHV Engine (Up to Ser# C00797 = OLD STYLE)
• Kawasaki FH721V — 25HP V-Twin OHV Engine (Up to Ser# D02132 = OLD STYLE)

KAWASAKI FH-SERIES V-TWIN DIESEL ENGINES (OLD STYLE):
• Kawasaki FH601D — 20HP V-Twin Diesel Engine (Up to Ser# A10713 = OLD STYLE)
• Kawasaki FH641D — 22HP V-Twin Diesel Engine (Up to Ser# A02246 = OLD STYLE)
• Kawasaki FH680D — 23HP V-Twin Diesel Engine (Up to Ser# A35099 = OLD STYLE)
• Kawasaki FH721D — 25HP V-Twin Diesel Engine (Up to Ser# A55743 = OLD STYLE)
• Kawasaki FH770D — 27HP V-Twin Diesel Engine (Up to Ser# A16916 = OLD STYLE)

JOHN DEERE X-SERIES RIDING MOWERS (2006-2014):
• 2006-2014 John Deere X300 Riding Mower with Kawasaki 17HP V-Twin Engine
• 2007-2014 John Deere X300R Riding Mower with Kawasaki 17HP V-Twin Engine
• 2006-2014 John Deere X304 Riding Mower with Kawasaki 17HP V-Twin Engine
• John Deere X320 Riding Mower with Kawasaki V-Twin Engine
• John Deere X324 Riding Mower with Kawasaki V-Twin Engine
• John Deere X360 Riding Mower with Kawasaki V-Twin Engine

JOHN DEERE Z-SERIES ZERO-TURN MOWERS:
• John Deere Z445 EZtrak Zero-Turn Mower with Kawasaki V-Twin Engine
• John Deere Z465 EZtrak Zero-Turn Mower with Kawasaki V-Twin Engine

KAWASAKI FH-SERIES ENGINE CONTEXT:
• The Kawasaki FH-series V-Twin and diesel engines are commercial-grade workhorse engines spanning 12.5HP-27HP
• FH = Kawasaki's heavy-duty commercial vertical-shaft V-Twin engine series
• V suffix = Gasoline V-Twin variant / D suffix = Diesel V-Twin variant
• Used widely in commercial mowers, riding tractors, zero-turn mowers, and industrial equipment
• OEM-supplied to John Deere, Toro, Cub Cadet, Hustler, Bad Boy, Scag, Wright, and many other equipment manufacturers
• Production era: primarily 1990s through 2014 with continued aftermarket support

CRITICAL FITMENT NOTE — OLD STYLE vs NEW STYLE SUPERSESSION:
• This is the OLD STYLE Kawasaki 21163-7007 starter with THICKER bracket
• Kawasaki superseded this to NEW STYLE 21163-7031 with thinner bracket
• When replacing the 21163-7007 OLD STYLE starter (thicker bracket), the original 16mm length bolts must be used
• If installing the NEW STYLE 21163-7031 in place of an OLD STYLE 21163-7007, the 16mm length bolts must be replaced by 14mm length bolts to avoid having the bolts pierce the crankcase
• Engine serial number breakpoints distinguish OLD STYLE vs NEW STYLE — verify your engine serial number before ordering

FITMENT NOTES — CRITICAL APPLICATION REQUIREMENTS:
• 12 VOLT SYSTEM REQUIRED
• Counterclockwise (CCW) rotation, 10-tooth pinion, 1.22" (31mm) gear OD
• PMDD (Permanent Magnet Direct Drive) starter — original Kawasaki / Johnson Electric design
• Field housing length: 3.81" / 97mm
• Mounting: 2 ears with UNUSUAL MIXED SIZES (Ear 1 = 8mm unthreaded, Ear 2 = 9mm unthreaded)
• Weight: 5.3 lbs (2.41 kg)
• OEM Manufacturer: Kawasaki / Johnson Electric
• Will NOT fit Kawasaki FB-series or FC-series single-cylinder engines (different starter family)
• Will NOT fit Kawasaki FX-series large-displacement V-Twin engines (different starter family)
• Will NOT fit Kawasaki FR-series 600/691/730 engines (different starter family)
• Will NOT fit Kawasaki engines AFTER serial number breakpoints (those use NEW STYLE 21163-7031 with thinner bracket — different mounting bolt requirements)
• Will NOT fit John Deere mowers with Briggs & Stratton, Kohler, or Honda engines (different starter families)
• Always verify your Kawasaki engine model AND engine serial number before ordering
